TCP/IP finger access controller system kit. Singer Door access control,32-bit ARM CPU , Finger reader support 1000pcs finger
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Fingerprint access control system introduction
- Wiegand Compnay Fingerprint access control system is a high-end networking access control systems,
- Different from fingerprinting machine, it consists a fingerprint reader, fingerprint scanner (OPtional ) , access controller and the software.
- Fingerprint reader instead of the card readers installed at the door, after users scan the fingerprint, door access controller release and door open
- Fingerprint scanner is placed on managers ‘ desktops, it regist the user’s fingerprints. If company have many workers, it’s better use fingerprint scanner,because it’s very quickly and conveniently to regist the fingerprint.
- Compared to a conventional fingerprint + access control, you need to install two software ,All these device user one software,so it’s very easy to
manage these device.
one door fingerprint access control have 4 sets of different kit :
set 1:
1pcs one door TCP access controller
1pcs finger reader
1pcs button
1pcs software
don’t include switch, like fellow photo.
set 2:
1pcs one door TCP access controller
2pcs finger reader
1pcs software
don’t include switch. like fellow photo.
set 3:
1pcs one door TCP access controller
1pcs finger reader
1pcs finger scanner
1pcs button
1pcs software
don’t include switch. like fellow photo.
set 4:
1pcs one door TCP access controller
2pcs finger reader
1pcs finger scanner
1pcs software
don’t include switch. like fellow photo.
********************************************************************************************************
Tcp IP one door controller parameters:
- Name: single two-way TCP/IP network access controller
- Model: T01
- Management door: 1
- Reader number: 2
- Store registration card: 20,000
- Number of records that can be stored: 100,000
- Communications: TCP/IP
- Software: Chinese Simplified English issue
- Software supports database: Access and SQL
********************************************************************************************************
Fingerprint parameters:
- Size: 120mm*72mm*20mm
- Fingerprint capacity: 1000
- Color: Silver
- Operating voltage: DC12V
- Working current: 300mA
- Fingerprint capture resolution: 450DPI
- Fingerprint search time: < 1 seconds
- Fingerprint recognition rate: < 0.001%
- Fingerprints rejected straightforward: < 1%
- Working environment: proposal-20-50 degrees Celsius range,
- used in outdoor sunlight is not recommended environment
- Instructions: light
- Output format (must be connected with 8000 access controller,
- Fingerprint reader to check the door): international standard Wiegand 26bit/34bit
- Communication mode (must be connected to the computer, fingerprint
- communite: TCP/IP
********************************************************************************************************
Fingerprint scanner parameters: (option)
- Size: 120mm*72mm*20mm
- Color: Silver
- Working voltage: DC5V (USB powered)
- Working current: 100mA
- Fingerprint capture resolution: 450DPI
- Working environment: proposal-20-50 degrees Celsius range
- Instructions: light
- Communication mode (placed on the computer desktop, fingerprint): USB
********************************************************************************************************
Exit button parameters: (option)
- Silver aluminum alloy shell, safe and durable.
- Current: 3A, 36V DC
- Contact output: NC\COM
- Applied temperature: -10~+55 Degree14-131F)
- Applied humidity: 0~95% (relative humidity)
- Material: Aluminium alloy Item size: 86 * 50*20cm (L*D* H)
- Item weight: 62g
- Package size: 9 * 5 * 2cm
- Package weight: 65g
********************************************************************************************************

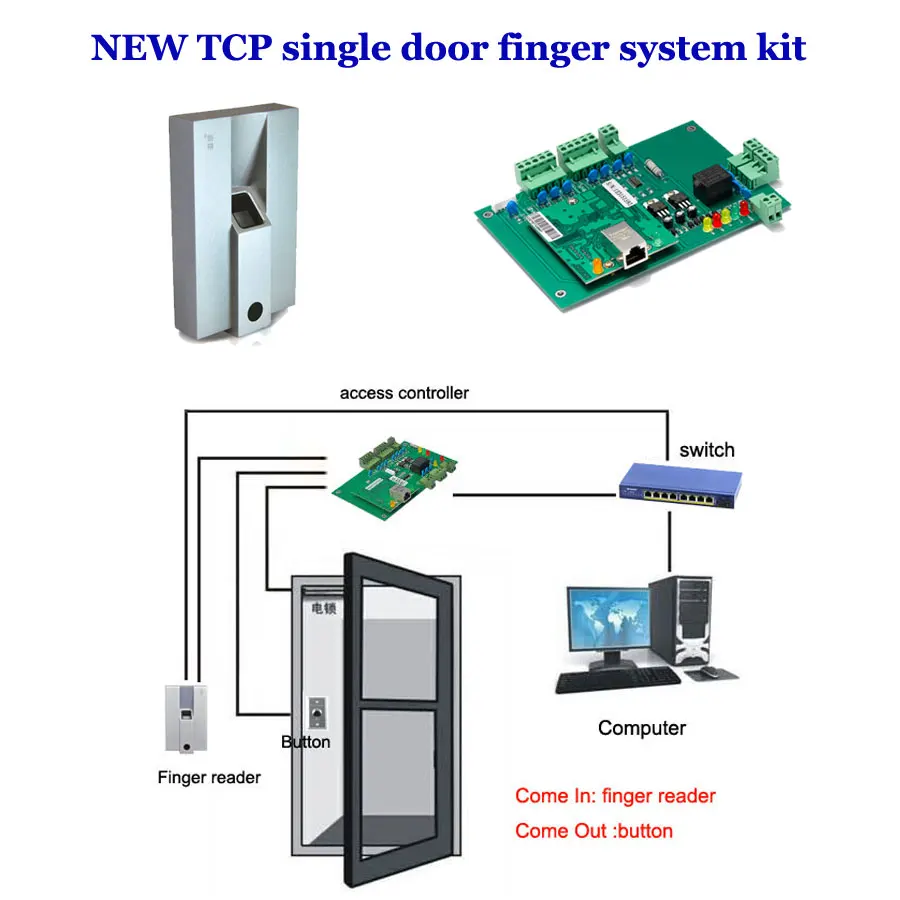

Finger reader connect to Access controller diagram:
********************************************************************************************************
Access controller software screenshot:
********************************************************************************************************
product photos:
