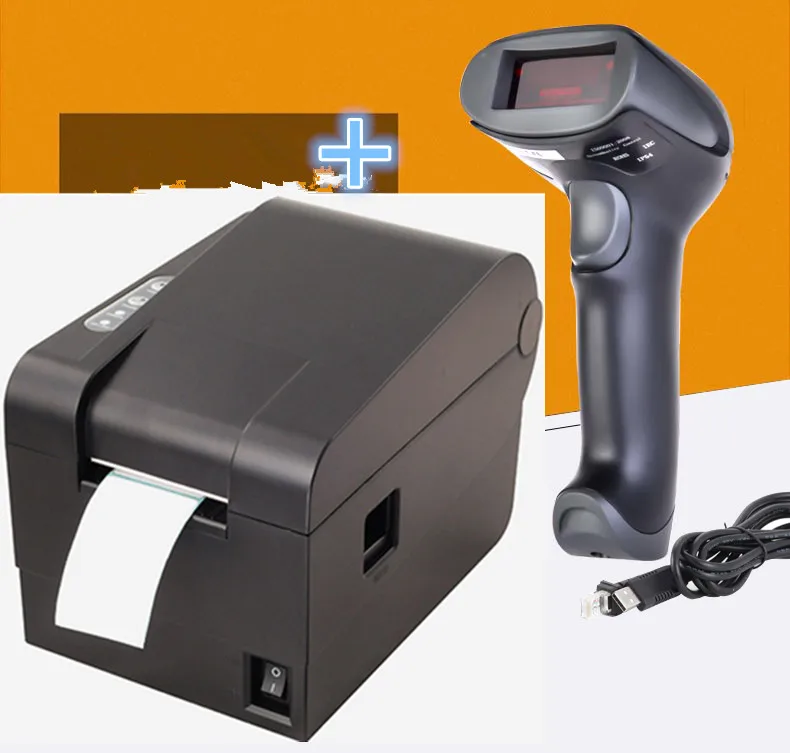

1 cable bar code scanner+XP-235B clothing tag 58mm Thermal barcode printer sticker printer Qr code the non-drying label printer

Fashion modeling The best Top of the material USB interface Durable print head Cover open button Power button Clearly labeled Detailed parameters Usage: 1. Open the lid 2. Place a roll of paper placed in the specified location 3. move the paddle Move to the the left, fixed 4. Pull out A small piece of label paper , Card slot Move to the left Carry out start printing support A variety of print formats You can edit directly with WORD Or a variety templates LOGO and fonts Support 60mm and 20mm thermal label paper Product parameters:

Print method: Direct thermal line

Resolution: 203DPI

Print speed :Maximum 127mm / s; ordinary 101mm / s

Memory: DRAM: 4M FLASH: 4M

Communication Interface: USB interfaces

Barcode character images: CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13 +2, EAN13 +5, EAN8, EAN8 +2, EAN8 +5, CODABAR, POSTNET, UPC-A, UPCA +2, UPCA +5, UPC-E, UPCE +2, UPC-E +5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14.

Graphics: monochrome PCX, BMP and other image files can be downloaded to FLASH, DRAM

Paper Type: thermal roll paper, self-adhesive paper.

Media amplitude: 20mm-60mm

Roll diameter: 80mm maximum

Roll Neijing: minimum 25mm

The paper: tear off or peel

Input Buffer: 1024K bytes

NV FLASH 256K bytes

Input: 12V DC, 4A

Dimensions: 220 (D) X 148 (W) X 150 (H) mm

Work environment :5-45 degrees

Storage temperature: -40-55 degrees

Dimensions 190 (D) x 135 (W) x 137 (H) mm

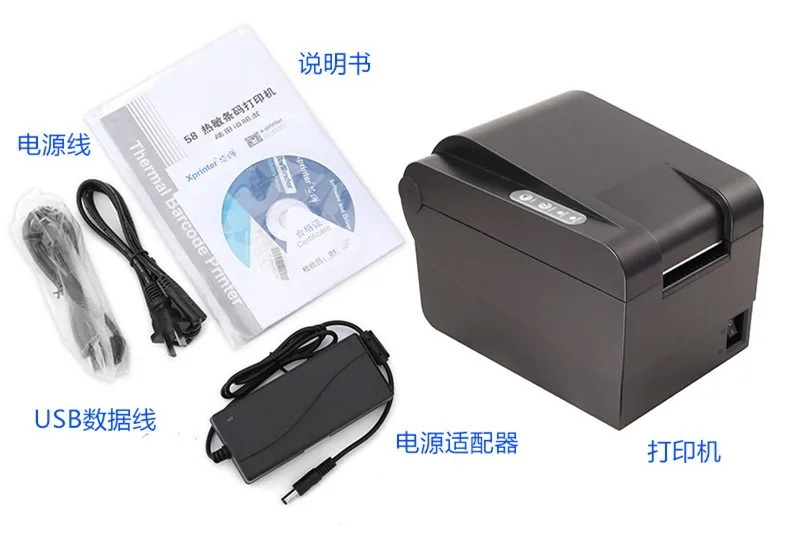

Packing List

1 x Xprinter XP-235B printer

1 x USB Data Cable

1 x Power line

1 x Instructions for use

1 x CD software

FAQ Q1: This printer can be used for win8 system? Answer:yes, at the time of installation will prompt you to select win7 or win8 Q1: The printer driver is in English? Answer:yes,Standard configuration including the driver CD,and including a bartender barcode edit software. Q3: The printer has the Bluetooth function? Answer:No, is connected to the computer through the USB data line Q4: Whether the standard configuration includes thermal label paper? Answer:No,if you want order thermal label paper. Ports: USB interface Usage:

1. Open the lid

2. Place a roll of paper placed in the specified location

3. move the paddle Move to the the left, fixed

4. Pull out A small piece of label paper , Card slot Move to the left

Don’t need carbon belt, do not need the cartridge, do not need to ink

Only need consumables: label paper
