1″ DC12V 2 wires 3 way electric valve T type 2 wires manual override available for water heating HVAC air conditional
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |

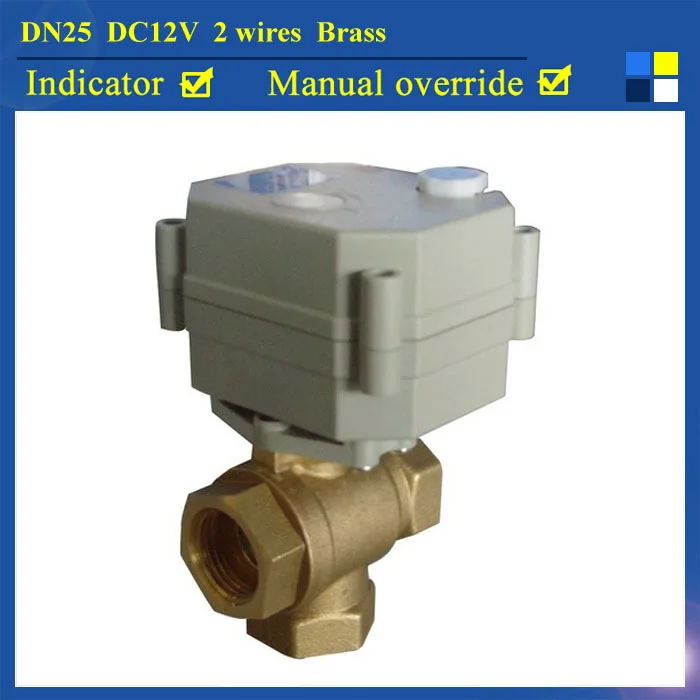

3 way electric valve DC12V NPT/BSP 1” T type 2 wires manual override
available for water heating HVAC air conditional
Notice:
1).Pls tell me the Voltage you need when place an order.(Such You need DC12V)
2). Factory directly sales,we need about 3-5 business day for production! 3). If you choice China Post Air Mail for shipping, we can’t promise the delivery time.
Applications:
HVAC
Fan coil
Central Air conditional System
Water Heter
solor Water heating
Water treatment
water automatic control Equipment
Replacing solenoid valve,particularly when solenoid cannot work reliably
WIRING DIAGRAMS: Description: Product size: BSP/NPT 1″, DN25 Valve Type: 3 way T type Valve Body Material: Brass Working Voltage: DC12V Open/close Time: 5 sec Wiring Control Methods: CR2 01; Maximum Working Pressure: 1.0MPa Circulation Medium: Fluid, Air Working Current: 500MA Life time: 70,000 times Actuator Material: Engineering Plastics Sealing Material: EPDM & PTFE Actuator Rotation: 90° Max. Torque Force: 2 N.M Cable Length: 0.5m Environment Temperature:-15°~50° Liquid Temperature: 0°~90° Manual Override:Yes Position Indicator: Yes Protection Class: IP67 Demention Drawing:
Please check the demension before you place the order, the “d1” is 24mm, and the “w1” is 8mm.
