10 sheets* 275mm x 200mm High Temperature 3D PCB Printer Anti-heat Polyimide Printed Tape

10 sheets* 275mm x 200mm High Temperature 3D PCB Printer Anti-heat Polyimide Printed Tape

Application Guide

1. Wear latex, nitrile, or similar gloves during application to protect your skin from chemicals and to prevent fingerprints and grease from sticking between the tape and the build plate. 2. A squeegee or flat, semi-flexible card, like a credit card, is essential for applying Polyimide tape well. If you are using a card, ensure the edges are not too sharp, or it may cut into the Polyimide tape. 3. Remove any current Polyimide tape film or other film coating from your printer’s build plate, and then clean the plate thoroughly to remove any adhesive residue and fingerprints. 4. Partially peel the plastic backing away from a new sheet of Polyimide tape film. 5. Line up the exposed adhesive edge of the Polyimide tape film with one of the shorter edges of the build plate, leaving some overlap up to the thickness of the build plate to later fold over the edges of the build plate 6. Using light pressure with a squeegee, press the first inch of the Polyimide tape film to the build plate 7. If there are any troubles with alignment or wrinkles, gently pull up the Polyimide tape film and reapply. 8. Once the first inch is applied correctly, use firm pressure with the squeegee to fully adhere that section to the plate 9. If there is too much excess, it can be trimmed at this point, still leaving some excess to fold over the edges, depending on the thickness of your build plate. Fold the remaining excess over the edges of the build plate sides, and use the squeegee to firmly adhere. Feature:

1. Frequency conversion power supply in electronic industry. also use as a perfect heat resistance tape on 3d printing, powder coating, etcs

2. Protection of Printed Circuit Boards during wave soldering 3. Insulation on Transformers, Motors and Coils, Fiber Optics Cables, Solar Panels. 4. High temperature masking 5. Excellent electrical insulation 6. Outstanding dimensional stability 7. Great thermal resistance 8. Leaves no defective gum when tear off 9. Discs are on a clear, slit back liner for easy removal

Specifications

Materials: polyimide tape

Color: Amber

Adhesion Type: Silicone

Total Thickness: 0.06mm

Adhesion to Steel: >6N/25mm

Tensile Strength: 115N/25mm

Elongation: >50 %

Dielectric Strength: 5,000 volts

Insulation Resistance: excellent

Temperature Resistance: 280°C

Resistance to acids, oils, solvents: Excellent

Length: 275mm

Width: 200mm

Package Contents of polyimide tape

• 100% Brand NEW
• 10 sheets x 275mm*200mm x 0.06mm polyimide tape

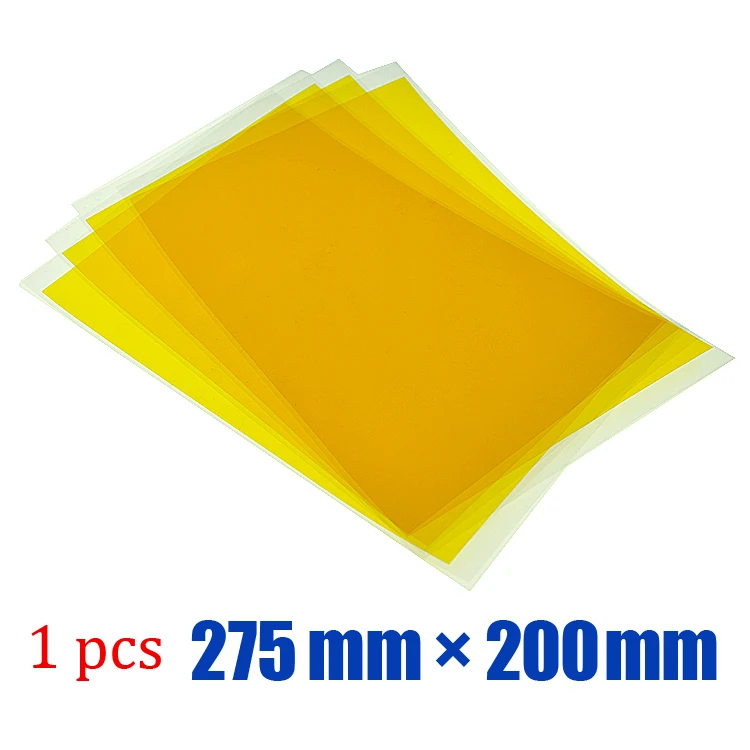

Picture of polyimide tape
