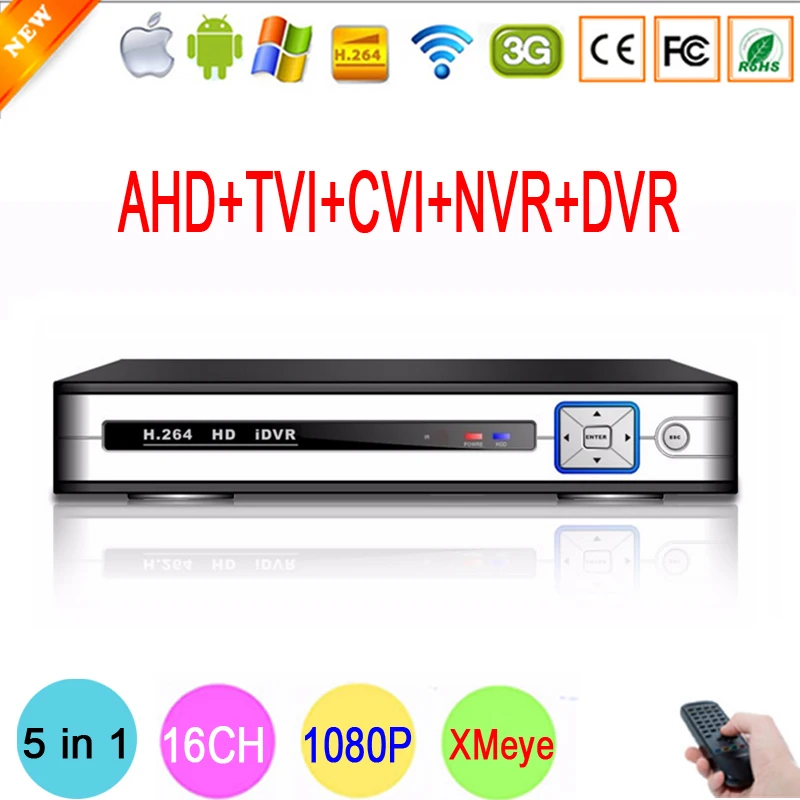

1080P 2MP Surveillance Camera Hi3521A Silver White Color 16 Channel 16CH 5 in 1 Hybrid TVI NVR AHD CCTV DVR Free shipping
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |
- analog:16*1080N;8*1080N;
- hybrid:8*1080N(analog)+8*960P(network)
- Network only:8*1080P;16*960P;4*3M;4*5
Q: What is 1080N AHD-NH DVR?
A:
- 1080N AHD-NH Coaxial DVR is new format AHD DVR;
- Resolution is 960*1080;
- Support 2 million pixels(1080P/AHD-H),1.3 million pixels(960P/AHD-M), 1 million(720P/AHD-M) pixels AHD/TVI/CVI Camera; Analog Camera(960H) and IP Cmera(2mp/3mp/5mp).
Q: What is 5-in-1 function? A: 5-in-1 means that support AHD(AHD Camera),TVI(TVI Camera),CVI(CVI Camera),DVR(analog) and NVR(IP Camera).
16CH 5-in-1 DVR Screenshots:
16CH 5-in-1 DVR Menu:
16CH 5-in-1 DVR Singal:
16CH 5-in-1 DVR Language:
16CH 5-in-1 DVR Channel Type:
AHD DVR Sensor features and parameters:
- Support VGA, HDMI full HD output simultaneously;
- Support ONVIF; access third party;
- Support AHD, TVI ,CVi HD video input;
- Support Web, CMS, center platform management software MYEYE, provide SDK development;
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
- Support various mobile monitoring (iPhone, Android);
- Remote Access, With DNS (ARSP),easy to monitor remotely
Model | TP-0516H | |
System | Main processor processor | Hi3521A |
Interface | Preview | 1/4/8/9/16 |
Video | Codec | H.264 |
Monitor quality | VGA,HDMI:HD | |
Encode ability | 16*1080N | |
Decode ability | 16*1080N | |
Onvif support | support | |
Multi-mode input | analog: 16*1080N;8*1080N; hybrid: 8*1080N(analog)+8*960P(network);Network only:8*1080P;16*960P;4*3M;4*5M |
|
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Local Playback | 16ch(local input mode) | |
Search mode | Search by time, calendar, event, channel | |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USBhard disk, USB burner, SATA burner | |
External Interface | Video output | 1ch VGA, 1ch HDMI |
Loop Vout | N/A | |
Audio I/O | 2(Can be extended to 6ch)/1 | |
Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
Network interface | RJ45 10M/100M self-adaption | |
PTZ control | 1*RS485, Support kinds of PTZ protocols | |
USB | 2* USB 2.0 ports | |
HDD | 1*SATA ports (Max 6TB/per) | |
Wireless | 3G, WIFI (extend via USB) | |
General | Power supply | 12V/2A |
Power Consumption | <15W (without HDD) | |
Working environment | Temperature:0 degree – +55 degree Humidity:10%-90%,Atm:86kpa-106kpa | |
Dimension(mother board) | 235mm*90mm | |
Weight(mother board) | 279g |
- 1.Russian Federation:7-20 days By SPSR
- 2.Brazil:20-50 days Special Line_YW
- 3.Oceania and East Asia, Southeast Asia, South Asia, Central Asia:we will choose China Post(EUB) , Singapore Post or Sounthest ASian green for transport package, the delivery time about 7-30 days
- 4.North America, West Asia, Europe; we will choose Swiss Post,Swedish post,Netherlands Post or China post (EUB) for transport package, the delivery time about 7-25 days.
- 5.South America: China Post, Swiss Post, the delivery time about 20-50days
Friendly Reminder:
if you want us sent goods quickly that use DHL,UPS,FedEx,ARAMEX and so on.Please connect US by leave me a message in Aliexpress.We will calculate extra shipping Cost for you and adjust price for your order,Thanks!
Notice:
If you are come from Russia (please click the following button,Thanks)
Now we will sent a USB LED Light as a free gift for each order about this product,Thanks!(the begin time is Thursday 15/9/2016 )
