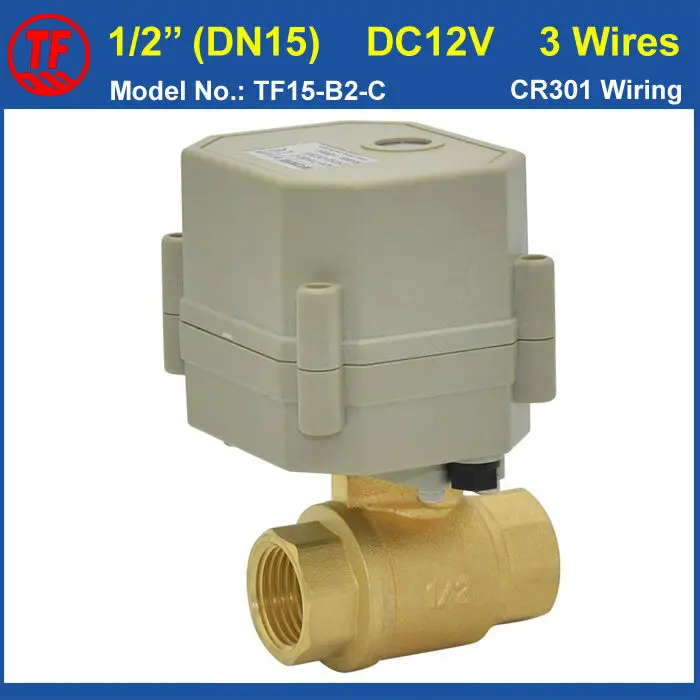

1/2” (DN15) Electric Ball Valve DC12V 3 Wires BSP Or NPT Thread 1.0Mpa For HVAC Heating Water Control Systems
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Welcome to Our Store!
******************************************************************************************
1, Factory directly sales. We need 3-5 days for production.
2, Reply buyer’s questions within 8-24 hours.
3, 100% Chinese brand new and 1 year quality warranty.
|
Model No.: TF15-B2-C |
Brand: TF |
|
Valve Size: DN15 (1/2”) |
Voltage: DC12V |
|
On/Off Time: 5 Sec |
Pressure: Max 1.0Mpa |
|
Control Wiring: CR301 Wiring (3 Wires) |
|
***************************************************************************************
WIRING DIAGRAMS:
*************************************************************************************** Description: Product size: BSP/NPT 1/2″, DN15 Valve Body Material: Brass Working Voltage: DC12V Open/close Time: 5 Sec Wiring Control Methods: CR3 01 Maximum Working Pressure: 1.0MPa Circulation Medium: Fluid, Air Working Current: Less Than 500mA Life time: 100,000 times Actuator Material: Engineering Plastics Sealing Material: EPDM & PTFE Actuator Rotation: 90° Max. Torque Force: 2 N.M Cable Length: 0.5m Environment Temperature:-15°~50° Liquid Temperature: 0°~95° Manual Override:No Indicator: Yes Protection Class: IP67 *************************************************************************************** Demention Drawing:
***************************************************************************************
Applications:
HVAC
Fan coil
Central Air conditional System
Water Heter
solor Water heating
Water treatment
water automatic control Equipment
Replacing solenoid valve,particularly when solenoid cannot work reliably
***************************************************************************************
Product Photos:
Valve Close Position:
Valve Open Position:
