16CH 1080P HD DVR Kit 1080N CCTV System 16CH 1.3MP 960P Bullet AHD Camera Outdoor Easy Access,WIFI,CMS,Mobile P2P View
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |
USD 618.98/pieceUSD 539.98/pieceUSD 535.98/pieceUSD 615.98/pieceUSD 536.88/pieceUSD 536.98/pieceUSD 759.88/pieceUSD 679.88/piece
- 1 X 16CH AHD-NH 1080N DVR NVR HVR 3 IN 1 Network Digital Video Recorder
- 16 x AHD 960P 1.3MP 1/3″ inch indoor outdoor IR Day Night vision waterproof cameras
- 16 X 65feet(20m) cctv video cable for camera
- 4 x 12V/3000mA power adapter for cameras
- 1 x 12V/2000mA power adapter for DVR
- 4 X 1 to 4 power splitter Cable
- 1 X USB Mouse for DVR
- 1 X Software CD for DVR
- 1 X remote control for DVR
- Hard Disk(optional)!!!!!
- AHD (Analog High Definition) is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).
- In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.
- This AHD DVR has 16 channels and is a fully integrated DVR that records in real time. A remote control and mouse are included for easy setup and operation. With features like network access, VGA video output, HDMI 1080p output.and USB2.0 backup, you will find this DVR perfect for your home or small business.
- These bullet cameras are designed for both outdoor and indoor, and can be easily mounted.
- Installation is easy and hassle free – just plug and play.
- Very reliable operation, long operating life, and premium performance at an affordable price.
It is very easy to install, you can do it by yourself.
NOTICE: This camera must work with AHD DVR. thank you .
Best choice for project reconstruction!!You can upgrade an existing analog security system
to 1.0MP/1.3MP/HD camera system without changing cable routes.
1) Applying high performance sensor, the image is clear and delicate
2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion
3) Analog HD 960P @AHD video output
4) Transmission distance up to 500 meters
5) Support ultra low illumination
6) Support automatic electronic shutter function, adapting different monitoring environment
7) IR distance : 35 meters
8) Camera lens choices : 3.6mm/6mm(3.6mm defult)
- Day & Night Monitoring with Built-in IR-Cut filter
- Wide View angle
see wider viewing angles
AHD DVR /NVR /HVR 3 in 1 (support ahd camera or analog camera or ip camera input or Hybrid input) 1080N AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras What is DVR /NVR /HVR 3 in 1? DVR:Digital Video Recorder. NVR:Network Video Recorder. HVR:High Definition / Hybrid Digital Video Recorder. This 3 in 1 DVR has mature technology of DVR as well as the high definition and network advantages of NVR. Save the huge cost when you want to upgrade the dvr system to be NVR!!! 720P or 1080P IP Cameras supported(ONVIF Protocal)to get high definition image
- AHD-NH / 1080N HD See Bigger Wider and Sharper
AHD offers you a high difinition quality resolution:1080X960,monitoring has never been easier or clearer.
Unlike expensive 1080P NVR or POE system,AHD has lower price but HD quality.You’ll get more than paid for.
P2P Cloud Access via Smart Handsets
1> Connect the Camera to DVR
2> Connect the DVR to Network
3> Scan QR for Mobile APP
4> Scan QR for S/N via APP and Enjoy Live Viewing
Just 4 Steps for Mobile Phone Viewing!!!!!!
Remote viewing Anywhere Anytime
Multiple Viewing Options(HDMI 1080P Output)
Instant Alert
Alert Functions&Intelligent Motion Detection
Support onvif protocol
Supports Multiple Languages
Multi-language menus option up to 28 kinds of Language..
Main chip | HI3531 | |
Systems | Operating system | Embedded LINUX operating system |
System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | |
Interface | Operation interface | 16bit real color GUI interface support mouse operation |
Display screen | 1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode) | |
Video | Video standard | PAL(625 line,50f/s);NTSC(525 line,60 f/s) |
Image encode | H.264(Main Profile); | |
Monitor quality | Monitor :AHD/960H/D1;VGA:High definition;HDMI:High definition | |
Playback quality | AHD/720P/960H/D1/HD1/CIF/QCIF | |
Recording | 16CH AHD-NH 1080N | |
Playback | 16CH AHD-NH 1080N | |
Multi-mode video input | Analog input:16*AHD 1080N | |
Hybrid input:8*AHD 1080N+8*960P | ||
Digital input:8*1080P/16*960P | ||
Motion detection | Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) | |
Audio | Audio compression | G711A |
Bidirectional talk | support | |
Record and playback | Record mode | manual>alarm>motion detection>timing |
Local playback | 1-16ch playback synchronously (take local analog input for example, other is depended on the selected channel mode) | |
Video search | Time, date, event, channel search | |
Storage and back up | Space occupation | Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; |
Audio:691.2M/day*channel | ||
Video storage | Local HDD, Network | |
Back up mode | Network backup, USB portable HDD, USB imprint, SATA imprint | |

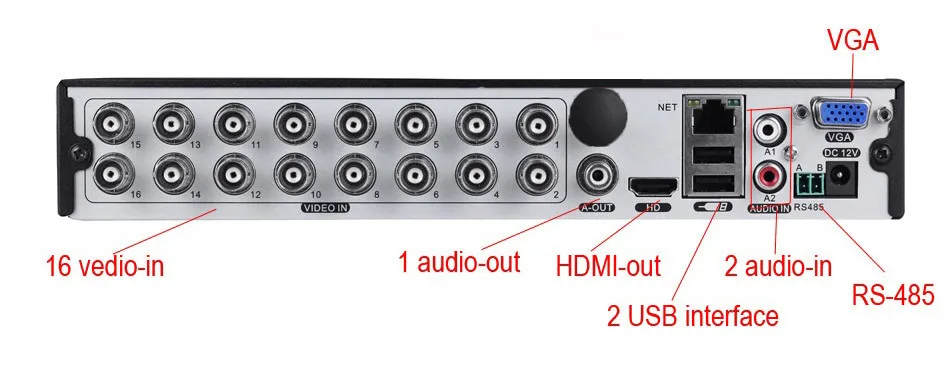

Interface | Video input | 16ch BNC(1.0Vp-p,75) |
Video output | 1ch VGA,1ch HDMI 1080P | |
Loop output | optional | |
Audio input | 2ch RCA(200-2800mV,30K) | |
Audio output | 1ch RCA(200-3000mV,5K) | |
Alarm input | N/A | |
Alarm output | N/A | |
Network port | RJ45 10M/100M self-adaptive Ethernet port | |
PTZ control | 1 RS485;support multi kinds of PTZ protocol | |
USB port | 2*USB2.0 | |
HDD port | 1*SATA ports(Each support 4,000GB) | |
Wireless port | 3G, WIFI( extension via USB port) | |
usb mouse | yes | |
remote control | yes | |
Other | Power | 12V/2A |
Consumption | <15W(not including HDD) | |
Operation Environment | -30C~+55C/ 10%-90%(H)/ 86kpa-106kpa(A) | |
Dimension | 255*235*45mm | |
Weight | 2KG without hard disk |
Video
Image sensor:1/3″inch CCD
Video quality:1.3mp /960/2500TVL
Lens:3.6mm lens/6mm lens(3.6mm defult)
Day/Night Mode:Color During day/switches to B&W at night
General
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Operating Temperature:-25°F~122°F / -32°C ~50°C
Operating Power:DC 12V
Weatherproof:no
Minimum Illumination: 0.0 Lux
Body Construction:Bullet with Built-in Wall Mount
Night Vision
Distance:Up to 35m
IR Cut Filter:yes
Number of IR Lens:36pcs
Note: If need us declare a low value of invoice for customs duty, pls leave us a message and tell us how much it’s better for your order, thanks for your cooperation.
We will send the goods out within 3 working days after your payment is verify by Aliexpress.
Currently, almost all products in our store are free shipping. Single camera via China post air mail as default. For DVR and security system, we support different logistics way to different countries. Please check the details on product description page.
Tracking No. will be provided within 2 business days after the shipment.
Buyers are responsible for additional COD charges, VAT, Brokerage Fees, Duty, or Customs Fees and Taxes.
If the products are detained by customs after the shipment has been left the seller’s country, the buyer is resonsible for clearance of the items.
We strive our best to provide you the most reliable, affordable way of shipping service. But sometimes it is highly depended on the shipping courier and local customs. If you do not receive your item on time, please contact us immediately for further assistance.
Warranty:
All merchandise we sell are in good quality and under strict examination before they are shipped out. We will try our best to avoid any quality problem.
We warrants this product against defects in workmanship and material for a period of 3 years from it’s original purchase date.
Any unit which proves defective during the warranty validation period will be repaired without charge for parts or replaced. The end user is responsible for all freight charges incurred to send the products to our repair center. The warranty does not cover any incidental, accidental or consequential damages arising from the use of. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party.
Return:
Item could be returned for refund or replacement within 30 days from the date you receive it. Returned merchandise must be unused, in original packaging and include all accessories. Original shipping costs are not refundable.
Before sending back any return items, please contact with us for a a Return Merchandise Authorization (RMA). Any products returned to seller without an RMA will be void, and we will be sent back to the buyer at his/her expense. Customer should be responsible for all charges of returning and reshipping.
Return tracking number will be helpful to this process.
Our tech support will deal with the repaired products upon receipt of your return parcel. Please feel free to contact us for any product or service issues
We appreciate your business greatly. If you are satisfiated with our products and service, please leave us a Positive feedback and 5 Stars rating. Your recognition will make us more confident to develop our business and serve you better.
If you are not satisfied by any reason, please feel free to contact us through AliExpress message center before leaving negative feedback. Our customer service and tech support will do our best to offer you a proper solution.
