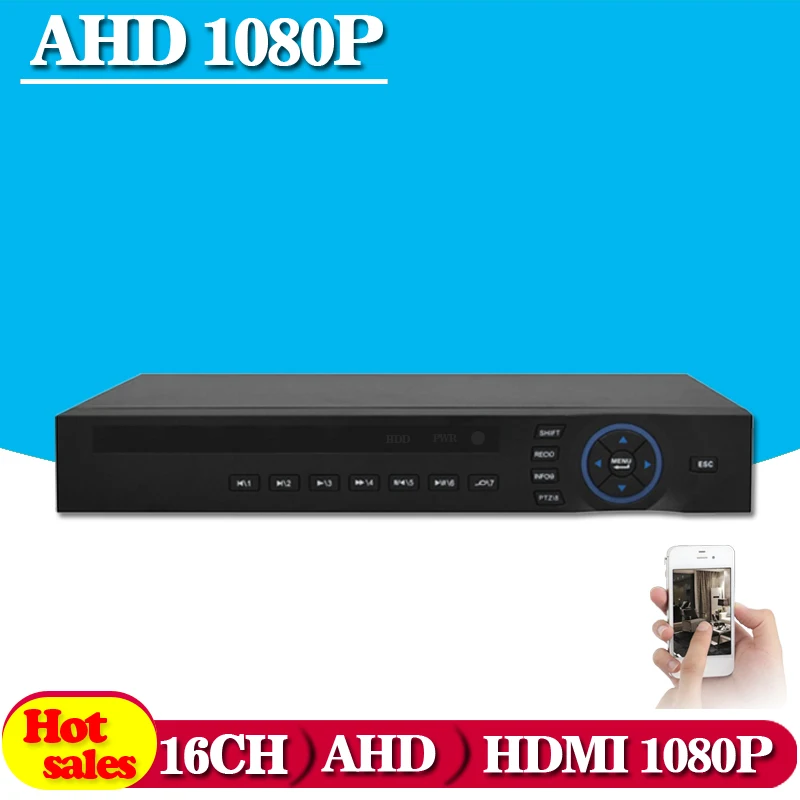

16ch AHD 1080N Full 960H 25fps recording 720P Completed 4CH Video DVR/NVR/HVR Security Camera System for ip camera HI3531 DVR
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |
USD 89.98/pieceUSD 119.88/pieceUSD 89.98/pieceUSD 73.98/pieceUSD 63.98/pieceUSD 108.88/pieceUSD 159.98/pieceUSD 90.88-108.88/piece
Product Display
Package included
- —– 1 X 16CH AHDNH 1080N H.264 Network hybrid DVR NVR HVR recorder
- —– 1 X USB Mouse for CCTV DVR
- —– 1 X Remote Controller for CCTV DVR
- —– 1 X Power Adapter
- —– 1 X Software CD
- (The Item no include Hard Disk)
Product Descriptions
- Can penetrate through all kinds of network via XM cloud service, one step to do remote control easily & conveniently without any complicated setting.
- Compression algorithm upgraded to H.264 Main Profile, the advanced space-time filter technique makes the code stream lowered at least 30%.
- Support main stream and extra steam encode synchronously. Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
- Support all kinds of mobile monitor ( iPhone, Windows Mobile, BlackBerry, Symbian, Android) support 3G & WIFI extension
- Support multi-browser (IE, Chrome, Firefox, Safari)
- Support 2 USB2.0 ports for operation of mouse control, back up, imprint and upgrade
- Support build-in DVR-RM with SATA port (optional) for imprint.
- Similar Vista interface, similar WINDOWS operating style, powerful right button menu function of mouse, make it easy for using.
- Support TV, VGA & HDMI output synchronously, VGA & HDMI HD 1080P display output , which make the traditional monitor display effect upside down
- Powerful net service support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP, Authority IP search, Alarm center etc, complete enclosure ( WEB, CMS, SDK) to easily achieve interconnection.
- Self enclosed with DNS function (ARSP) one-key to enable remote control, and support DNS of 3322,dyndns,oray,myq-see, etc
- Completed protective circuit, unique treble watchdog function, make device never crashed
- Twenty kinds of language ( English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc)
- Flexible display function support freely change boot interface
- HD iDVR combines the functions of DVR/ HVR/ NVR together, multi-mode input, 1080N AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras
support hybrid input of analog + network HD video, support all digital input of network HD video.
Application Diagram
- Application Diagram
- Multiple Video input solutions
the device provide multiple video input solutions as the table showing, you can choose one for your application
- Powerful Network Function (One-tough Online)
Do you still trouble withsetting IP address, DDNS Server, port forwarding, and so on…? you are now no trouble at all, this item has powerful network function, you just connect it into router and then you can remote view with the link www.xmeye.net with IE browser at anywhere anytime! you also can be easy remote view by mobile app “VMEyecloud” on iPhone and Android.
- Video Function
1.Record function
Fixed Video Playback
Support 1-16 channels playback simultaneously and can be enlarged fixed playback, drag the progress, operation and playback interface as simple movie player
Support Schedule, Motion detect, Normal to record
Time point, calendar, event, channel, information
2. High Capacity
The DVR can mount up to 2x 3.5″ 4TB hard drivers.
# item is without hard driver on sale, please contact us if you want to preinstall hard drive
3. Video Backup/ DVD-RW
The DVR does not only can record the video to the hard drive built-in, but also can Record and Backup video to the external USB devices as USB flash, USB removable hard drive and USB DVD-RW Rom through USB port directly
AHD 1080N DVR Details
- 1.Scan QR Code to down mobilephone remotely viewing software vMEyeCloud:
- 2.High Definition has came!!!
AHD-NH 1080N DVR Support ahd camera or analog camera or ip camera or Hybrid input
1080N AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras
3. 16ch AHD DVR System Support: DVR / NVR / HVR 3 IN 1 What is DVR /NVR /HVR 3 in 1? DVR:Digital Video Recorder. NVR:Network Video Recorder. HVR:High Definition / Hybrid Digital Video Recorder. This 3 in 1 DVR has mature technology of DVR as well as the high definition and network advantages of NVR. Save the huge cost when you want to upgrade the dvr system to be NVR!!! 720P or 960P or1080P IP Cameras supported(ONVIF Protocal)to get high definition image. DVR / HVR / NVR support Onvif 2.3 Multi-mode video input: DVR input: 16*AHD 1080N HVR input: 8*AHD 1080N(analog)+8*960P(digital) NVR input: 8CH*1080P(digital)/16*960P(digital) H.264 Main Profile Compression Algorithm Ideal; Video Input/Output: BNC 16CH / BAN 1CH / 1CH VGA / 1CH 1080P HDMI Output Audio Input/Output: RCA 2CH / RCA 1CH 16CH AHD 1080N real time Recording / 16CH AHD 1080N Playback Simultaneously; Supports iPhone /iPad, Blackberry, Android, Symbian and Windows mobile software compatibility;
Supports Windows XP, Vista,WIN 7 and Mac OS X 10.6 / 10.7 system compatibility
Supports Internet Explorer, Google Chrome, Mozilla Firefox and Safari internet browser compatibility;
Multi-language menus option up to 28 kinds of Language; (Russian, English, Farsi, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey,Romanian, Slovakia, Czech, Arabic, Swedish,etc…)
AHD 1080N DVR Specifications
Systems | Main processor | Technical grade embedded microprocessor |
Operating system | Embedded LINUX operating system | |
System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | |
Interface | Operation interface | 16bit real color GUI interface support mouse operation |
Display screen | 1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode) | |
Video | Video standard | PAL(625 line,50f/s);NTSC(525 line,60 f/s) |
Image encode | H.264(Main Profile); | |
Monitor quality | Monitor :AHD/960H/D1;VGA:High definition;HDMI:High definition | |
Playback quality | AHD 1080N/720P/960H/D1/HD1/CIF/QCIF | |
Recording | 16CH AHD-NH 1080N | |
Playback | 16CH AHD-NH 1080N | |
Multi-mode video input | Analog input:16*AHD 1080N | |
Hybrid input:8*AHD 1080N + 8*960P | ||
Digital input:8*1080P / 16*960P | ||
Motion detection | Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) | |
Audio | Audio compression | G711A |
Bidirectional talk | support | |
Record and playback | Record mode | manual>alarm>motion detection>timing |
Local playback | 1-16ch playback synchronously (take local analog input for example, other is depended on the selected channel mode) | |
Video search | Time, date, event, channel search | |
Storage and back up | Space occupation | Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; |
Audio:691.2M/day*channel | ||
Video storage | Local HDD, Network | |
Back up mode | Network backup, USB portable HDD, USB imprint, SATA imprint | |
Interface | Video input | 16ch BNC(1.0Vp-p,75) |
Video output | 1ch BNC(1.0Vp-p,75?),1ch VGA,1ch HDMI 1080P | |
Loop output | optional | |
Audio input | 2ch RCA(200-2800mV,30K) | |
Audio output | 1ch RCA(200-3000mV,5K) | |
Alarm input | N/A | |
Alarm output | N/A | |
Network port | RJ45 10M/100M self-adaptive Ethernet port | |
PTZ control | 1 RS485, 1 RS232;support multi kinds of PTZ protocol | |
USB port | 2*USB2.0 | |
HDD port | 2 SATA ports(Each support 4,000GB) | |
Wireless port | 3G, WIFI( extension via USB port) | |
Other | Power | 12V/4A |
Consumption | <15W(not including HDD) | |
Operation Environment | -30C~+55C/ 10%-90%(H)/ 86kpa-106kpa(A) | |
Dimension | 368*290*60mm | |
Weight | 4KG without hard disk |
AHD 1080N DVR Details
P2P Cloud Access via Smart Handsets
1> Connect the Camera to DVR
2> Connect the DVR to Network
3> Scan QR for Mobile APP
4> Scan QR for S/N via APP and Enjoy Live Viewing
Just 4 Steps for Mobile Phone Viewing!!!!!!
Remote viewing Anywhere Anytime
Multiple Viewing Options(HDMI 1080P Output)
Instant Alert
Alert Functions&Intelligent Motion Detection
Support onvif protocol
Supports Multiple Languages
Multi-language menus option up to 28 kinds of Language..
AHD-NH 1080N DVR Menu Details
Application Scene
