16CH CCTV System 960H HDMI DVR 16CH CCTV Security Camera System 1200tvl indoor Day Night IR Camera Kit Video Surveillance System
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |
USD 339.88/pieceUSD 339.88/pieceUSD 419.98/pieceUSD 359.88/pieceUSD 380.88/pieceUSD 309.88/pieceUSD 469.88/pieceUSD 469.88/piece
The cctv system need another extra hard disk for the memory,there is a link of 1TB SATA 3.5 HDD.
7200RPM-6GB-s-Sata-HDD/32458788030.html?spm=2114.12010108.1000023.2.E0QMRM

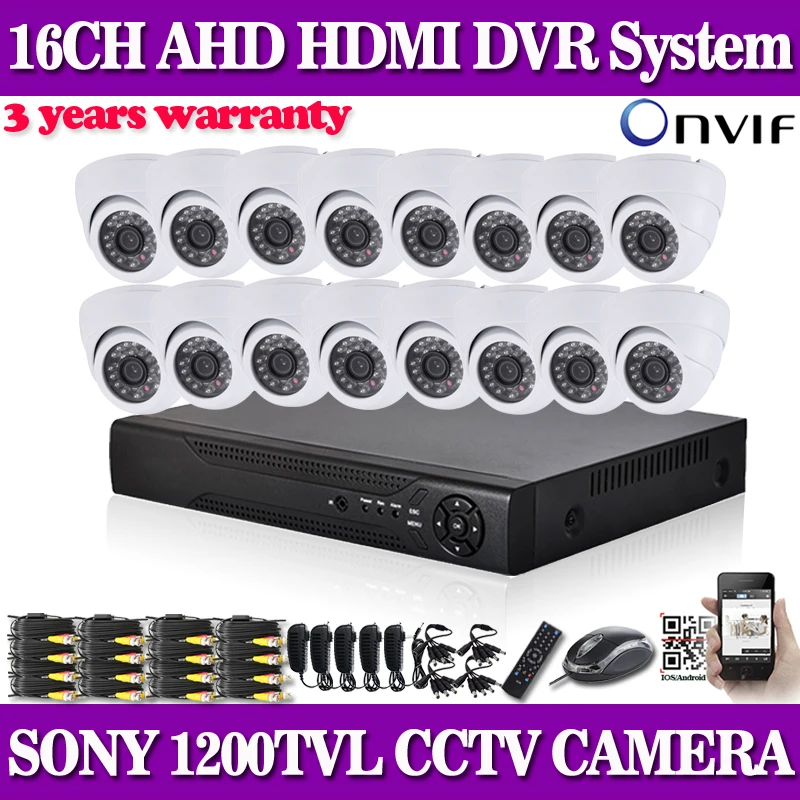

- 1 X 16CH H.264 AHD 960H Digital DVR recorder
- 16 x SONY 1200TVL 1/3″ inch Color CCD indoor IR Day Night vision waterproof cameras
- 16 X 65feet(20m) cctv video cable for camera
- 4 x 12V/3000mA power adapter for cameras
- 1 x 12V/2000mA power adapter for DVR
- 4 X 1 to 4 power splitter line
- 1 X USB Mouse for DVR
- 1 X Software CD for DVR
- 1 X Remote Control for DVR
- no included Hard Disk
- 16pcs HD SONY CCD 1200TVL CCTV Cameras;
- 16CH AHD 960H Hybrid DVR Recorder
- Strong Network Server;
- With P2P Cloud Function;
- support USB ,Mouse,backup;
- Support VGA output&HDMI output(1080P);
- Record Resolution: AHD 960H (960*576);
- With H.264 High efficiency Video Compression;
- Auto White Balance,Auto Gain control,back light comp;
- HDD Interface:SATA,Support between 250GB and 4TB;
- Multi-language menus option up to 28 kinds of language;
- no included hard disk;
IR Cut Filter Provides accurate color reproduction in all lighting conditions.
See more details with 3.6mm/6mm lens
Day & Night Monitoring with Built-in IR-Cut filter
JUST TWO STEPS TO FINISH THE SETUP!!
Say Goodbye to DDNS and portforwarding.
- e-Cloud Access via Smart Handsets
- AHD 960H High resolution
Analog High Definition has came!!!
Why 960H DVR has higher quality monitor pictures than D1 DVR?
Answer: Because 960H resolution is 960×576 = 1.3D1 (704 x 576)!!!! equal to 700TVL, but AHD resolution equal to about 820TVL!!!
- HDMI 1080P & VGA Video Output
The DVR is configured the VGA and HDMI(1080p) connector.
You can connect diretly to high-definition televisions,computer monitors,it is so easy and Convenient.
- At all time
This camera security system allows you to view your footage,no matter the time or location.Access your DVR’s footage over the internet,or directly from your Android ,Symbian,Windows Mobile,Ipad,iphone or Blackbetty.
- Instant Email Alerts if Activity Detected
This business surveillance system is designed to send an email alert, complete with photo the activity,if any motion is detected,or if any camera experiences video loss.
- Easy USB Backup
A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive .2 USB 2.0 port for Mouse and backup operation convenience.
- Advanced Motion Detection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events.
You can even ensure that false alarms are avoided by setting the motion detection”mask”to block areas with constant movement.
- View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable,This gives you more connection options while viewing activity captured by your cameras.
- Scheduled Recording Options
Choose the specific days of the week and hours of the day you would like your DVR to record or not record.Each individual camera can be set with its own personalized schedule.
- H.264 HD Video Compression
Compared with other existing video coding standards,Provide better image quality under the same broadband.
- 365 All year
Our camera adpots quality metal shell ,professional IP66 Weatherproof,provide stable performance both indoor and outdoor.
- Supports Onvif Protocol
- Supports Multiple Languages
English,Spanish,German,French,Russian,Japanese….etc.
- 365 All year
Our camera adpots quality metal shell ,professional IP66 Weatherproof,provide stable performance both indoor and outdoor.
System | Main processor | Hi3521 |
Video | video compression | H.264(High Profile); |
Encode | 16*D1 real-time /16* AHD-L @12fps | |
Decode | 1*D1real-time /4* AHD-L @12fps | |
Multi-mode input | Pure Analog:16* AHD-L ; 16*D1; 16*CIF;4*D1+12*CIF; 16*HD1; | |
Mixed:4*D1(Analog)+1*1080P(Network)+3*720P(Network); | ||
Pure Network:2*1080P+2*720P; 8*720P;1*1080P+1*720P+6*D1;16*D1 | ||
Audio | Audio compression | G.711A |
Intercom | support | |
Recording and Playback | Record mode | Manual>alarm>motion detection>timing |
Playback Channels | 4 (pure local input mode) | |
Storage and backup | Space occupation | 960H:12~20G/ day*channel,720P:20G~30G/ day*channel,audio:691.2M/ day*channel |
Network backup,USB HDD, USB writer | ||
Backup mode | SATA writer | |
Interface | Video input | 16 BNC |
Video output | 1ch VGA,1ch HDMI 1080P,1ch VGA | |
Audio input | 2ch RCA | |
Audio output | 1ch RCA | |
Alarm input | No | |
Alarm output | No | |
Network interface | RJ45 10M/100M Adaptive Ethernet port | |
PTZ control | RS485; support multiple PTZ protocols | |
USB | 2 USB ports | |
Hard disk | 1SATA(Each maximum support 4T ) | |
Wireless | 3G,WIFI(expand via USB) | |
Other | Power | 12V/2A |
dimension | 255mm(length)* 236mm(width)* 44mm(height) |
Sensor | 1/3 SONY CCD 1.3 Megapixel 720P sensor | |
Signal | PAL | NTSC |
Pixels | 720P | 720P |
Line | Sony 1200TVL | |
Illumination | 0Lux / IR ON | |
Lens | 3.6mm/6mm(optional) | |
IR LED | 24pcs Φ8mm High Power IR LED | |
IR Distance | 30Meter | |
Vertical | 50Hz | 60Hz |
Horizontal | 15.625KHz | 15.734KHz |
Clock | 28.375MHz | 28.636MHz |
Scanning | 2:1 Interlace | |
S.N.R | ≥50dB | |
E.S | 1/50-1/100,000s | 1/60-1/100,000s |
W.B | Auto Tracking | |
B.L.C | ON | |
A.G.C | ON | |
Gamma | 0.45 | |
Video Output | 1Vp-p, 75Ω | |
IP Rating | IP67 | |
Bracket | waterproof Especial Bracket | |
Power | DC12V | |
Dimension | 14*14*12cm | |
Volume Weight | 0.3kg |
