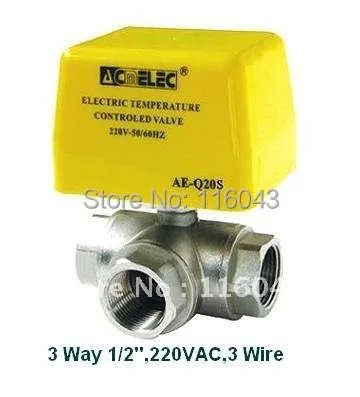

3 way 1/2” Fan Coill Thremostat Valve AC220V 3 wires 24VAC 110vac can be selected
![3 way 1 2 Fan Coill Thremostat Valve AC220V 3 wires 24VAC 110vac can be selected](https://ae01.alicdn.com/kf/HTB11NRYKFXXXXaNXVXXq6xXFXXXR/3-way-1-2-Fan-Coill-Thremostat-Valve-AC220V-3-wires-24VAC-110vac-can-be-selected.jpg)
![3 way 1 2 Fan Coill Thremostat Valve AC220V 3 wires 24VAC 110vac can be selected](https://ae01.alicdn.com/kf/HTB11NRYKFXXXXaNXVXXq6xXFXXXR/3-way-1-2-Fan-Coill-Thremostat-Valve-AC220V-3-wires-24VAC-110vac-can-be-selected.jpg_220x220.jpg)
![]() |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
---|---|
![]() |
On-time Delivery Guarantees: On-time Delivery 60 days |
3 way 1/2” Fan Coill Thremostat Valve AC220V 3 wires 24VAC 110vac can be selected
Product Name: Motorized Ball Valve
Item No.:TFCM series
-
Description:
-
TFCM series 2-way and 3-way motorised ball valves intended for use in heating and
-
cooling systems. Suitable for hot/chilled water,and glycol solution up to 50% concentration.
Features:
1) Smooth flow, no block up
2) High flow capability, 3 times flow rate more than traditional zone valves
3) 220V, 24V AC (Make An Choice)
4) Tight close, no leakage
5) Optional manual lever for convenient operation when power is off
6) The power is cut off when the valve reaches the on/off position
7) This ensures long life service for the actuator
8) The actuator cover adopts close structure which is resistive to humidity and ensures reliable operation for motor
9) Suitable for both vertical and horizontal installation
Technical Data
Valve type: 2-way /3-way ball valve
Pressure class: PN16
Supply Voltage: 220VAC+/- 10% 50/60 Hz
Connection: inner thread
Ambient Temperature :< 65oC
Fluid temperature:0oC~130oC
Relative Humidity:max 95%
Valve body: Bronze
Protection Class:IP55
Wiring Diagram
Operation Diagrams:
