3/4” proprotion valve 100% QUALITY Two way AC/DC24V 0-10V mixing valve for flow regulation or on/off control
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
100% QUALITY Two way 3/4” proprotion valve AC/DC24V 0-10V modulating on/off valve for flow regulation or on/off control

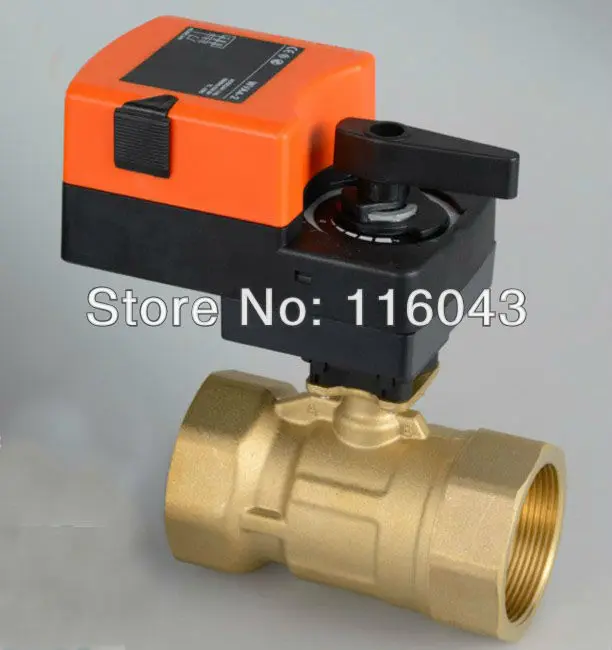

TF proportional valve consists of TFV4- series rotary actuator and DN15-DN50 brass ball valve. Equal percentage flow characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat ex-changer for flow regulation and on/off control.
Application:
HVAC system
Heating system
Water treatment system
Industrial equipments
Operational mode:
TF proportional valve is motor-operated by a type of, TFV4-304, TFV4-306 and TFV-310 actuator. The actuator is controlled by a modulating on/off, or proportional control system and move the ball of the valve, to the opening position dictated by the control signal.
Technical data:
Valve Boday:
Medium: cold/hot water, with 50% glycol
Temperature of medium: 2°C…90°C
Rated pressure: PN20
Pipe connector: internal thread
Ambient temp. range: −5…+60°C; 0…90%RH Size: 3/4’’ – 2’’
Valve type: 2-way and 3-way
Flow characteristic: equal percentage, on/off
Material:
Valve body: forged brass, Hpb59-1
Seal: ball: EPDM+PTFE
Ball: brass
stem: EPDM
Valve connector: PC
Valve Spindle:aluminum alloy
Actuator:
TFV4-304 24VAC/DC±15%, proportional (0(2)-10VDC)
TFV4-306 24VAC/DC±15%, proportional (0(2)-10VDC/0(4)-20Ma)
TFV4-310 24VAC/DC±15%, proportional (0(2)-10VDC/0(4)-20Ma)
Output torque: 4N.m, 6N.m and 10N.m Angle of rotation: 90°
Manual handle Automatic overload protection system
Manual selection of ball rotation direction: C.W. /C.C.W, factory setting is C.W.
Protect rank: IP54 Operation time: 50S-120S
Function (on/off and proportional type)
The actuator is controlled by a modulating on/off, and proportional control signal, using high transmitting ratio
gear drive to fix and lock.
Wiring Connection:
|
Model No. |
Working Voltage |
Actuator type |
Output torque |
Consumption |
Suitable Valve body |
|
TFV4-304 |
24VAC/DC±15% |
0(2)-10VDC |
4N.m |
3VA |
DN25,DN20,DN15 |
|
TFV4-306 |
(0(2)-10VDC/0(4)-20Ma) |
6N.m |
6VA |
DN50, DN40,DN32, |
|
|
TFV4-310 |
(0(2)-10VDC/0(4)-20Ma) |
10N.m |
DN50 |
Installation:
Dimension and Wiring:
