3d laser crystal engraving machine price AKJ1325H for metal and nonmetal
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
3d laser crystal engraving machine price
AKJ1325H for metal and nonmetal
parameter of AKJ1325H CO2 metal laser cutting machine:
|
Model |
AKJ1325H cnc co2 laser machine |
|
Working area |
1300*2500mm |
|
Laser power |
150W laser tube (180W/260W can select) |
|
Laser type |
CO2 laser tube,water-cooling |
|
Engraving speed |
0-40000mm/min |
|
Cutting speed |
0-20000mm/min |
|
Power supply |
220V/50HZ , 110V/60HZ |
|
Position accuracy |
0.01mm |
|
Repetition accuracy |
0.02mm |
|
Graphic format supported |
BMP, PLT, DST, DXF, AI |
|
Guide rail |
Hiwin from Taiwan |
|
Transmission method |
Ball screw transmission is optional and HIWIN guide rail |
|
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
|
Driving system |
Stepper motor and driver |
|
Net Weight |
450kg |
|
Optional part |
Partial up-down work table, USB Port, Autofocus |

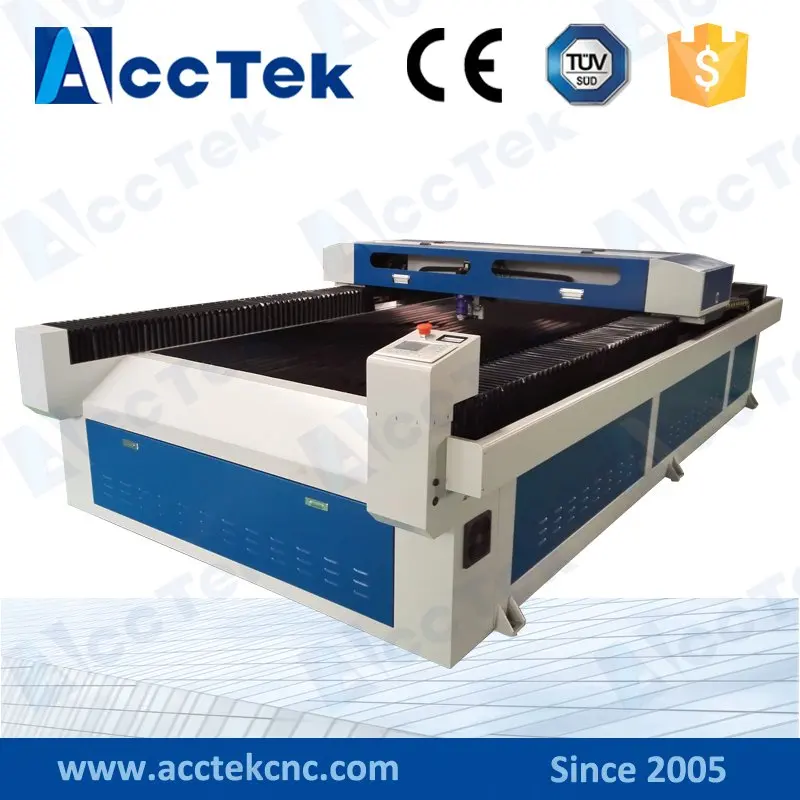

Details photos for AKJ1325H CO2 metal laser cutting machine:
This stainless steel cutting machine can use for cutting metal&nonmetal meterial.
Metal materail: This machine can cut carbon steel, stainless steel, According to different metal materials and thickness, we will adjust the pluse width, current, frequency, cutting speed.
Non-metallic materails: Wood, Bamboo, jade articale, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.
Cutting capacity of AKJ1325H CO2 metal laser cutting machine
| stainless steel | carbon steel | acrylic | wood |
| 2mm | 3mm | 30mm | 26mm |
Sample pics:
Feature of AKJ1325H CO2 metal laser cutting machine:
1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board
2.High precision:Imported servo motor with imported ball screw tansmission greatly improve the response speed and cutting precision of equipment, extend the time of using.
3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area.
4.High precision and Good stability :With precision ball screw transmission mechanism and optimized the nc system control, it can meet the precision parts processing,stable dynamic performance,also can work for long hours.
5. The cutting section with good quality:Mechanical follow-up cutting head system,
cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting.
6.Adopt sealed co2 laser tube , main consumable items are electric energy,watercooling, auxiliary gas and laser light
7. Sample structure, easy operation, stable laser device and low maintenance cost.
After sale service:
1. 1yearquality guaranty, the machine with main parts(excluding the consumables) shall be changed
free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
