4CH cctv 2.0mp 1080P IP POE Camera , 4 channel 1080p NVR System support POE NVR Kit, home video surveillance
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |

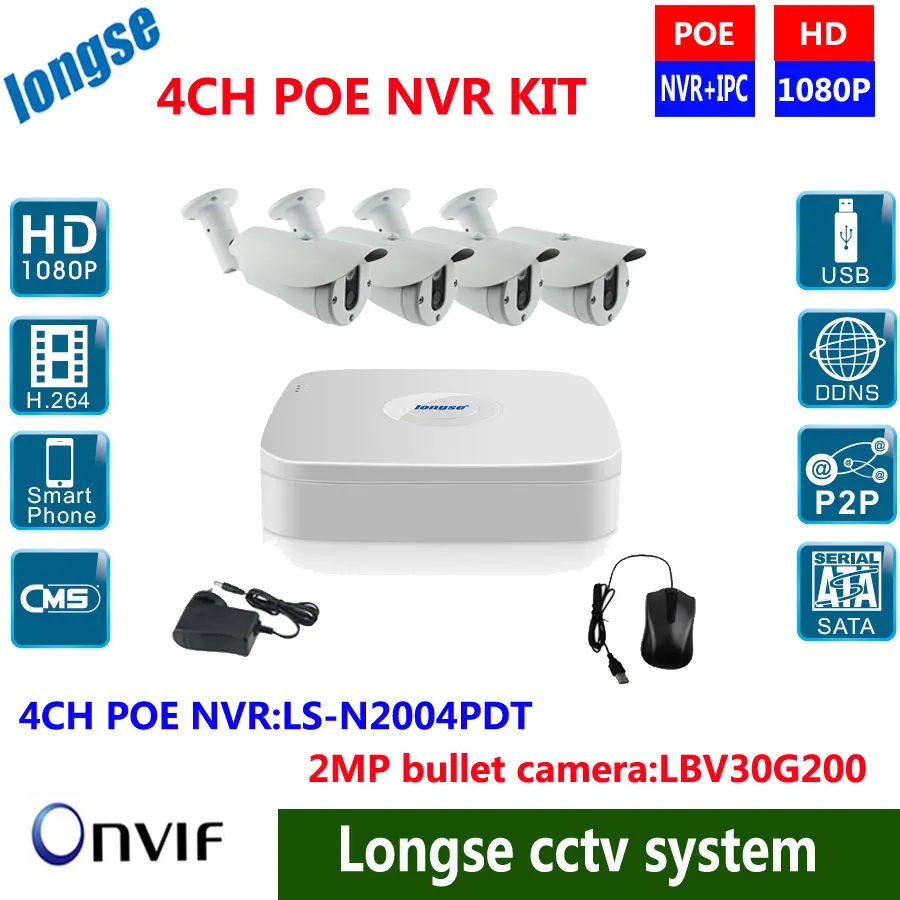

LS-N2004PDT_kit-8 include: 1pcs LS-N2004PDT + 4pcs LBG30G200
N2004PDT: 4ch POE NVR
LBG30G200:2.0MP POE bullet camera
********************************************************************************************************
LS-N2004PDT Parameters
- IP Camera Input: Max 4CHx1080P (Total Incoming Bandwidth<=20M)
- Vidieo Output: 1xHDMI/ 1xVGA
- Compression Method: H.264
- Recording Resolution: 2MP/1.3MP/1MP
- Frame Rate: Main Stream: 25fps (PAL) / 30fps (NTSC)
- Sub-stream: 25fps (PAL) / 30fps (NTSC)”
- POE: 4 x Independent 100Mbps PoE Network Interfaces
- (Output Power<=15.4W per Interface )”
- Preview Resolution: 1CH Main Stream/4CH Sub-stream
- Playback: Support Single Channel/Four Channels Mode.
- Hexaplex Operation Simultaneously: Live, Recording, Playback, Network Operating
- Static, Dynamic IP and DDNS, P2P, Support IE and Special Client Software
- 2 × USB, 5 x RJ45 (10M/100M Adaptive Ethernet Interface)
- 1 SATA Hard Disk Interface (2.5″/3.5″ SATA, Up to 4TB)
- Backup: USB2.0 (such as U Disk, USB Drive) and Network
- Support Remote View by Smart Phone
- DC 48V<=10W (Without Hard Disk and POE)
- Dimensions (L×W×H): 215*215*53(mm)
- Weight: 2kg
Model | LS-N2004PDT | ||
System | |||
Main Processor | ARM Cortex A9 Processor(HI3520D) | ||
Operating System | Embedded LINUX | ||
Video | |||
Input | 4CH (1920×1080, 1280×960, 1280×720, etc) | ||
Output | 1 VGA, 1 HDMI | ||
Alarm | |||
Sensor Input | NO | ||
Output | NO | ||
Motion Detection | 4 Channel | ||
Email Alarm | Support | ||
Display | |||
VGA | Resolution: 1024X768, 1280X720, 1280X1024, | ||
HDMI | Resolution: 1080P(1920×1080) 720P:(1280×720) | ||
Display Split | 4 Channel / 1Channel | ||
Digital Zoom | NO | ||
OSD | Camera title, Time, Video loss, Recording, Motion Detection | ||
Recording | |||
Video Compression | H.264 | ||
Resolution | 1080P(1920×1080) / 960P(1280×960) / 720P(1280×720) / D1 (704×576/704×480) | ||
Record Rate | PAL :1080P@100fps, 960P@100fps,720P@100fps, D1@100fps NTSC:1080P@120fps, 960P@120fps 720P@120fps, D1@120fps |
||
Record Mode | Timer \ Motion Detection | ||
Playback & Backup | |||
Local Sync Playback | 1X1080P | ||
Remote Sync Playback | YES | ||
Search Mode | ALL, Channel, Time, Date, Motion Detection | ||
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play | ||
Backup Mode | USB Device | ||
Network | |||
Interface | 5 RJ45 10M/100M Adaptive Ethernet Interface | ||
Network Functions | HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,DDNS | ||
Onvif Version | Support Onvif 2.4 | ||
Web Browser | IE6-11 | ||
CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 | ||
Cloud Support(P2P) | Yes | ||
POE | 4 x Independent 100Mbps POE Network Interfaces | ||
Smart Phone | iPhone, iPad, Android, Android PAD | ||
Hard Disk Driver | |||
Interface Type | 1 SATA Interface , 2.5/3.5 SATA | ||
Capacity | Up to 4TB capacity | ||
General | |||
Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian |
||
USB Interface | 2 USB 2.0 Interfaces | ||
Power Supply | DC48V 1250mA | ||
Working Environment | -10~55 degree /10~90% | ||
Dimension(W×D×H) | 215*215*53mm | ||
Weight | 2.0KG (without HDD) |
********************************************************************************************************
Remote view by Smart phone
********************************************************************************************************
Remote View by IE
********************************************************************************************************
Remote View by CMS
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
LBG30G200 Parameters
IR LED: 42µ x 1PCS IR rang: 20M Board Lens 3.6mm/F2.0 Water Resistance:IP66 Size: 293(W) x 95(H) x 93(D)mm Weight: 1.3kg Voltage: DC12V/POE 1/2.7″ OV 2.1MP High-resolution CMOS Sensor FARADAY GM8136S, WDR; Main Stream: 1080P@25fps; 3MP HD Lens, With IR-CUT
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
Packet:
(1) 4ch POE NVR X1pcs (don’t includ Hard disk)
(1) 2.0MP POE bullet camare LBG30G200X 4pcs
(1) Mouse X1pcs
(1) Power Supply for NVR X1pcs
(1) User’s Manual X1pcs
(1) CD Software X1pcs
