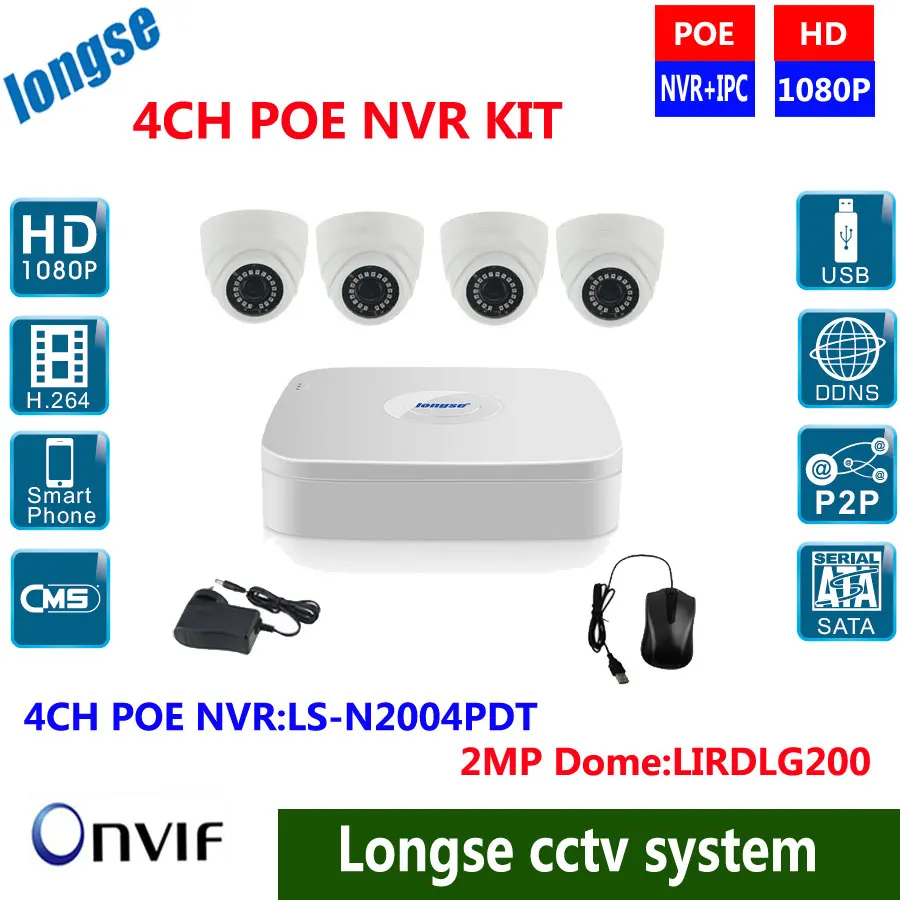

4ch POE NVR kit, include POE NVR +4pcs 2MP POE dome camera. Full HD 4ch 1080P NVR ,IR camera,support ONVIF H.264
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
LS-N2004PDT_kit-1 include: 1pcs LS-N2004PDT + 4pcs LIRDLG200
N2004PDT: 4ch POE NVR
LIRDLG200:2.0MP POE dome camera
********************************************************************************************************
LS-N2004PDT Parameters
- IP Camera Input: Max 4CHx1080P (Total Incoming Bandwidth<=20M)
- Vidieo Output: 1xHDMI/ 1xVGA
- Compression Method: H.264
- Recording Resolution: 2MP/1.3MP/1MP
- Frame Rate: Main Stream: 25fps (PAL) / 30fps (NTSC)
- Sub-stream: 25fps (PAL) / 30fps (NTSC)”
- POE: 4 x Independent 100Mbps PoE Network Interfaces
- (Output Power<=15.4W per Interface )”
- Preview Resolution: 1CH Main Stream/4CH Sub-stream
- Playback: Support Single Channel/Four Channels Mode.
- Hexaplex Operation Simultaneously: Live, Recording, Playback, Network Operating
- Static, Dynamic IP and DDNS, P2P, Support IE and Special Client Software
- 2 × USB, 5 x RJ45 (10M/100M Adaptive Ethernet Interface)
- 1 SATA Hard Disk Interface (2.5″/3.5″ SATA, Up to 4TB)
- Backup: USB2.0 (such as U Disk, USB Drive) and Network
- Support Remote View by Smart Phone
- DC 48V<=10W (Without Hard Disk and POE)
- Dimensions (L×W×H): 215*215*53(mm)
- Weight: 2kg
| Model | LS-N2004PDT | ||
| System | |||
| Main Processor | ARM Cortex A9 Processor(HI3520D) | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Input | 4CH (1920×1080, 1280×960, 1280×720, etc) | ||
| Output | 1 VGA, 1 HDMI | ||
| Alarm | |||
| Sensor Input | NO | ||
| Output | NO | ||
| Motion Detection | 4 Channel | ||
| Email Alarm | Support | ||
| Display | |||
| VGA | Resolution: 1024X768, 1280X720, 1280X1024, | ||
| HDMI | Resolution: 1080P(1920×1080) 720P:(1280×720) | ||
| Display Split | 4 Channel / 1Channel | ||
| Digital Zoom | NO | ||
| OSD | Camera title, Time, Video loss, Recording, Motion Detection | ||
| Recording | |||
| Video Compression | H.264 | ||
| Resolution | 1080P(1920×1080) / 960P(1280×960) / 720P(1280×720) / D1 (704×576/704×480) | ||
| Record Rate | PAL :1080P@100fps, 960P@100fps,720P@100fps, D1@100fps NTSC:1080P@120fps, 960P@120fps 720P@120fps, D1@120fps |
||
| Record Mode | Timer \ Motion Detection | ||
| Playback & Backup | |||
| Local Sync Playback | 1X1080P | ||
| Remote Sync Playback | YES | ||
| Search Mode | ALL, Channel, Time, Date, Motion Detection | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play | ||
| Backup Mode | USB Device | ||
| Network | |||
| Interface | 5 RJ45 10M/100M Adaptive Ethernet Interface | ||
| Network Functions | HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,DDNS | ||
| Onvif Version | Support Onvif 2.4 | ||
| Web Browser | IE6-11 | ||
| CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 | ||
| Cloud Support(P2P) | Yes | ||
| POE | 4 x Independent 100Mbps POE Network Interfaces | ||
| Smart Phone | iPhone, iPad, Android, Android PAD | ||
| Hard Disk Driver | |||
| Interface Type | 1 SATA Interface , 2.5/3.5 SATA | ||
| Capacity | Up to 4TB capacity | ||
| General | |||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian |
||
| USB Interface | 2 USB 2.0 Interfaces | ||
| Power Supply | DC48V 1250mA | ||
| Working Environment | -10~55 degree /10~90% | ||
| Dimension(W×D×H) | 215*215*53mm | ||
| Weight | 2.0KG (without HDD) | ||
********************************************************************************************************
Remote view by Smart phone
********************************************************************************************************
Remote View by IE
********************************************************************************************************
Remote View by CMS
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
LIRDLG200 Parameters
Plastic IR Dome Camera
IR LED: 14μ x 18PCS
IR range: 20M
Board Lens 3.6mm/F2.0
Size: 90.5 x 80 x 80mm
Weight: 300g
Color: White Voltage: DC12V/POE Main Specification 1/2.7″ OV 2.1MP High-resolution CMOS Sensor FARADAY GM8136S, WDR; Main Stream: 1080P@25fps; 3MP HD Lens, With IR-CUT
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
Packet:
(1) 4ch POE NVR X1pcs (don’t includ Hard disk)
(1) 2.0MP POE LIRDLG200 X4pcs
(1) Mouse X1pcs
(1) Power Supply for NVR X1pcs
(1) User’s Manual X1pcs
(1) CD Software X1pcs
