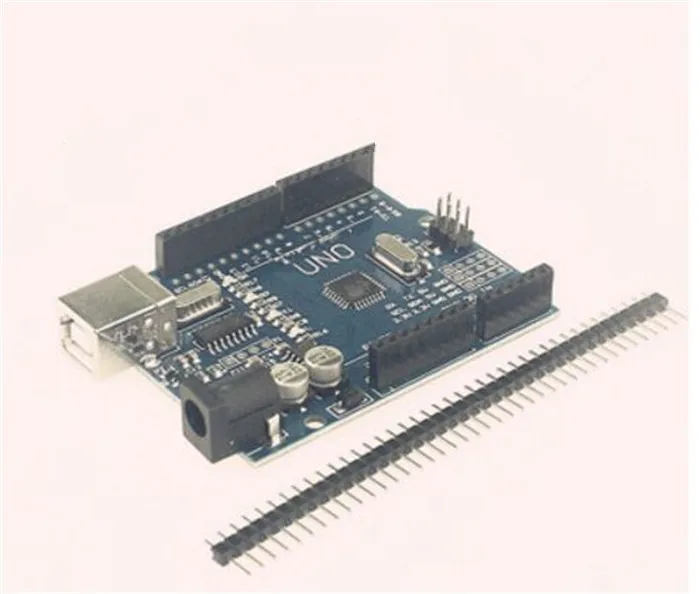

5PCSIntegrated Circuit for Arduino UNO R3 UNOR3 MEGA328P CH340 Development Board + USB Cable for DIY Starter Kit

5PCS Integrated Circuit for Arduino UNO R3 UNOR3 MEGA328P CH340 Development Board + USB Cable for DIY Starter Kit

​

Notice:Dear friend, if your order more than $5, Aliexpress don’t allow we send by not available tracking information shipping method (like China Post Ordinary Small Packet Plus, 4PX Singapore Post OM Pro). So please choose China Post Air Mail if your order more than $5. Or pls split your order, you can submit more than 2 orders, make sure your each order less than $5. If you can’t accept, pls don’t buy, We refuse to delivery. Thank you for your support, enjoy your shopping.

Please notice:If you choose China Post Ordinary Small Packet Plus,the tracking information will only shows in the order page and do not have a tracking number.If you want monitor the whole transit process,please choose other shipping method like China Post Registered Air Mail.

We won’t accept dispute if youchosen China Post Ordinary Small Packet Plus and ask a tracking number.

The Uno is a microcontroller board based on the CH340.It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the CH340 programmed as a USB-to-serial converter

Revision2 of the Uno board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

Revision3 of the board has the following new features:

1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible with both the board that uses the AVR, which operates with 5V and with the Due that operates with 3.3V. The second one is a not connected pin, that is reserved for future purposes.

Stronger RESET circuit.

“Uno” means one in Italian and is named to mark the upcoming release of 1.0. The Uno and version 1.0 will be the reference versions of , moving forward. The Uno is the latest in a series of USB boards, and the reference model for the platform; for a comparison with previous versions, see the index of boards.

5×UNO R3 MEGA328P CH340 CH340G for arduino UNO R3 + CONNECTOR
