5V 1 Channel Relay Module Low level for SCM Household Appliance Control For arduino DIY Starter Kit
- The module uses genuine quality relay, normally open interfaces
- Using SMD optocoupler isolation, driving ability, stable performance
- The module can be high or low by a jumper setting trigger
- Fault-tolerant design, even if the control line is broken, the relay will not operate
- The power indicator (green), the relay status indicator (red)
- The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
- Maximum load: AC 250V/10A, DC 30V/10A
- Trigger current: 5mA
- Working voltage: 5V
- Module size: 50 x 26 x 18.5mm (L x W x H)
- Four mounting bolts holes, diameter 3.1mm
- DC+: positive power supply (VCC)
- DC-: negative power supply (GND)
- IN: can be high or low level control relay
- NO: normally open relay interface
- COM: Common Interface Relays
- NC: normally closed relay interface

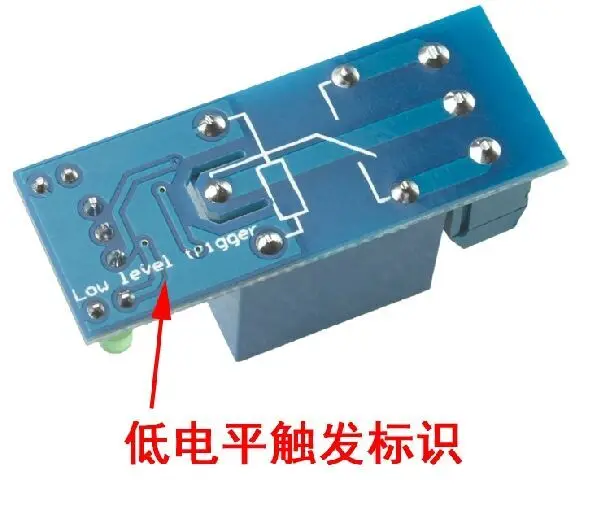

- It is low level trigger when jumper connect to LOW pin
- It is high level trigger when jumper connect to HIGH pin
5Pcs 5V 1 Channel Relay Module Low level
