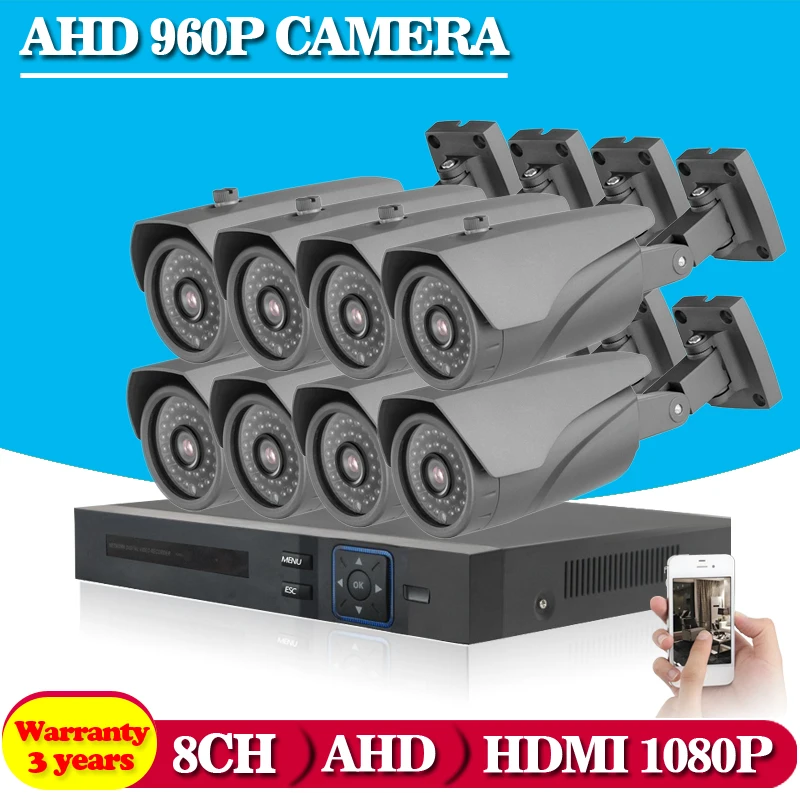

8CH 1080P AHD CCTV DVR System 8PCS CCTV Cameras 1.3 Megapixels Enhanced IR Security Camera System with 1TB HDD
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |
USD 419.98/pieceUSD 339.88/pieceUSD 359.88/pieceUSD 176.88/pieceUSD 319.98/pieceUSD 380.88/pieceUSD 119.88/pieceUSD 89.98/piece
- 1 X 8CH AHD H.264 AHD-NH 1080N DVR NVR HVR 3 IN 1 Digital Video Recorder
- 8 x HD AHD 960P 1/3″ inch Color CCD indoor outdoor IR Day Night vision waterproof cameras
- 8 X 65feet(20m) cctv video cable for camera
- 2 x 12V 3A power adapter for cameras
- 1 x 12V 2A power adapter for DVR
- 2 X 1 to 4 power splitter Cable
- 1 X USB Mouse for DVR
- 1 X Software CD for DVR
- 1 X Remote Control for DVR
- NO Hard disk included!!
It is very easy to install, you can do it by yourself.
8CH AHD-NH 1080N DVR System Support: DVR / NVR / HVR 3 IN 1(AHD Camera/Analog Camera/IP Camera)
1080N AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras What is DVR /NVR /HVR 3 in 1? DVR:Digital Video Recorder. NVR:Network Video Recorder. HVR:High Definition / Hybrid Digital Video Recorder. This 3 in 1 DVR has mature technology of DVR as well as the high definition and network advantages of NVR. Save the huge cost when you want to upgrade the dvr system to be NVR!!! 720P or 1080P IP Cameras supported(ONVIF Protocal)to get high definition image
- P2P Cloud Access via Smart Handsets
JUST TWO STEPS TO FINISH THE SETUP!!
Say Goodbye to DDNS and portforwarding.
1> Connect the Camera to DVR
2> Connect the DVR to Network
3> Scan QR for Mobile APP
4> Scan QR for S/N via APP and Enjoy Live Viewing
- e-Cloud Access via Smart Handsets
- Check in from anywhere,anytime
Even when you’re miles away, keep an eye on your home, kids and mischievous pets in True life HD
- Support HDMI 1080p output
The DVR is configured the VGA and HDMI(1080p) connector.
You can connect diretly to high-definition televisions,computer monitors,it is so easy and Convenient.
- View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable,This gives you more connection options while viewing activity captured by your cameras.
- Advanced Motion Detection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events.
You can even ensure that false alarms are avoided by setting the motion detection”mask”to block areas with constant movement.
- Instant Email Alerts
DVR will send you email automatically if there is any motion detected to keep your home safe and soud.
- HDMI & Easy USB Back Up
A Built-in USB port gives you the option of backing up and transferring your video footage to a USB flash drive or extremal USB hard drive.
- Support onvif protocol
- Supports Multiple Languages
Multi-language menus option up to 28 kinds of Language..
- Phone one key remote operation
VCR playback remote monitoring through mobile terminals such as PC to watch Alarm and remote control and operation accept.
- Motion Detection Alarm
When the camera to shoot someone stealing your belongings,will send photos via email to your phone,so So you are not at home,peace of mind…
- H.264 HD Video Compression
Compared with other existing video coding standards,Provide better image quality under the same broadband.
- Multiple Viewing options
Can support PC and TV monitoring with VGA or BNC cable.
Support VGA Output& HDMI Output.
NOTICE: This AHD camera must be connected via AHD DVR ,Thank you .
Best choice for project reconstruction!!You can upgrade an existing analog security system
to 1.0MP/1.3MP/2.0MP HD camera system without changing cable routes.
1) Applying high performance sensor, the image is clear and delicate
2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion
3) Analog HD 960P @AHD video output
4) Support OSD menu, can be freely adjusted in image and function
5) Transmission distance up to 500 meters
6) Support ultra low illumination
7) Support automatic electronic shutter function, adapting different monitoring environment
8) IR distance : 35 meters
9) Camera lens : 3.6mm
IR Cut Filter Provides accurate color reproduction in all lighting conditions.
See more details with 3.6mm/6mm lens
Day & Night Monitoring with Built-in IR-Cut filter
IP66 Professional outdoor weatherproof
Indoor/Outdoor Applicable(Camera performs both in outdoor and Indoor applications).
AHD-NH 1080N DVR Specifications
System | Main processor | Hi3521 |
Operating System | embedded Linux | |
System Resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | User interface | support 16-bit true color graphical menu interface and mouse operation |
Preview screen | 1/4/8/9 | |
Video Standard | PAL/NTSC | |
Video | Video compression | H.264(High Profile); JPEG snapshot |
Display quality | VGA,HDMI: HD | |
Playback quality | AHD-NH / AHD-M / D1 | |
Encode capacity | 8*AHD-NH / 8*AHD-M @15FPS | |
Decode capacity | 4*AHD-NH / 8*AHD-M @15FPS | |
Multi-mode input | Analog input: 8*AHD-NH 1080N | |
Digital input: 8*720P | ||
Hybrid input: 4*AHD 720P (analog) + 4*720P(network) | ||
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Playback | 4ch | |
search mode | Time/calendar/event/channel search | |
Storage & backup | Space occupation | Video 1080P: 20G-30G/ day*channel |
720P: 20G/day*channel | ||
960H:12~20G/ day*channel | ||
Audio 691.2M/ day*channel | ||
Video Storage | 3.5”HDD&Network | |
Backup mode | Network, U-disk, USB burner, SATA burner | |
Interface | Video input | 8ch BNC |
Video output | 1ch VGA, 1ch HDMI | |
Audio input | 4ch RCA | |
Audio output | 1ch RCA | |
Network interface | RJ45 10M/100M | |
PTZ control | 1*RS485, Support multiple PTZ protocols | |
USB | 2* USB 2.0 | |
HDD | 1*SATA port (Max 4TB/per) | |
Wireless | 3G, WIFI (extension via USB) | |
Other | Power supply | 12V2A or 12V/4A |
Power Consumption | <15W (without hard drive) | |
Temperature | -10-+55 | |
Humidity | 10%-90% | |
Language | multi-language(English,Spanish,Russian,etc…) | |
USB Mouse | included | |
remote control | included | |
Dimension | 250mm(length)*235mm(width)* 45mm(height) | |
Weight | 1.5KG |
HD AHD 960P Camera Specifications
Sensor | 1/3″inch imx238 |
Signal System | PAL/NTSC |
Video Standard | AHD |
DSP | NVP2431H |
Camera type | High performance AHD Camera |
Effective Pixel | PAL : 1280*960@25fps NTSC : 1280*960@30fps |
Active Pixel | 1280*960 |
Resolution | 1.3 Mega Pixel 960P |
Video output | AHD/CVBS||PAL/NTSC |
Minimum Illumination | 0.01Lux(F1.2) |
Gama adjust | 0.45 |
Lens | 3.6mm |
IR LEDs Amount | 36pcs infrared LEDs |
IR-CUT | Auto switch |
IR Distance | 35M |
Electric Shutter | 1/53~1/100000s |
S/N Ratio | 50dB(min)(AGC closed) |
3D-NR | OFF/LOW/MID/HIGH |
2D-NR | OFF/LOW/MID/HIGH |
HLC | Support |
WHITE Balance | ATW/AWC-SET/Indoor/Outdoor/MANUAL |
AGC | Level 0-15 |
D-WDR | Auto |
Sens-UP | X2-X30 |
Day/Night | Auto,Color,B/W,Ext |
Power Supply | DC 12V |
Power Dissipation | 300mA |
Operation Temperature | Temperature -25°F~122°F / -32°C ~60°C,Humidity less than 85%RH |
Dimension | 18.4(L)*6.5(H)CM |
AHD-NH 1080N DVR Menu Details
Note: If need us declare a low value of invoice for customs duty, pls leave us a message and tell us how much it’s better for your order, thanks for your cooperation.
We will send the goods out within 3 working days after your payment is verify by Aliexpress.
Currently, almost all products in our store are free shipping. Single camera via China post air mail as default. For DVR and security system, we support different logistics way to different countries. Please check the details on product description page.
Tracking No. will be provided within 2 business days after the shipment.
Buyers are responsible for additional COD charges, VAT, Brokerage Fees, Duty, or Customs Fees and Taxes.
If the products are detained by customs after the shipment has been left the seller’s country, the buyer is resonsible for clearance of the items.
We strive our best to provide you the most reliable, affordable way of shipping service. But sometimes it is highly depended on the shipping courier and local customs. If you do not receive your item on time, please contact us immediately for further assistance.
Warranty:
All merchandise we sell are in good quality and under strict examination before they are shipped out. We will try our best to avoid any quality problem.
We warrants this product against defects in workmanship and material for a period of 3 years from it’s original purchase date.
Any unit which proves defective during the warranty validation period will be repaired without charge for parts or replaced. The end user is responsible for all freight charges incurred to send the products to our repair center. The warranty does not cover any incidental, accidental or consequential damages arising from the use of. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party.
Return:
Item could be returned for refund or replacement within 30 days from the date you receive it. Returned merchandise must be unused, in original packaging and include all accessories. Original shipping costs are not refundable.
Before sending back any return items, please contact with us for a a Return Merchandise Authorization (RMA). Any products returned to seller without an RMA will be void, and we will be sent back to the buyer at his/her expense. Customer should be responsible for all charges of returning and reshipping.
Return tracking number will be helpful to this process.
Our tech support will deal with the repaired products upon receipt of your return parcel. Please feel free to contact us for any product or service issues
We appreciate your business greatly. If you are satisfiated with our products and service, please leave us a Positive feedback and 5 Stars rating. Your recognition will make us more confident to develop our business and serve you better.
If you are not satisfied by any reason, please feel free to contact us through AliExpress message center before leaving negative feedback. Our customer service and tech support will do our best to offer you a proper solution.
