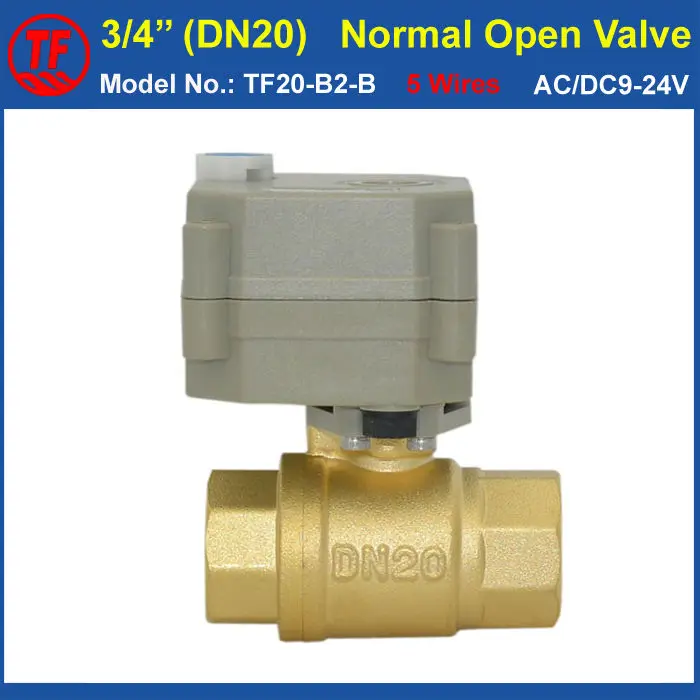

CE, IP67 BSP/NPT 3/4” 2-Way Normal Open Electric Ball Valve With Manual Override AC/DC9-24V 5 Wires Brass DN20 Actuated Valve
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Welcome to Our Store!
******************************************************************************************
1, Factory directly sales. We need 3-5 days for production.
2, Reply buyer’s questions within 8-24 hours.
3, 100% Chinese brand new and 1 year quality warranty.
****************************************************************************************
|
Model No.: TF20-B2-B |
Brand: TF |
|
Valve Size: DN20 (3/4”) |
Voltage: AC/DC9-24V |
|
On/Off Time: 5 Sec |
Pressure: Max 1.0Mpa |
|
Control Wiring: CR202 Wiring (5 Wires Normal Open) |
|
Normal Open Valve:
The valve stay at fully open position normally.
Valve turn to close position when connect it to 9-24VAC/DC power (12V, 24V).
Valve return to open position automatically after power off.
**************************************************************************************** Description: Product Model: TF20-B2-B (with manual override) Key Words: Brass 3/4” Motorized Valve, 2 Way Electric Shut-off Valve
Product size: BSP/NPT 3/4″, DN20 Valve Body Material: Brass Working Voltage: DC/AC9-24V Open/close Time: 5 Sec Wiring Control Methods: CR5 02 Wiring (normal open) Maximum Working Pressure: 1.0MPa Circulation Medium: Fluid, Air Working Current: ≤80MA (500 mA shown on the lable means the minimum current of external power) Life time: 100,000 times Actuator Material: Engineering Plastics Sealing Material: EPDM & PTFE Actuator Rotation: 90° Max. Torque Force: 2 N.M Cable Length: 0.5m Environment Temperature: -15°~50° Liquid Temperature: 0°~95° Manual Override:Yes Indicator: Yes Protection Class: IP67 **************************************************************************************** WIRING DIAGRAMS:
**************************************************************************************** Demention Drawing:
****************************************************************************************
How about the quality control of TF brand motorized ball valve?
1, Actuator housing use high quality engineering plastic for prevent aging and UV;
2, Metal gear system can guarantee the valve operation steady and long life working;
3, 200 times electronic performance testing before sending out, each valve should open/closed 200 times by power in this testing;
4, Type ID number to each batch valves;
5, The protection class is also IP67, all actuators are fully sealed to IP67 specifications to prevent water ingress;
6, Floating seal structure, no leak, suitable for heavy dirt or long time working. No leaking, high protection class, NEMA 6 equivalent;
7, Most of other supplier offer reduce port only. TF series motorized valve features a full port ball valve, the valve do not lose any water flow or pressure on the working.
8, Offer NPT thread valve for America and Canada market, and offer BSP thread valve for other country.
9, Different wiring control methods for option which include 2/3/5 wires control, normal open/closed, signal feedback etc.
10. Acquired CE certification and ISO certification.
****************************************************************************************
