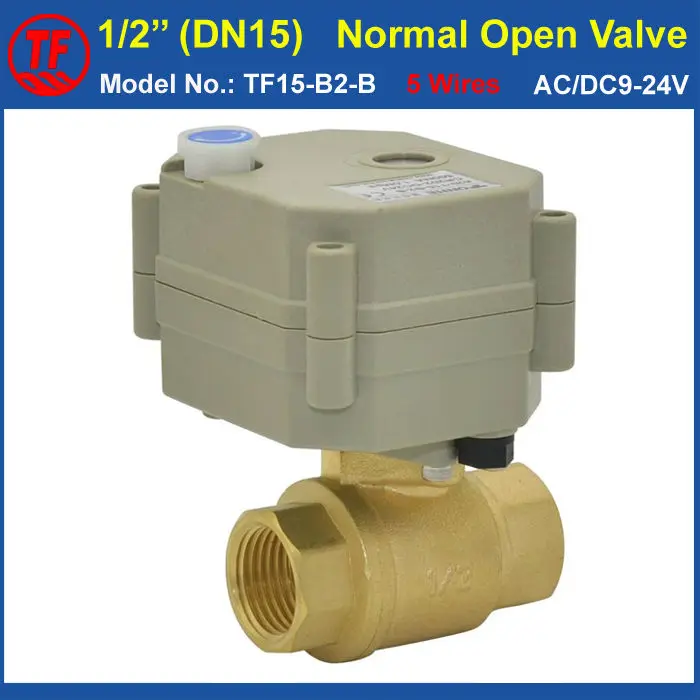

CE, IP67 TF15-B2-B Metal Gear DN15 Normal Open Valve With Manual Override AC/DC9-24V 5 Wire With Signal Feedback BSP/NPT 1/2”
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Welcome to Our Store!
******************************************************************************************
1, Factory directly sales. We need 3-5 days for production.
2, Reply buyer’s questions within 8-24 hours.
3, 100% Chinese brand new and 1 year quality warranty.
Normal Open Valve:
The valve stay at fully open position normally.
Valve close when you connect it to 9-24VAC/DC power (12V, 24V).
Valve return to open position automatically after power off.
*********************************************************************************** *******
WIRING DIAGRAMS:
*********************************************************************************** ******* Description: Product size: BSP/NPT 1/2″, DN15 Valve Body Material: Brass Working Voltage: DC/AC9-24V Open/close Time: 5 Sec Wiring Control Methods: CR502 Wiring (Normal Open With Signal Feedback) Maximum Working Pressure: 1.0MPa Circulation Medium: Fluid, Air Working Current: 80MA (500 mA shown on the lable means the minimum current of external power) Life time: 100,000 times Actuator Material: Engineering Plastics Sealing Material: EPDM & PTFE Actuator Rotation: 90° Max. Torque Force: 2 N.M Cable Length: 0.5m Environment Temperature: -15°~50° Liquid Temperature: 0°~95° Manual Override:Yes Indicator: Yes Protection Class: IP67 *********************************************************************************** ******* Demention Drawing:
******************************************************************************************
Applications:
HVAC
Fan coil
Central Air conditional System
Water Heter
solor Water heating
Water treatment
water automatic control Equipment
Replacing solenoid valve,particularly when solenoid cannot work reliably
******************************************************************************************
Product Photos:
