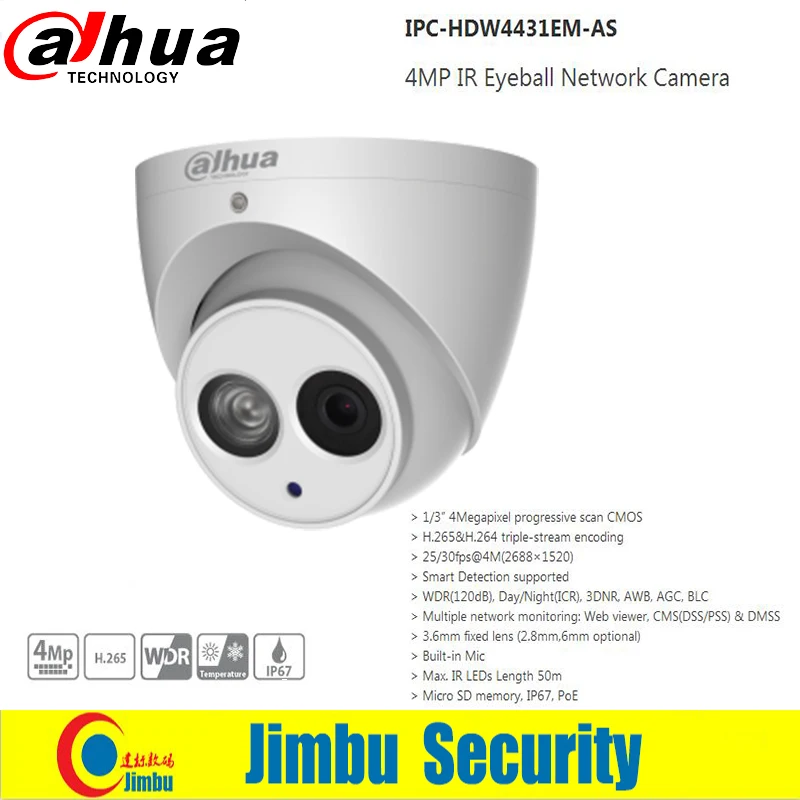

Dahua 4MP security IP camera POE IP67 IPC-HDW4431EM-AS Built-in Mic H.265&H.264 triple-stream encoding IR Eyeball Network Camera
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Feature
> 1/3” 4Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@4M(2688×1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (2.8mm,6mm optional)
> Built-in Mic
> Max. IR LEDs Length 50m
> Micro SD memory, IP67, PoE
Camera
|
Image Sensor |
1/3” 4Megapixel progressive scan CMOS |
|
Effective Pixels |
2688(H)x1520(V) |
|
RAM/ROM |
512MB/32MB |
|
Scanning System |
Progressive |
|
Minimum Illumination |
0.08Lux/F2.0 (Color), 0Lux/F2.0 (IR on) |
|
S/N Ratio |
More than 50dB |
|
IR Distance |
Distance up to 50m (164ft) |
|
IR On/Off Control |
Auto/ Manual |
|
IR LEDs |
1 |
|
Lens |
|
|
Lens Type |
Fixed |
|
Mount Type |
Board-in |
|
Focal Length |
3.6mm (2.8mm, 6mm optional) |
|
Max. Aperture |
F2.0 (F2.0, F2.0) |
|
Angle of View |
H:87° (104°, 55°), V:48° (57°, 31°) |
|
Optical Zoom |
N/A |
|
Focus Control |
Fixed |
|
Close Focus Distance |
N/A |
|
Pan/Tilt/Rotation |
|
|
Pan/Tilt/Rotation Range |
Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚ |
|
Intelligence |
|
|
IVS (optional) |
Tripwire, Intrusion, Object Abandoned/Missing |
|
Advanced Intelligent Functions |
Face Detection |
|
Video |
|
|
Compression |
H.265+/H.265/H.264+/H.264 |
|
Streaming Capability |
3 Streams |
|
Resolution |
4M(2688×1520)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
|
Frame Rate |
Main Stream: 4M(1~25/30fps) |
|
Sub Stream: D1(1~25/30fps) |
|
|
Third Stream: 720P(1~25/10fps) |
|
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H.264: 24~10240Kbps H.265: 14~9984Kbps |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
BLC Mode |
BLC / HLC / WDR(120dB) |
Audio
|
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
10 Users / 20 Users |
|
Edge Storage |
NAS Local PC for instant recording Mirco SD card 128GB |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS, Easy4ip |
|
Smart Phone |
IOS, Android |
|
Certifications |
|
|
Certifications |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
Built-in Mic |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
Electrical |
|
|
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
|
Power Consumption |
<5W |
Environmental
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
N/A |
|
Construction |
|
|
Casing |
Metal |
|
Dimensions |
Φ106mm×93.7mm (4.17”×3.69”) |
|
Net Weight |
0.47Kg (1.04lb) |
|
Gross Weight |
0.65Kg (1.43lb) |
H.265 can save more your recorder
