Free shipping DN25 AC110-230V 2 wires NPT/BSP 1” Normal Open TF25-B2-C Electric Brass Valve With Position Indicator
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |

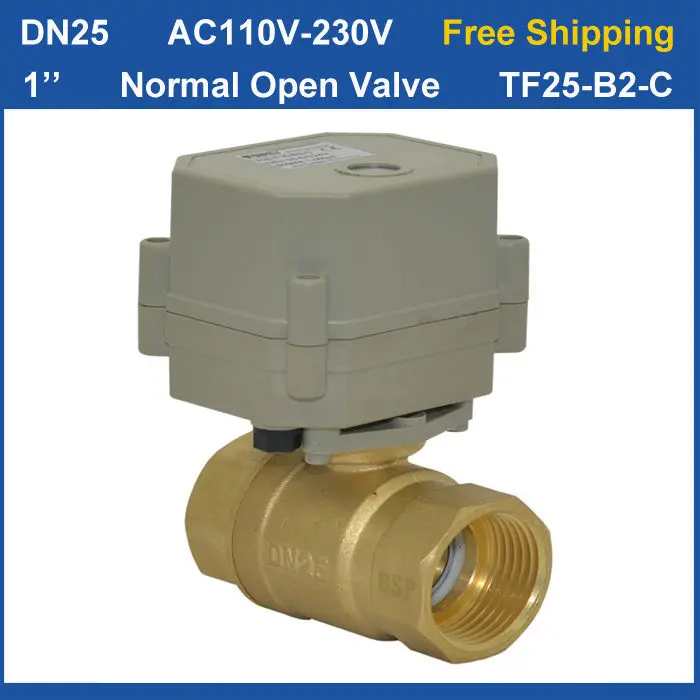

NPT/BSP 1” Normal Open Solenoid Valve TF25-B2-C 110V-230VAC DN25 Electric Brass Valve With Position Indicator 2 Wires
Notice:
1). Normal Open Valve: Valve usual keep open position, Valve closed when connect to 110V to 230V power, and valve come back to open when 9-24V power is off ! Normal Closed Valve is opposite.
2). Factory directly sales,we need about 3-5 business day for production!
3). China Post Air Mail Free shipping, but we can’t promise the delivery time (15-60 days).
WIRING DIAGRAMS:
Description: Product size: BSP/NPT 1″, DN25 Valve Body Material: Brass Working Voltage: AC110V-230V Open/close Time: 5 Sec Wiring Control Methods: CR2 02 (normal open version); Maximum Working Pressure: 1.0MPa Circulation Medium: Fluid, Air Working Current: ≤80MA (500 mA shown on the lable means the minimum current of external power) Life time: 100,000 times Actuator Material: Engineering Plastics Sealing Material: EPDM & PTFE Actuator Rotation: 90° Max. Torque Force: 2 N.M Cable Length: 0.5m Environment Temperature:-15°~50° Liquid Temperature: 0°~90° Manual Override:None Indicator: Yes Protection Class: IP67 Demention Drawing:
Applications:
HVAC
Fan coil
Central Air conditional System
Water Heter
solor Water heating
Water treatment
water automatic control Equipment
Replacing solenoid valve,particularly when solenoid cannot work reliably
