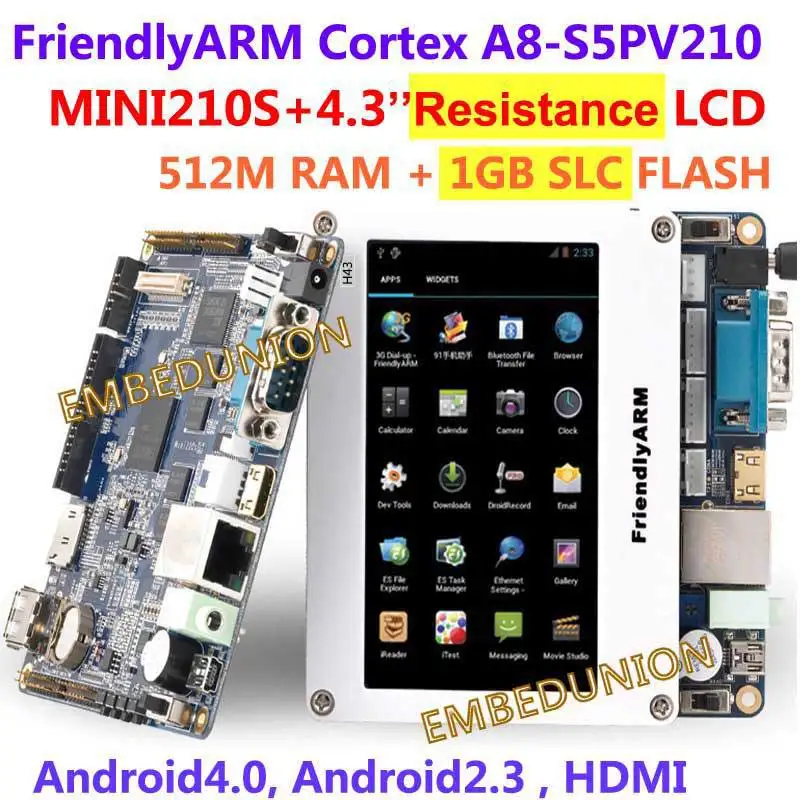

FriendlyARM Cortex A8 S5PV210, MINI210S+4.3 inch Resistance Touch Screen Display,512M RAM+1GB Flash,Android4.0

Cortex A8 Development Board S5PV210 MINI210S + 4.3” TFT Touch Screen

512M DDR2 RAM + 1GB SLC NAND FLASH

_^*****Note: This board is not completed open source ! Not recommand for beginners._^*****

————————————————————————————————————————

-Main Features-

• 1GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
• 512MB DDR2 RAM and 1GB NAND Flash
• LCD/Touch Screen, HDMI, Audio support
• TF card, USB Host/OTG support
• Ethernet, serial port, GPIO
• Linux 2.6.35, Wince 6.0, Android 2.3&Android 4.0 support (not completed open source )

-Specification-

System:

• CPU: 1 GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
• RAM: 512 MB DDR2 RAM, 32 bit Bus
• Flash: 1GB SLC NAND Flash
• EEPROM: 256 Byte (I2C)
• Ext. Memory: 1x microSD-Card socket
• RTC: Real Time Clock with battery

Video & Audio:

• LCD Interface: 41 pin (1.0 mm) connector, support 3.5 to 12.1″LCD
• Monitor: miniHDMI (type C)
• Camera: 2x 20 pin (2.0 mm) Camera interface
• Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
• Audio Input: Condenser microphone

Network:

• Ethernet: RJ-45 10/100M (DM9000)

Multi-IO:

• Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
• USB: 1x USB-A Host 2.0, 1x miniUSB Slave/OTG 2.0
• Beeper: PWM buzzer
• User Inputs: 8x push buttons and 1x A/D pot
• User Outputs: 4x LEDs
• MIPI interface: 24Pin 2.0mm header
• SDIO interface: 20Pin 2.0mm header, support SD WiFi module, contain 1 SPI, 2 IIC.
• CMOS Camera: 20Pin 2.0mm header, support two camera module
• 8*8 key interface: 20Pin 2.0mm header, support 8×8 key.
• GPIO interface: 10Pin 2.0mm header, contain ADC, I2S, I2C, SPI, PWM, IO…
• Debug: 10 pin JTAG (2.0 mm)

Mechanical:

• Dimension: 110 x 110mm
• Temperature: 0°C to 70° C
• Power: regulated 5V (DC-Plug)
• Board Weight: 98g

-Support System-

Android 2.3 (no Android 4.0 source code)

Boot loader

• verison: Superboot-210
• Function: support boot and update system by TF-card(superboot)

Linux kernel

• verison: Linux-2.6.35
• Compile: arm-linux-gcc-4.5.1-v6-vfp

Android System

• Android 2.3(provide source code)
• Android 4.0(provide test demo)

Device Driver

• TFT LCD/Touchscreen,HDMI,Audio OUT, MMC/SD card, NET, Serial port, watchdog, RTC,keyboard
• WIFI, USB Host/Device, FIMC/JPEG/MFC/3D/2D, Camera, 3G driver

File System support

• Ubi filesystem, yaffs, ext2/3

Function use example

• Ethernet, Support DHCP, Audio in/out, SD WiFi support, HDMI support
• COMS Camera support, 3G support(WCDMA, CDMA2000)
• USB Disk support, USB Bluetooth support, Switch horizontal and vertical screen
• Dynamic Wallpapers

Linux

Boot loader

• verison: Superboot-210
• Function: support boot and update system by TF-card(superboot)

Linux kernel

• verison: Linux-2.6.35
• Compile: arm-linux-gcc-4.5.1-v6-vfp

Device Driver

• TFT LCD/Touchscreen, HDMI, Audio OUT, MMC/SD card, NET, Serial port, watchdog, RTC, keyboard
• WIFI, USB Host/Device, FIMC/JPEG/MFC/3D/2D, Camera, 3G driver

File System support

• Ubi filesystem, yaffs, ext2/3,

Graphics system

• Qtopia-2.2.0/Qt-4.4.3/Qt-4.7

WinCE 6.0

Boot loader

• Version: Stepldr and EBOOT(provide Source code)
• Function: support download and update system by SD and USBQucik boot:

WinCE NK

• Version: Wince6.0 R3
• Function: HIVE register support, BINFS support, SLEEP

Device Drivers

• TFT LCD/Touchscreen(support 3.5″LCD, 4.3″LCD, 7.0″LCD, 8″LCD, 10.4LCD)
• CMOS camera, user key driver, PWM driver, RTC driver, DM9000 driver
• SD card support, touch screen support, audio In.Out,
• serial driver, media support(JPEG, fimc, MFC, 2D/3D,TVENC, TVSCALER)
• WIFI, GPS, GPRS, Camera,
• USB bluetooth, USB WiFi, USB mouse, USB key, IE6 explorer.

Test program

• LED test, button test, serial debug tools, PWM test, TV test, OpenGL test
• COMS camera test, SD wifi test, USB wifi test, backlight control test, usb bluetooth test, NET test

-Hardware- Base Board: Mechanical:

-LCD-

4.3 inch touch screen

• Touch: resisitance,one-wiretouch
• Display resolution: 480*272
• Size: 110mm*88mm
• Backlight: adjustable
• Power: 5V/1A
• Other: with whiteFrame

-Package list-

• MINI210S base board ( Preload with Android4.0) x 1
• TFT resistance LCD: 4.3″ 480×272 x 1
• DB9 Serial Converter x 1
• MINI-USB cable x 1
• Net cable x 1
• 5V/1A power adapter x 1
• CD (Including Manual,Datasheet,Test code) x 1
• Touch Pen for touch panel x 1

Remark: Preload with Android, if want to change/reburn Board System, TF card (not less then 4GB) is necessary
