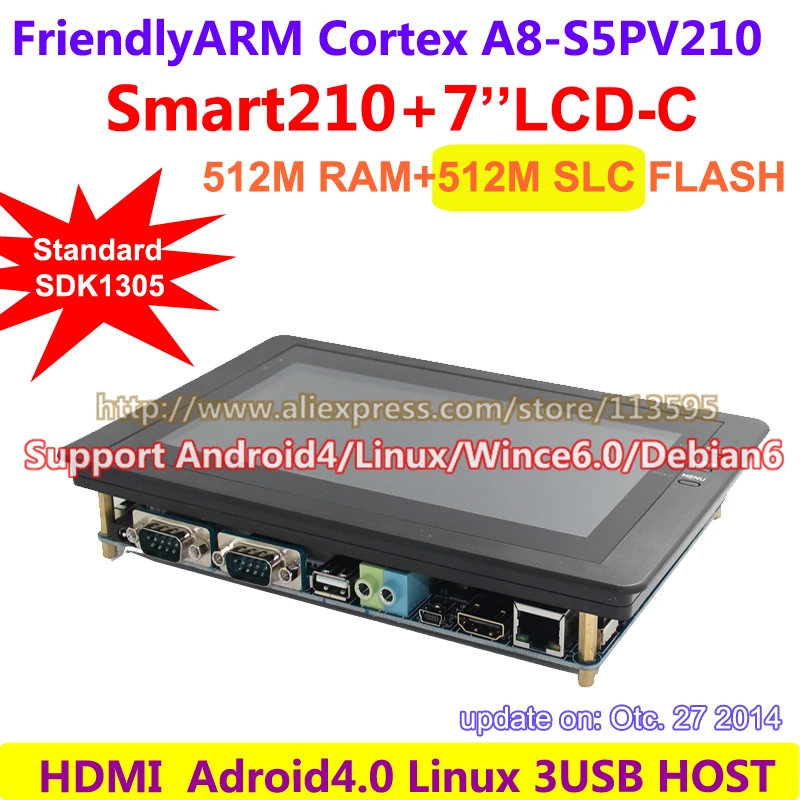

FriendlyARM Cortex A8 S5PV210 , Smart210 SDK1305+ 7inch Capacitive Touch LCD 512M RAM 512M Flash Development Board Linux Android
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
Cortex A8 ARM Board S5PV210
Smart210 TINY210V2 SDK1305+ 7” Capacitive Touch Screen
512M RAM + 512M SLC NAND FLASH
For better differentiate with TINY210 V2 SDK1301, TINY210V2 SDK1305 is renamed as Smart210 from 2013.07.05.
*****Note: This board is not completed open source ! Not recommand for beginners.*****
The Tiny210 V2 and Tiny210 Single Board Computer is a high-performance controller board introduced. It is designed based on the S5PV210 microcontroller, 512MByte DDR2 RAM, running frequency can be as high as 1G HZ.
S5PV210 internal integration of the PowerVR SGX540 high-performance graphics engine, support 3 d graphics to run smoothly, and can play 1080 p large size hd video, fluent run Android, Linux and WinCE6 advanced operating system, very suitable for development of high-end content networked terminal, advertising multimedia terminal, intelligent household, high-end monitoring system, game control panel equipment ect..
Compared to the old TINY210 core module, TINY210 V2 core module shows higher integaration performance, which integrated enthernet card and audio card on it. Compared to the old version, there’re more CPU function pin (208 pin, the old version is 180pin) .
Standard NAND FLASH is 512M SLC .There’re more optional configuration, support 256M/512M/1G/2G NAND FLASH, could couple with different size of resistance or capacitive display.
For better differentiate with TINY210 V2 SDK1301, TINY210V2 SDK1305 is renamed as Smart210 from 2013.07.05. There is only a little changes with the base board between TINY210V2 SDK1301 and Smart210, core board are the same.
Samsung S5PV210, based on CortexTM-the A8, 1 GHz frequency
Inside PowerVR SGX540 high-performance graphics engine
2 D/3 D graphics acceleration
Support MAX 1080 p @ 30 FPS hardware decoding video smooth playback, format for MPEG4, h. 263, h. 264, etc
Support MAX 1080 p @ 30 FPS hardware encoding (mpeg-2 / VC1) video input
DDR2 RAM: 512MB, 32bit data bus, 200MHz
- DDR2 RAM:
size: 512M, 32bit, single channel,200Mhz
- FLASH: 512M SLC NAND Flash
Android 2.3 + Linux-2.6.35
Android 4.0(offer Linux-3.0.8 core source code)
Linux-2.6.35 + Qtopia-2.2.0/Qt-4.4.3/Qt-4.7
Smart210 Stamp/Core Module:
- On-board resources
4 x User Leds(Green)
1 x Power Leds(Red)
Ethernet Chip: DM9000AEP
Audio Chip: WM8960
Supply Voltage: 2V~6V
2 x 70 Pin 2.0mm space DIP connector
2 x 34 Pin 2.0mm space DIP connector
- Mechanical: 6 layers high density PCB
- Dimension: 74 x 55 x 10mm
- TINY210V2 Compared to TINY210
Smart210 base backplane board (PCB file-Allegro in CD):
- Serial Port: 4, 2 of them have been converted to RS232(DB9), and leads through the DB9 Block (COM0, COM1), through the CON1, 2, 3, 4, Block leads to TTL level
- Interrupt style keys: 8
- RJ45 Ethernet port: NIC using DM9000AEP, 10/100M adaptive
- Audio input and output: using the WM8960 professional audio chip, containing Class D amplifier on-board microphone, and supports HDMI audio and video synchronization output (exclusive)
- mini USB Slave: 1 Road, the USB 2.0 specification
- USB Host: 3*USB2.0
- Buzzer: 1 PWM
- EEPROM: 1* I2C (256 Byte)
- Gravity induction chip
- LCD Interface: 2* LCD interface, 40 Pin 0.5mm Pitch Chip Block, support front-line precision touch support 3.5 “-12.1” full color TFT display; 1* LCD interface, 45 Pin 0.5mm Pitch Chip Block, support based on 2IC, front-line precision touch support 3.5 “-12.1” full color TFT display; miniHDMI interface(Type C)—-on core module
- SDIO interface: used to connect the SD WiFi module and other
- The CMOS Camera: used to connect CMOS camera
- AV input interface: for CCD camera
- SD card slot: 1
- miniPCIe: 1
- AD input: 6
- RTC clock: with a backup battery (according to different regions or time periods, mailing may remove the battery)
- PCB layer: 2
- PCB size: 180 x 130mm, can be easily fixed all kinds of LCD modules, especially the 7-inch LCD module
- Power supply: DC-23B-5V
7 inch touch screen-S700 (Capacitive)
——-as photo shows below, the newest frame is larger than old version, update from 22th Oct.2014
- Touch: Capacitive,Five-point touch
- Display resolution: 800*480
- Size: 20.5cm*13.7cm*1cm
- Power: 5V/2A
- Other: with Black Frame
- Smart210 board and with Stamp module ( Preload with Android4.0) x1
- TFT LCD: 7inch,Capacitive Touch, 800×480 x1
- DB9 Serial Converter x1
- miniUSB cable x1
- Net cable x1
- 5V power adapter x1
- DVD-ROM with product reference (1) User Manual (2) core board schematics (3) backplane schematic diagram x1
Remark: Preload with Android4.0, if want to change/reburn Board System, SD card is nessesary.
if need any module, please add to cart to put order together.
Profoma invoice is very important and necessary, and please let us know the declared content and value that will be written in Proforma invoice after payment but before shipment.
We do not responssible for any customs tax or any other extra fee happend on your country’s customs.
Free shipping , FriendlyARM S5PV210 Cortex A8,TINY210 Core Module Stamp,512M RAM+512M Flash, Development Board Android4.0
Free shipping FriendlyARM Cortex A8 S5PV210, MINI210S+4.3 inch Resistance Touch Screen Display,512M RAM+1GB Flash,Android4.0
FriendlyARM Development Board ARM Kit MINI2440 + 3.5 inch 320*240 touch screen,64M Ram+1G Flash,S3C2440 2440 ARM9 Learning Board
Free shipping FriendlyARM CMOS Camera CAM130 , for 2440 6410 , MINI2440 TINY6410 MINI6410 Tiny210 MINI210
Free shipping FriendlyARM SD WIFI For S3C6410 Cortex A8 ARM11,TINY6410 MINI6410 Tiny210 Android,Linux,WinCE
FriendlyARM S5PV210 Cortex A8 Development Board , TINY210 SDK+7inch Resistance Touch Screen,512MRAM+1G SLC Flash, Android4.0
