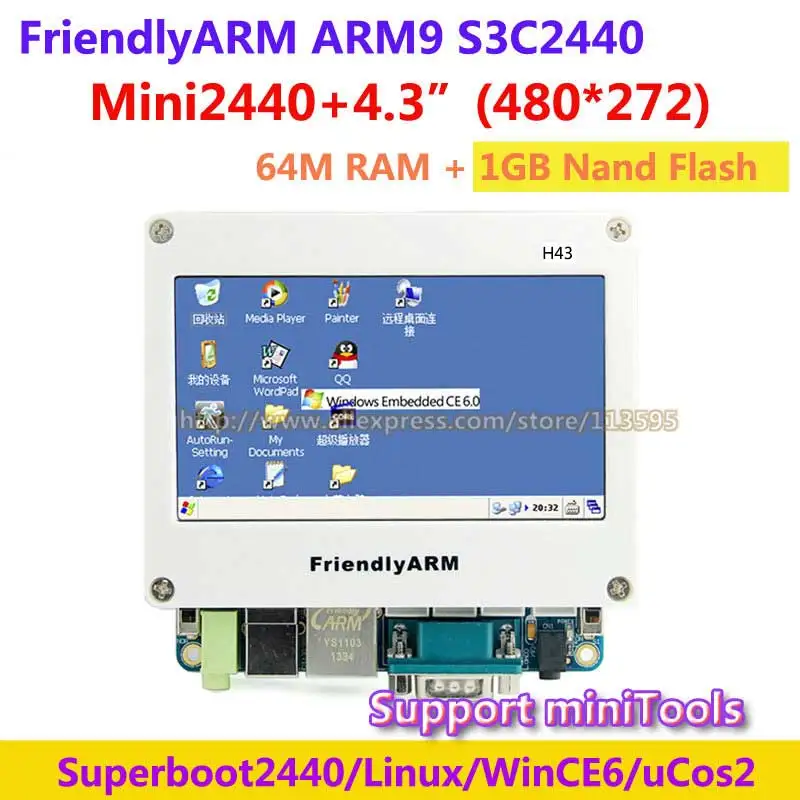

FriendlyARM Development Board kit ARM MINI2440+4.3 inch 480*272 touch screen,64M Ram+1GB Flash,S3C2440 2440 ARM9

ARM9 Development Board: MINI2440 + 4.3 inch TFT

64M RAM + 1gb SLC NAND FLASH

————————————————————————————

Mini2440 is a practical low-cost ARM9 development board, is currently the highest in a cost-effective learning board. It is for the Samsung S3C2440 processor and the use of professional power stable core CPU chip to chip and reset security permit system stability. The mini2440 Immersion Gold PCB using the 4-layer board design process, professional, such as long-wiring to ensure that the key signal lines of signal integrity, the production of SMT machine, mass production; the factory have been a strict quality control, with very detailed in this manual
can help you quickly master the development of embedded Linux and WinCE process, as long as there is C language based on the general entry to two weeks.

-Specification-

• Dimension: 100 x 100 mm
• CPU: 400 MHz Samsung S3C2440A ARM920T (max freq. 533 MHz)
• RAM: 64 MB SDRAM, 32 bit Bus
• NAND Flash: 1GB NAND Flash and 2 MB NOR Flash with BIOS
• EEPROM: 256 Byte (I2C)
• Ext. Memory: SD-Card socket
• Serial Ports: 1x DB9 connector (RS232), total: 3x serial port connectors
• USB: 1x USB-A Host 1.1, 1x USB-B Device 1.1
• Audio Output: 3.5 mm stereo jack
• Audio Input: Connector + Condenser microphone
• Ethernet: RJ-45 10/100M (DM9000)
• RTC: Real Time Clock with battery (CR1220)
• Beeper: PWM buzzer
• Camera: 20 pin (2.0 mm) Camera interface
• LCD Interface: 41 pin (1.0 mm) connector for FriendlyARM Displays and VGA Board
• Touch Panel: 4 wire resistive
• User Inputs: 6x push buttons and 1x A/D pot
• User Outputs: 4x LEDs
• Expansion: 40 pin System Bus, 34 pin GPIO, 10 pin Buttons (2.0 mm)
• Debug: 10 pin JTAG (2.0 mm)
• Power: regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)
• Power Consumption: Mini2440: 0.3 A, Mini2440 + 3.5″ LCD: 0.6 A, Mini2440 + 7″ LCD: 1 A
• OS Support
  • Windows CE 5 and 6
  • Linux 2.6
  • UCOS

Hardware-MAIN BOARD LAYOUT:

-LCD / TFT / Display / Screen-

4.3 inch touch screen-H43 (Resistance)

• Model name: HSD043I9W1
• Touch: Resistance
• Display resolution: 480*272(16:9 diagonal)
• Size: 110mm*88mm
• Display mode: Normally white
• Pixel arrangement: RGB vertical stripe
• Backlight: LED Side-light type
• Power: 5V/1A
• Surface treatment: Anti-Glare
• Color: 8-bit color depth with 256 gray-scale , parallel 24-bit RGB data input
• Other: with White Frame

-Manual content list:

-Package List:

—————————–

1 x S3C2440 board (Preload with Linux)
1 x Serial cable
1 x Net cable
1 x USB cable
1 x 5V power adapter
1 x Parallel port wiggler JTAG emulator(for H-JTAG)
1 x DVD-ROM with product reference
1 x TFT LCD: 4.3inch 480×272, with touch panel

Remark: From 2014.01,we update superboot, and it can use miniTools or SD card to burn OS yourself more sufficiently and easily. we suggest do not burn system with old way, like supervivi .

Remark: Profoma invoice is very important and necessary, and please let us know the declared content and value that will be written in Proforma invoice after payment but before shipment.

(if need any module, click the link and add to cart to buy together)

USD 5.06/pieceUSD 48.89/pieceUSD 5.66/piece

– Referrent product-

– Attention- Profoma invoice is very important and necessary, and please let us know the declared content and value that will be written in Proforma invoice after payment but before shipment.

We do not responssible for any customs tax or any other extra fee happend on your country’s customs.
