FriendlyARM S5PV210 Cortex A8 Development Board , TINY210 SDK+7inch Resistance Touch Screen,512MRAM+512M SLC Flash, Android4.0

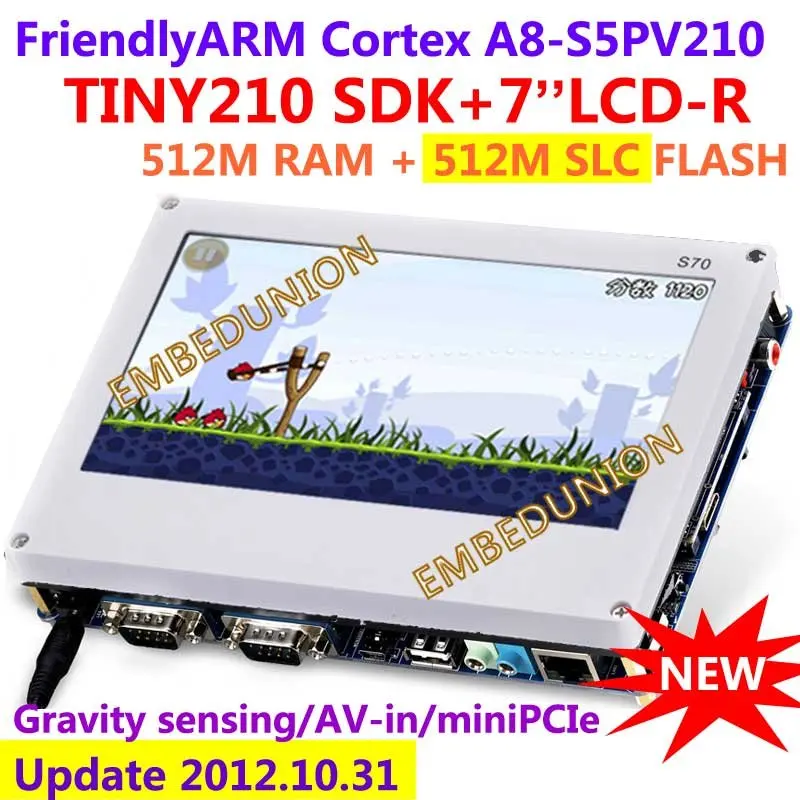

Cortex A8 Board S5PV210 TINY210 SDK + 7” Resistance Touch Screen

512M RAM + 512M SLC NAND FLASH

_^*****Note: This board is not completed open source ! Not recommand for beginners._^*****

—————————————————————————————————————————————

The Tiny210 Single Board Computer is a high-performance controller board introduced. It is designed based on the S5PV210 microcontroller, 512MByte DDR2 RAM, 512M SLC Nand Flash,

RTC, Audio and net on board. It has integrated RS232, USB, Ethernet, Audio In/Out, Keyboard,LCD, HDMI, TV out, camera in, SDIO WiFi Module, SD card and more other functions on board.

So many hardware resources provided by the expansion board, it becomes a solid reference board for customer design.

We also offers a complete software development package to customers. The board supports linux2.6.35, Android2.3 operating system and is provided with complete basic drivers which enable a quick channel to evaluate the Samsung S5PV210 processor and customize application software. Itwould be an ideal development platform for multimedia and communication applications.

-Main Features-

• CPU

  Samsung S5PV210, based on CortexTM-the A8, 1 GHz frequency
  Inside PowerVR SGX540 high-performance graphics engine
  2 D / 3 D graphics acceleration
  Support MAX 1080 p @ 30 FPS hardware decoding video smooth playback, format for MPEG4, h. 263, h. 264, etc
  Support MAX 1080 p @ 30 FPS hardware encoding (mpeg-2 / VC1) video input
  DDR2 RAM: 512MB, 32bit data bus, 200MHz

• FLASH: 512M SLC NAND Flash

• Software:

Superboot-210
Android 2.3 + Linux-2.6.35
Android 4.0
Linux-2.6.35 + Qtopia-2.2.0/Qt-4.4.3/Qt-4.7

Remark: If with Capacitive touch display, only can use Android or Linux till now.

-Specification-

Tiny210 Stamp Module:

• On-board resources

4 x User Leds(Green)
1 x Power Led(Red)
2 x 60 Pin 2.0mm space DIP connector
1 x 30 Pin 2.0mm space DIP connector
1 x 51 Pin 1.0mm space SMD connector

HDMI interface

• Mechanical: Dimension: 64 x 50 x 11mm

TINY210 SDK-base board:

• Serial Port: 2 RS232(DB9), 4 TTL
• Interrupt style keys: 8
• RJ45 Ethernet port: NIC using DM9000AEP, 10/100M adaptive
• Audio input and output: 1 3.5mm audio output; 1 microphone input.
• USB Slave: 1 miniUSB 2.0 specification
• USB Host 2.0: 3
• SD adaptor: 1
• ADC input: 6, which AIN0 connected out resistance in the plate can be used to test
• AV IN: 1, for CCD camera
• Buzzer: 1, control by the PWM0
• EEPROM: 256 Byte for I2C test
• Gravity sensing IC
• LCD Interface
  • 2 LCD interface, LCD2, LCD3,40Pin, 0.5mm Pitch Chip Block, support front-line precision touch
  • 1 LCD interface, LCD1, 45Pin, 0.5mm Pitch Chip Block, support based on 2IC, front-line precision touch
  • 1 LCD interface, LCD4, 40Pin, 2.0mm, no weld
  • miniHDMI type C: interface on the core module
  • LCD support 3.5”-12.1” full color TFT display, up to 1024*768 resolution

• SDIO interface: used to connect the SD WiFi module and other
• The CMOS Camera: used to connect CMOS camera
• RTC clock: with a backup battery (according to different regions or time periods, mailing may remove the battery)
• PCB size: 180 x 130mm, can be easily fixed all kinds of LCD modules, especially the 7-inch LCD module
• Power supply: DC-5V, interface DC-23B

-Hardware-

• Tiny210 Stamp Module:

• TINY6410 SDK-base board:

-LCD-

7 inch touch screen-S70 (resistance)

• Touch: resisitance
• Display resolution: 800*480
• Size: 180mm*130mm
• Backlight: adjustable
• Power: 5V/2A
• Other: with white Frame

-Package list-

1. Tiny210 SDK board and with Stamp module ( Preload with Android4.0) x 1
2. TFT LCD: 7″ 800×480 x 1
3. DB9 Serial Converter x 1
4. miniUSB cable x 1
5. Net cable x 1
6. 5V power adapter x 1
7. DVD-ROM with product reference (1) User Manual (2) core board schematics (3) backplane schematicdiagram, are in pdf format) x 1
8. Touch Pen for touch panel x 1

Remark: Preload with Android4.0, if want to change/reburn Board System, SD card is nessesary. If with Capacitive touch display, only can use Android or Linux till now.
