FriendlyARM S5PV210 Cortex A8 STAMP Smart210 / TINY210 V2 Core Module 512M RAM+512M Flash Core Board Android4.0 Linux Wince

Cortex A8 Board S5PV210 Smart210 (TINY210 V2) Core Module STAMP MODULE

512M RAM + 512M SLC NAND FLASH

_^*****Note: This board is not completed open source ! Not recommand for beginners._^*****

—————————————————————————————————————————————

The Tiny210 V2 and Tiny210 Single Board Computer is a high-performance controller board introduced. It is designed based on the S5PV210 microcontroller, 512MByte DDR2 RAM, running frequency can be as high as 1G HZ.

S5PV210 internal integration of the PowerVR SGX540 high-performance graphics engine, support 3 d graphics to run smoothly, and can play 1080 p large size hd video, fluent run Android, Linux and WinCE6 advanced operating system, very suitable for development of high-end content networked terminal, advertising multimedia terminal, intelligent household, high-end monitoring system, game control panel equipment ect..

Compared to the old TINY210 core module, TINY210 V2 core module shows higher integaration performance, which integrated enthernet card and audio card on it. Compared to the old version, there’re more CPU function pin (208 pin, the old version is 180pin) .

Standard NAND FLASH is 512M SLC .There’re more optional configuration, support 256M/512M/1G/2G NAND FLASH, could couple with different size of resistance or capacitive display.

-Main Features-

• CPU

  Samsung S5PV210, based on CortexTM-the A8, 1 GHz frequency
  Inside PowerVR SGX540 high-performance graphics engine
  2 D/3 D graphics acceleration
  Support MAX 1080 p @ 30 FPS hardware decoding video smooth playback, format for MPEG4, h. 263, h. 264, etc
  Support MAX 1080 p @ 30 FPS hardware encoding (mpeg-2 / VC1) video input
  DDR2 RAM: 512MB, 32bit data bus, 200MHz

• DDR2 RAM:

size: 512M, 32bit, single channel,200Mhz

• FLASH: 512M SLC NAND Flash

• Software:

Superboot-210
Android 2.3 + Linux-2.6.35
Android 4.0(offer Linux-3.0.8 core source code)
Linux-2.6.35 + Qtopia-2.2.0/Qt-4.4.3/Qt-4.7
WindowsCE.NET 6.0(R3)

-Specification-

Smart210 / Tiny210 V2 Stamp/Core Module:

• On-board resources

4 x User Leds(Green)
1 x Power Leds(Red)
Ethernet Chip: DM9000AEP
Audio Chip: WM8960
Supply Voltage: 2V~6V
2 x 70 Pin 2.0mm space DIP connector
2 x 34 Pin 2.0mm space DIP connector

• Mechanical: 6 layers high density PCB

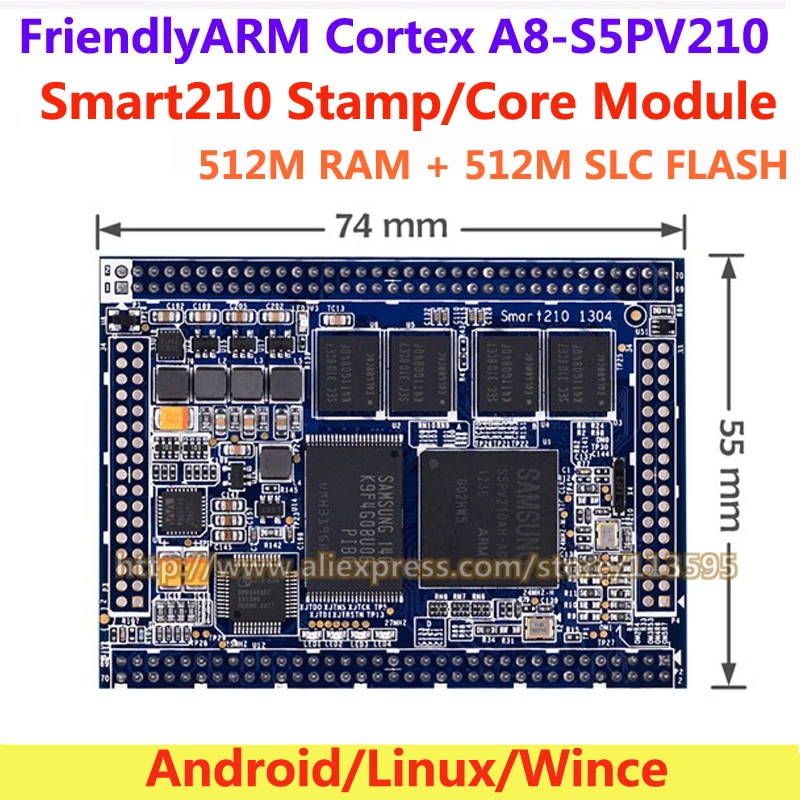

• Dimension: 74 x 55 x 10mm
• TINY210V2 Compared to TINY210

-Hardware-

• Smart210 / Tiny210 V2 Stamp/Core Module:

-Package list-

1. Tiny210 V2 Stamp module ( Preload with Android4.0) x 1

Remark: Preload with Android4.0, if want to change/reburn Board System, Base board and SD card are nessesary.
