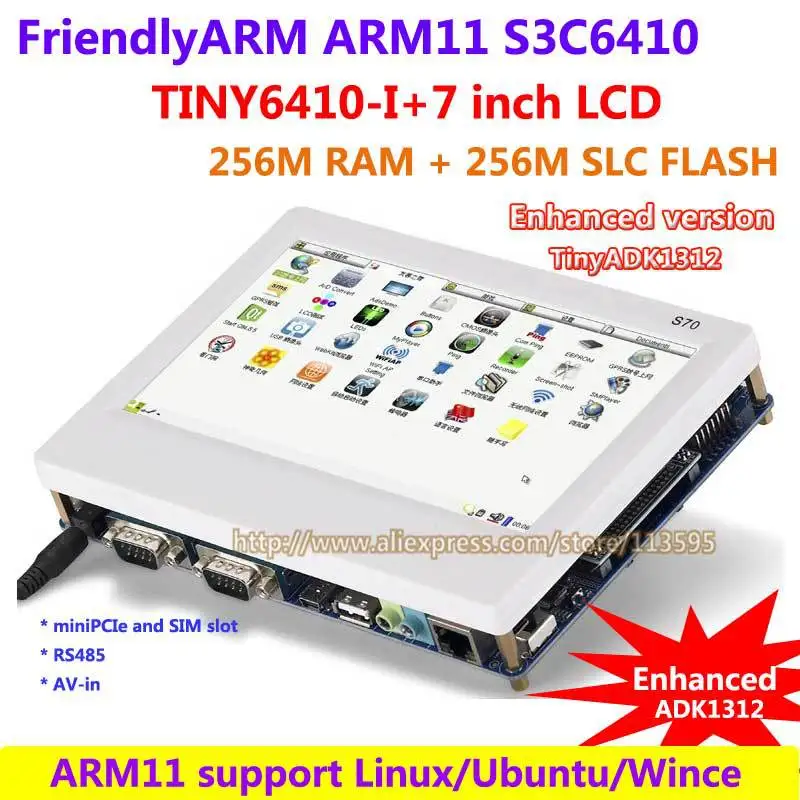

FriendlyARM Samsung S3C6410 Enhanced TINY6410 + 7 inch touch TFT 256M RAM 256M Flash, miniPCIe Av-in ARM11 Development Board
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
ARM11 S3C6410 Enhanced TINY6410 ADK1312 + 7” TFT Touch Screen
256M RAM + 256M SLC NAND FLASH Development board
————————————————————————————————————————
-Main Features-
- ARM11 Samsung S3C6410, ARM1176JZF-S, up to 533MHz
- 256MB DDR RAM and 256M SLC NAND FLASH
- LCD/Touch Screen, CVBS/TV, Audio support
- SD card, USB Host/OTG support
- Ethernet, serial port, GPIO
- GPRS/WIFI/GPS/Camera/3G module/USB Bluetooth support (option)
- Linux 2.6.28, WinCE6.0, Ubuntu support
- Support Android 2.3
- Source code provide (not completed open source )
-Specification-
Tiny6410 Stamp Module:
- Dimension: 64 x 50 mm
- CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S with VFP-Unit and Jazelle (max freq. 667 MHz)
- RAM: 256 MB DDR RAM, 32 bit Bus
- Flash: 256M SLC NAND Flash
- Serial, SPI, USB, LCD, CMOS Camera Interface
- Analog Input and Output
- User Outputs: 4x LEDs
- Expansion headers (2.0 mm)
- Debug: 10 pin JTAG (2.0 mm)
- OS Support
- Windows CE 6
- Linux 2.6
- Android
- Ubuntu
Base board – TINY6410 ADK1312 , Enhanced version :
-Hardware- Tiny6410 Stamp Module:
Base board – TINY6410 ADK1312 , Enhanced version :
-LCD-
7 inch touch screen-S70 (resistance)
- Touch: resisitance
- Display resolution: 800*480
- Size: 180mm*130mm
- Backlight: adjustable
- Power: 5V/2A
- Other: with white Frame
-
-Package list-
- Tiny6410 board ( ADK1312+STAMP board, Preload with Linux) x 1
- TFT LCD: 7″ 800×480 x 1
- DB9 Serial Converter x 1
- USB cable x 1
- Net cable x 1
- 5V power adapter x 1
- DVD-ROM with product reference x 1
- Touch Pen for touch panel x 1
Remark: Preload with LINUX , if want to change/reburn Board System, SD card (at least up to 4GB ) is nessesary. can support Android, but the speed will be slow, if use Android , suggest choose higher performance board, like Smart210, Tiny4412/Super4412 .
-Modules optional purchase for this product –
(if need any module, click the link and add to cart to buy together)
SD WIFIUS$ 36.89/piece |
CMOS CameraUS$ 28.89/piece |
HD Webcam Camera C270 , 720PUS$ 40.66/piece |
USB 2.0- RS 232 ConverterUS$ 4.66/piece |
VGAUS$ 48.89/piece |
|
– Attention-
Profoma invoice is very important and necessary, and please let us know the declared content and value that will be written in Proforma invoice after payment but before shipment.
We do not responssible for any customs tax or any other extra fee happend on your country’s customs.
