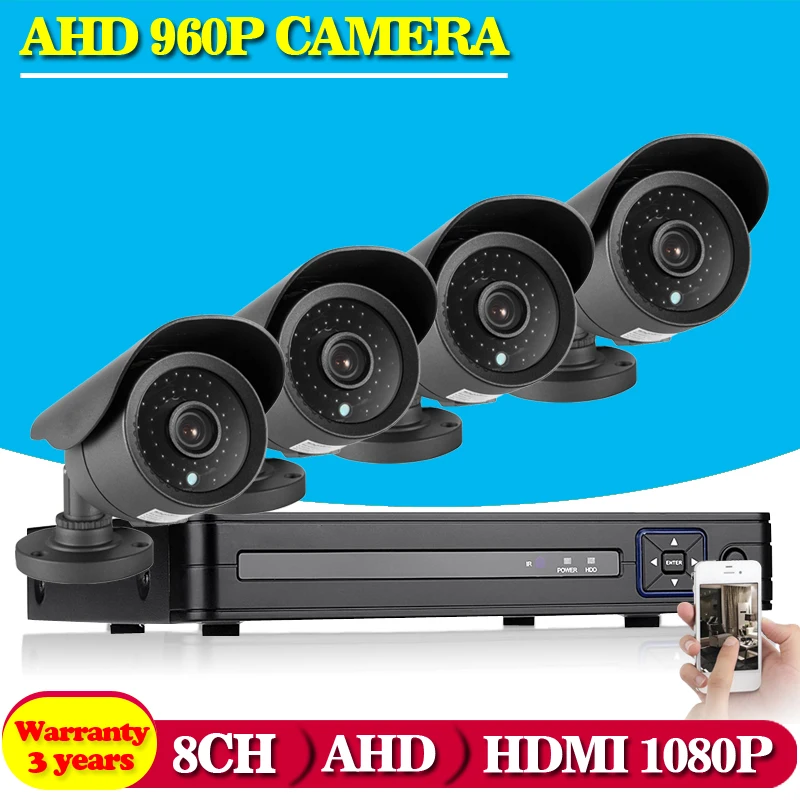

HD 8CH AHD 960P DVR Recorder 4PCS AHD 960P 1.3MP Outdoor Waterproof Cameras CCTV System Kit 8 Channel Video Surveillance System
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
- 4pcs HD 1.3MP/960P/2500TVL CCTV Cameras;
- 8CH AHD-NH 1080N Hybrid AHD DVR Recorder;
- Strong Network Server;
- With P2P Cloud Function;
- support USB ,Mouse,backup;
- Support VGA output&HDMI output(1080P);
- Record Resolution:8CH AHD 1080N(960*1080);
- With H.264 High efficiency Video Compression;
- Auto White Balance,Auto Gain control,back light comp;
- HDD Interface:SATA,Support between 250GB and 4TB;
- Multi-language menus option up to 28 kinds of language;
- 1 X 8CH AHD-NH 1080N HDMI 1080P Hybrid Digital AHD DVR recorder
- 4 x HD 1.3MP 960P 2500TVL indoor outdoor IR Day Night vision waterproof cameras
- 4 X 65feet(20m) cctv video cable for camera
- 1 x power adapter for cameras
- 1 x power adapter for DVR
- 1 X 1 to 4 power splitter cable
- 1 X USB Mouse for DVR
- 1 X Software CD for DVR
- 1 X Remote Control for DV
- no HDD Included!!!!!
- 1080N AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras
- 8CH AHD 1080P DVR System Support: DVR / NVR / HVR 3 IN 1(AHD Camera/Analog Camera/IP Camera)
8CH 1080N High-definition interface output,Support for online playback,Mobile remote,Multi-window display With 1080N resolution,the angle will be more larger,and the image will be more clearer.
1> Connect the Camera to DVR
2> Connect the DVR to Network
3> Scan QR for Mobile APP
4> Scan QR for S/N via APP and Enjoy Live Viewing
- View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy
View on HDMI Monitor
Easily display video through the HDMI port of your computer monitor to take full advantage of the security system’s
clarity. (HD Cable Not Included)
View on TV or PC Monitor
For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.
VGA or BNC to RCA cable is not included.
- No matter day or night, 24 hour monitoring prevents theft.
- Instant Email Alerts if Activity Detected
This business surveillance system is designed to send an email alert, complete with photo the activity,if any motion is detected,or if any camera experiences video loss.
- Advanced Motion Detection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events.
You can even ensure that false alarms are avoided by setting the motion detection”mask”to block areas with constant movement.
- Easy USB Backup
A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive .2 USB 2.0 port for Mouse and backup operation convenience.
- Support Multi-language menus option up to 28 kinds of Language..
NOTICE: This camera must work with AHD DVR. Thank you .
Best choice for project reconstruction!!You can upgrade an existing analog security system
to 1.0MP/1.3MP/2.0MP HD camera system without changing cable routes.
1) Applying high performance sensor, the image is clear and delicate
2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion
3) Analog HD 960P @AHD video output
4) Support OSD menu, can be freely adjusted in image and function
5) Transmission distance up to 500 meters
6) Support ultra low illumination
7) Support automatic electronic shutter function, adapting different monitoring environment
8) IR distance : 35 meters
9) Camera lens : 3.6mm
- High resistance weatherproof camera
- camera can be installed outdoor or indoor.
- all the cameras are designed with high quality materials to prevent heavy rain and other extreme weather conditions.
- all of our cameras are manufactured utilizing high grade materials to help prevent dust accumulation fog and rusting.
- our cameras are designed to be fully operative against heavy rain and extreme weather conditions.
- the camera can be installed in any indoor or outdoor settings.
- Supports Automatic White Balance Function
The camera comes with white balance function,so captured the picture more clear and easy to see.
- IP66 Professional outdoor weatherproof
Camera used high quality metal materials,can effectvely prevent rust.can be installed in almost any indoor or outdoor places.
- High Resolution Camera with Built-in IR-Cut
More Clear & More Real
AHD-NH 1080N DVR Specifications:
|Operating System||embedded Linux|
|System Resources||Simultaneous multi-channel real-time recording, playback, network operation, USB backup|
|Interface||User interface||support 16-bit true color graphical menu interface and mouse operation|
|Video||Video compression||H.264(High Profile); JPEG snapshot|
|Display quality||VGA,HDMI: HD|
|Playback quality||AHD-H / AHD-M / D1|
|Encode capacity||8*AHD-NH / 8*AHD-M|
|Decode capacity||4*AHD-NH / 8*AHD-M|
|Multi-mode input||Analog input: 8*AHD-NH(1080P)|
|Digital input: 8*1080P; 16*960P|
|Hybrid input: 4*AHD-NH(analog) + 4*1080P(network),|
|Motion Detection||Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)|
|Record & playback||Record mode||manual>alarm>motion detection>timing|
|search mode||Time/calendar/event/channel search|
|Storage & backup||Space occupation||Video 1080P: 20G-30G/ day*channel|
|Audio 691.2M/ day*channel|
|Backup mode||Network, U-disk, USB burner, SATA burner|
|Interface||Video input||8ch BNC|
|Video output||1ch VGA, 1ch HDMI|
|Audio input||4ch RCA|
|Audio output||1ch RCA|
|Network interface||RJ45 10M/100M|
|PTZ control||1*RS485, Support multiple PTZ protocols|
|USB||2* USB 2.0|
|HDD||1*SATA port (Max 4TB/per)|
|Wireless||3G, WIFI (extension via USB)|
|Other||Power supply||12V2A or 12V/4A|
|Power Consumption||<15W (without hard drive)|
Image sensor:1/3″inch SONY CCD
Day/Night Mode:Color During day/switches to B&W at night
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Operating Temperature:-25°F~122°F / -32°C ~50°C
Operating Power:DC 12V
Minimum Illumination: 0.0 Lux
Body Construction:Bullet with Built-in Wall Mount
Distance:Up to 35m
IR Cut Filter:yes
Number of IR Lens:36pcs
Note: If need us declare a low value of invoice for customs duty, pls leave us a message and tell us how much it’s better for your order, thanks for your cooperation.
We will send the goods out within 3 working days after your payment is verify by Aliexpress.
Currently, almost all products in our store are free shipping. Single camera via China post air mail as default. For DVR and security system, we support different logistics way to different countries. Please check the details on product description page.
Tracking No. will be provided within 2 business days after the shipment.
Buyers are responsible for additional COD charges, VAT, Brokerage Fees, Duty, or Customs Fees and Taxes.
If the products are detained by customs after the shipment has been left the seller’s country, the buyer is resonsible for clearance of the items.
We strive our best to provide you the most reliable, affordable way of shipping service. But sometimes it is highly depended on the shipping courier and local customs. If you do not receive your item on time, please contact us immediately for further assistance.
All merchandise we sell are in good quality and under strict examination before they are shipped out. We will try our best to avoid any quality problem.
We warrants this product against defects in workmanship and material for a period of 3 years from it’s original purchase date.
Any unit which proves defective during the warranty validation period will be repaired without charge for parts or replaced. The end user is responsible for all freight charges incurred to send the products to our repair center. The warranty does not cover any incidental, accidental or consequential damages arising from the use of. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party.
Item could be returned for refund or replacement within 30 days from the date you receive it. Returned merchandise must be unused, in original packaging and include all accessories. Original shipping costs are not refundable.
Before sending back any return items, please contact with us for a a Return Merchandise Authorization (RMA). Any products returned to seller without an RMA will be void, and we will be sent back to the buyer at his/her expense. Customer should be responsible for all charges of returning and reshipping.
Return tracking number will be helpful to this process.
Our tech support will deal with the repaired products upon receipt of your return parcel. Please feel free to contact us for any product or service issues
We appreciate your business greatly. If you are satisfiated with our products and service, please leave us a Positive feedback and 5 Stars rating. Your recognition will make us more confident to develop our business and serve you better.
If you are not satisfied by any reason, please feel free to contact us through AliExpress message center before leaving negative feedback. Our customer service and tech support will do our best to offer you a proper solution.
