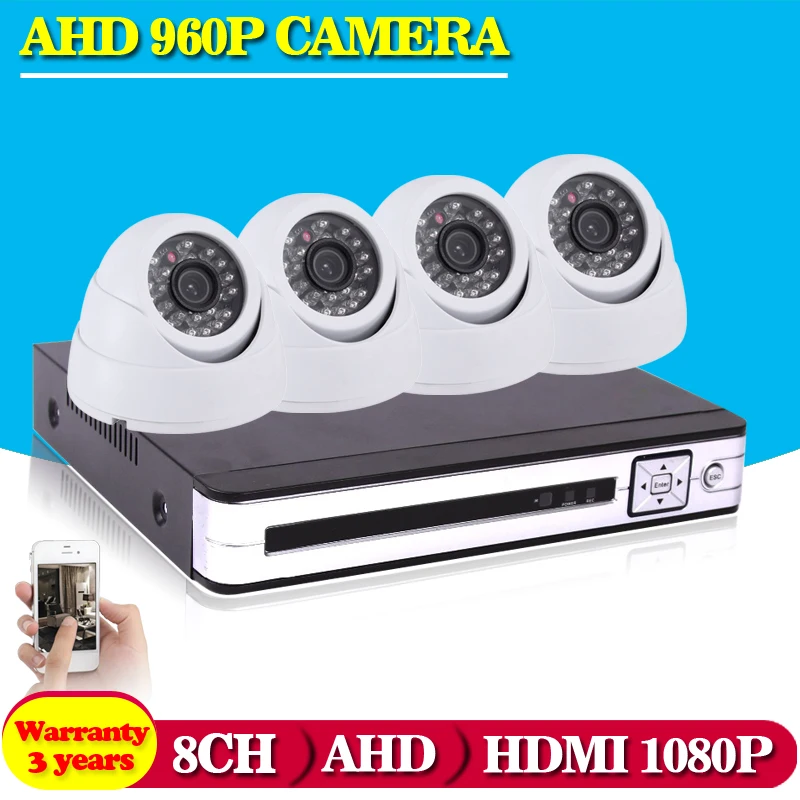

HD 8CH AHD CCTV System Home Surveillacne DVR Kit Video Recorder 1080P 1080N 720P 4*1.3MP Indoor Security Camera System no HDD
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |
- 4pcs HD 1.3MP/960P/2500TVL CCTV Cameras;
- 8CH AHD-NH 1080N Hybrid AHD DVR Recorder;
- Strong Network Server;
- With P2P Cloud Function;
- support USB ,Mouse,backup;
- Support VGA output&HDMI output(1080P);
- Record Resolution:8CH AHD 1080N(960*1080);
- With H.264 High efficiency Video Compression;
- Auto White Balance,Auto Gain control,back light comp;
- HDD Interface:SATA,Support between 250GB and 4TB;
- Multi-language menus option up to 28 kinds of language;
- 1 X 8CH AHD-NH 1080N HDMI 1080P Hybrid Digital AHD DVR recorder
- 4 x HD 1.3MP 960P 2500TVL indoor outdoor IR Day Night vision cameras
- 4 X 65feet(20m) cctv video cable for camera
- 1 x power adapter for cameras
- 1 x power adapter for DVR
- 1 X 1 to 4 power splitter cable
- 1 X USB Mouse for DVR
- 1 X Software CD for DVR
- 1 X Remote Control for DV
- NO HDD Included!!!!!
- 1080N AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras
- 8CH AHD 1080P DVR System Support: DVR / NVR / HVR 3 IN 1(AHD Camera/Analog Camera/IP Camera)
-
8CH 1080N High-definition interface output,Support for online playback,Mobile remote,Multi-window display With 1080N resolution,the angle will be more larger,and the image will be more clearer.
1> Connect the Camera to DVR
2> Connect the DVR to Network
3> Scan QR for Mobile APP
4> Scan QR for S/N via APP and Enjoy Live Viewing
- View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy
View on HDMI Monitor
Easily display video through the HDMI port of your computer monitor to take full advantage of the security system’s
clarity. (HD Cable Not Included)
View on TV or PC Monitor
For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.
VGA or BNC to RCA cable is not included.
- No matter day or night, 24 hour monitoring prevents theft.
- Instant Email Alerts if Activity Detected
This business surveillance system is designed to send an email alert, complete with photo the activity,if any motion is detected,or if any camera experiences video loss.
- Advanced Motion Detection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events.
You can even ensure that false alarms are avoided by setting the motion detection”mask”to block areas with constant movement.
- Easy USB Backup
A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive .2 USB 2.0 port for Mouse and backup operation convenience.
- Support Multi-language menus option up to 28 kinds of Language..
English,Spanish,German,French,Russian,Japanese….etc.
NOTICE: This camera must work with AHD DVR. Thank you .
Best choice for project reconstruction!!You can upgrade an existing analog security system
to 1.0MP/1.3MP/2.0MP HD camera system without changing cable routes.
1) Applying high performance sensor, the image is clear and delicate
2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion
3) Analog HD 960P @AHD video output
4) Support OSD menu, can be freely adjusted in image and function
5) Transmission distance up to 500 meters
6) Support ultra low illumination
7) Support automatic electronic shutter function, adapting different monitoring environment
8) IR distance : 35 meters
9) Camera lens : 3.6mm
- Supports Automatic White Balance Function
The camera comes with white balance function,so captured the picture more clear and easy to see.
- High Resolution Camera with Built-in IR-Cut
More Clear & More Real
AHD-NH 1080N DVR Specifications:
System | Main processor | Hi3521 |
Operating System | embedded Linux | |
System Resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | User interface | support 16-bit true color graphical menu interface and mouse operation |
Preview screen | 1/4/8/9 | |
Video Standard | PAL/NTSC | |
Video | Video compression | H.264(High Profile); JPEG snapshot |
Display quality | VGA,HDMI: HD | |
Playback quality | AHD-H / AHD-M / D1 | |
Encode capacity | 8*AHD-NH / 8*AHD-M | |
Decode capacity | 4*AHD-NH / 8*AHD-M | |
Multi-mode input | Analog input: 8*AHD-NH(1080P) | |
Digital input: 8*1080P; 16*960P | ||
Hybrid input: 4*AHD-NH(analog) + 4*1080P(network), | ||
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Playback | 4ch | |
search mode | Time/calendar/event/channel search | |
Storage & backup | Space occupation | Video 1080P: 20G-30G/ day*channel |
720P: 20G/day*channel | ||
960H:12~20G/ day*channel | ||
Audio 691.2M/ day*channel | ||
Video Storage | 3.5”HDD&Network | |
Backup mode | Network, U-disk, USB burner, SATA burner | |
Interface | Video input | 8ch BNC |
Video output | 1ch VGA, 1ch HDMI | |
Audio input | 4ch RCA | |
Audio output | 1ch RCA | |
Network interface | RJ45 10M/100M | |
PTZ control | 1*RS485, Support multiple PTZ protocols | |
USB | 2* USB 2.0 | |
HDD | 1*SATA port (Max 4TB/per) | |
Wireless | 3G, WIFI (extension via USB) | |
Other | Power supply | 12V2A or 12V/4A |
Power Consumption | <15W (without hard drive) | |
Temperature | -10-+55 | |
Humidity | 10%-90% | |
Language | multi-language(English,Spanish,Russian,etc…) | |
USB Mouse | included | |
remote control | included | |
Dimension | 250mm(length)*235mm(width)* 45mm(height) | |
Weight | 1.5KG |
Camera Specifications:
Video
Image sensor:1/3″inch SONY CCD
Video quality:1.3MP/960P/2500TVL
Lens:3.6mm lens
Day/Night Mode:Color During day/switches to B&W at night
General
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Operating Temperature:-25°F~122°F / -32°C ~50°C
Operating Power:DC 12V
Weatherproof:yes
Minimum Illumination: 0.0 Lux
Body Construction:Bullet with Built-in Wall Mount
Night Vision
Distance:Up to 35m
IR Cut Filter:yes
Number of IR Lens:24pcs
