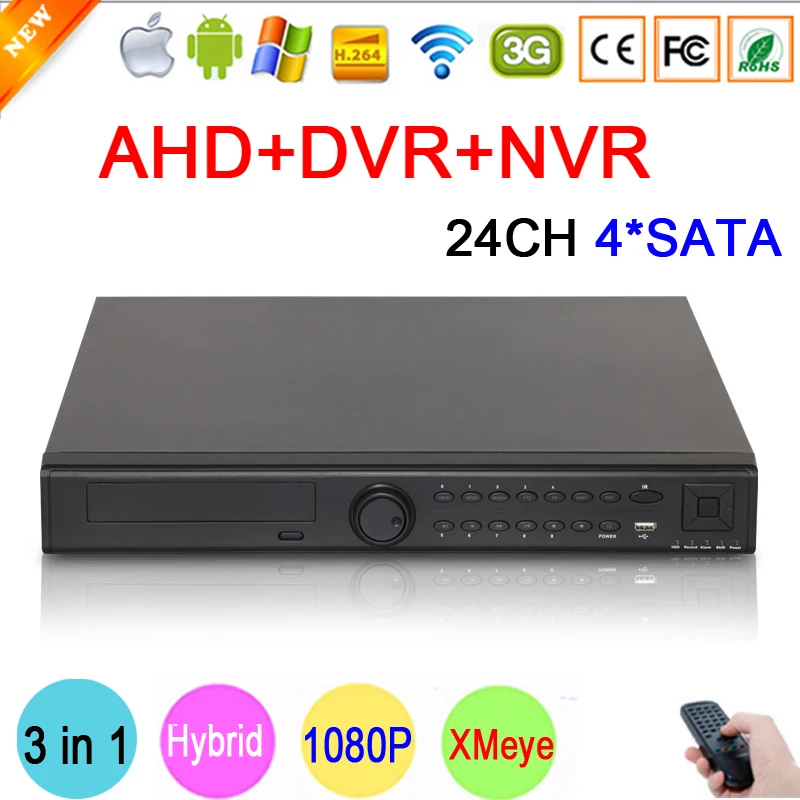

Hi3531A 24CH 4 SATA 1080P/1080N/960P/720P/960H Three in One Hybrid Coaxial NVR AHD DVR Surveillance Video Recorder Free Shipping

Hi3531A 24CH 4 SATA 1080P 1080N 960P 720P 960H Three in One Hybrid Coaxial NVR AHD
Click to see details
Hi3531A 24CH 4 SATA 1080P 1080N 960P 720P 960H Three in One Hybrid Coaxial NVR AHD
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $346.00 / piece
Sale price:  US $245.66 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

  • analog: 24*1080N(analog)
  • hybrid: 8*1080N(analog)+8*960P(network)
  • Network only:32*1080P;16*3M;8*5M

Q:What is 1080N AHD-NH DVR?

A:

  1. 1080N AHD-NH Coaxial DVR is new format AHD DVR;
  2. Resolution is 960*1080;
  3. Support 2 million pixels(1080P/AHD-H),1.3 million pixels(960P/AHD-M), 1 million(720P/AHD-M) pixels AHD Camera; Analog Camera(960H) and IP Cmaera(2mp/3mp/5mp).

Q: What is 3 in 1 function? A: 3 in 1 means that support AHD(AHD Camera),DVR(analog) and NVR(IP Camera).

24CH Hybrid 3 in 1 NVR AHD CCTV DVR Screen Picture:

  • support 24 Channels 1080N front-end real-time encoding;
  • Support VGA,HDMI output homology;
  • 1.5U chassis,four SATA interfaces(up to 24T);
  • 10/100/1000Mbps adaptive Ethernet port,RJ45 port
  • Automatic networking support,a key to add equipment;
  • Onvif protocol support,third-party devices can be connected;
  • Support GB28181 support for third-party internet protocol access(optional);
  • Support cloud services,network penetration,push alarm function;
  • Support remote access,comes with domain name service functions(ARSP);
  • Support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,3G,WIFI,IP search,alarm center,etc;
  • Support mobile phone monitoring(iOS,Android);
  • Support multiple browser access(IE,Chrome,Firefox,Safari);
  • Support for more than twenty languages,to break the national boundaries;
  • Perfect protection circuit,unique triple watchdog function;
  • Supporting WEB,CMS,VMS,MYEYE platform that provides SDK development;
Model ADVR7024F-M-V2(4*SATA)
System Main processor Hi3531A
Operating system embedded Linux
System resources Simultaneously multi-channel real-time recording, playback, network operation, USB backup
interface Operator interface support 16-bit true color graphical menu interface and mouse operation
Video Codec H.264
Monitor quality VGA,HDMI:HD
Encode ability 24*1080N
Decode ability 8*1080N
Multi-mode input analog: 24*1080N(analog)
hybrid: 8*1080N(analog)+8*960P(network)
Network only:32*1080P;16*3M;8*5M
Audio Audio compression G.711A
Intercom support
Record & playback Record mode manual>alarm>motion detection>timing
Local Playback 8ch
Storage & backup Space occupation 720P ~20G/ day*channel ;960H 12~20G/ day*channel;
audio:691.2M/ day*channel
Video storage HDD, network
Backup mode Network, USB hard disk, USB burner, SATA burner
External Interface Video input 24CH BNC
Video output 1ch VGA,HDMI
Audio input 16RCA
Audio output 1RCA
Alarm input 16
Alarm output 4
Network interface RJ45 10M/100M self-adaption
PTZ control 1*RS485, Support kinds of PTZ protocols
USB 2* USB 2.0 ports
HDD 4*SATA ports (Max 6TB/per)
General Power supply 12V6A
Power Consumption <72W (without HDD)
Temperature 0-+55
Humidity 10%-90%
Working environment 86kpa—106kpa
Dimension 440*440*60(mm )
Weight 6kg
