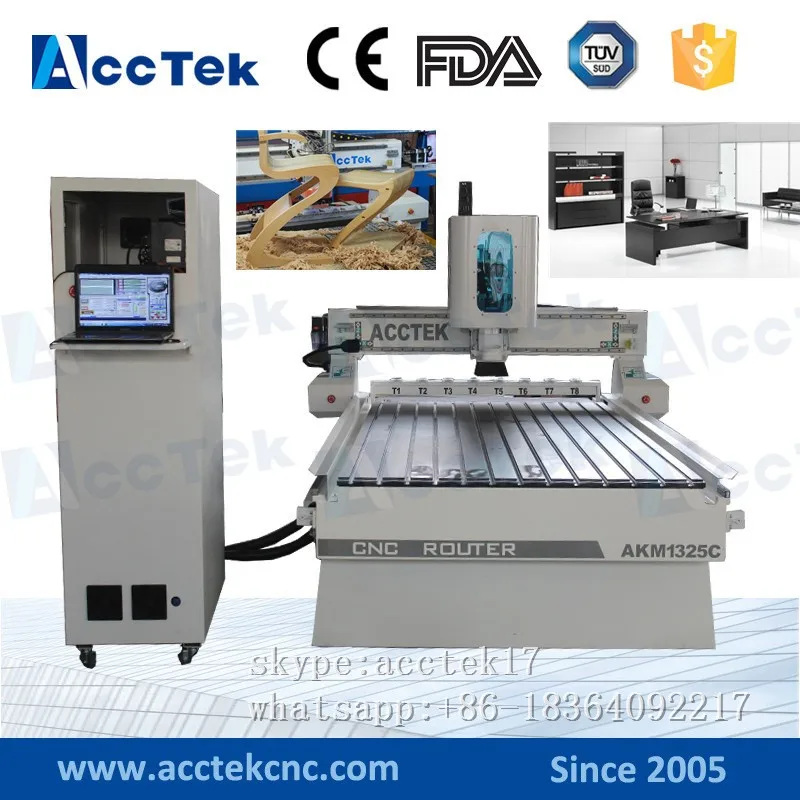

High precision linear auto tool changer cnc machine, atc cnc wood lathe machine
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
High precision linear auto tool changer cnc machine, atc cnc wood lathe machine
Applications
1.It is widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting,3D embossment and so on.
2.Configured with imported tool magazine of 8 tools the machine can change tools speedy and freely.
3.Tool sensor enables the machine compensate the tolerance of the tool length.
4.Vacuum working table with double cavities and Bakelite material with high absorption power.
5.Imported control system, separated keyboard control, color LCD display add No.25 Hiwin linear guide rail and rack from Taiwan .
Technology Parameters:
|
Working Area: |
1300x2500x250mm |
|
Spindle Type: |
Air cooling spindle ,with automatic tool changer function |
|
Spindle Power |
4.5KW ATC spindle motor |
|
Spindle Rotating Speed |
0-18000rpm |
|
Power (except spindle power) |
5.8KW (include powers of: motors, drivers, inverters and so on) |
|
Power Supply: |
AC380±10, 50 HZ |
|
Worktable: |
Vacuum Table and T-slot |
|
Driving Syestm: |
Delta servo motors and drivers |
|
Transmission: |
X,Y :Gear rack, HIWIN square guide rail, Z: ball screw TBI and hiwin square guide rail |
|
Locating precision: |
<0.01mm |
|
Min Shaping Character: |
Character:2x2mm,letter:1x1mm |
|
Operating Temperature: |
5°C-40°C |
|
Working Humidity |
30%-75%(without condensed water) |
|
Working Precision |
±0.03mm |
|
System Resolution |
±0.001mm |
|
Control Configuration: |
Weihong DSP |
|
Data Transfer Interface: |
USB |
|
System Environment: |
Windows 7 |
|
Spindle Cooling Way: |
Air cooling by fan |
|
Inverter: |
Delta |
|
Limited Switch: |
High sensitivity limited switches |
|
Graphic Format Supported: |
G code: *.u00, * mmg, * plt, *.nc |
|
Compatible Software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares…. |
|
Cutting Thickness: |
0-40mm also (depends on different material) |
|
Z Tool Censor: |
yes |
|
Packing |
Plywood case (veneer wood case for export) |
|
Optional parts |
1. Water cooled type spindle (China or Italian brand air spindle) 2. Smaller power spindles 3. Mist spay cooling system 4. Double-head or multi-heads 5. Other control system:DSP, Mach3 ,OSAI etc 6.Chinese water vacuum pump, oil free vacuum pump or German vacuum pump 7.Servo motors (China or Japan brand) 8.Rotay with diamater 80mm,125mm,150mm,200mm,300mm 9.Dust collector 10.Other features could be customized accordingly . |
Detail pics :
#The back of auto tool changer cnc router 1325:
#ATC spindle with safety hood
#Linear style 8 pieces of magazine tool changers in total ,with working lamp
#.Air water filter :
#.Control and driving system ,inner design of the machine frame :
Sample pics:
Service and warranty :
1).24 hours technical support by Email or Calling.
(Skype: cnc.help)
2). English manual and CD video for machine using and maintaining.
3). Hardware: 1.5 years on all parts (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
4).Engineers available to service machinery overseas
About payment:
We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.
By the way, we can’t make deal on AliExpress, because according to the regulations of AliExpress, the machines only can be sent to buyers by air,
and the volume must be very small, the package of our machine is too big. We can make deal by T/T or through alibaba .
Contact Information:
Ailsa Wang
E-mail:export 17(at)acctekgroup.com
Skype:acctek17
Whatsapp:+086-18364092217
URL: www.acctekcnc.com
