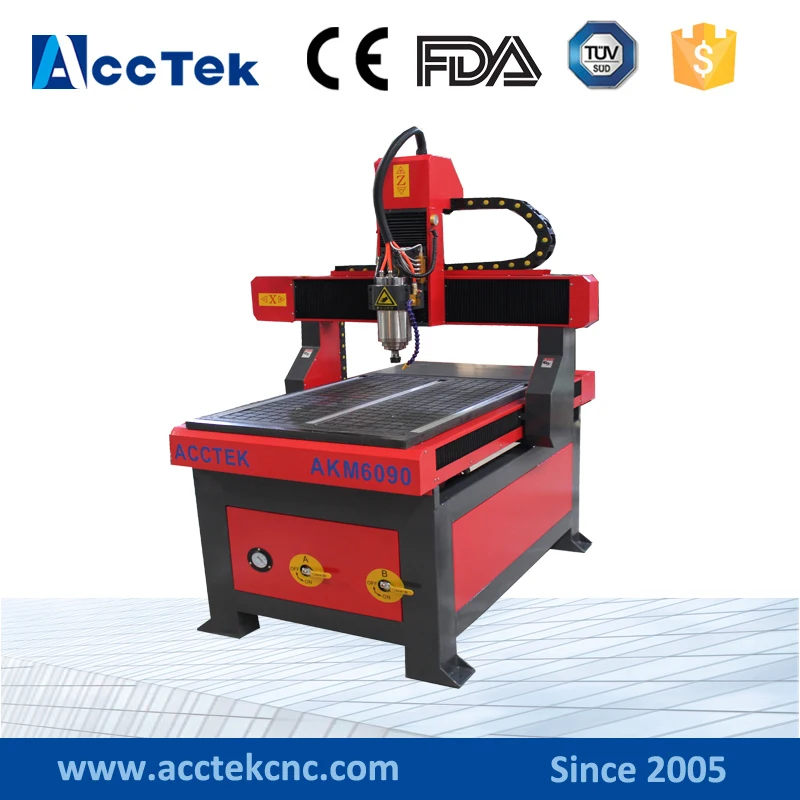

High precision mini portable wood cutting machine/wood carving duplicator
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
High precision mini portable wood cutting machine/wood carving duplicator
According to your working area, machine could be customized.
We have600x900mm,900x1500mm,1200x1200mm, 1200x2400mm or bigger.
Features
mini cnc router
This machine is specially designed for making musical instrument like: valine, guitar etc.
It can also be used for working on aluminum, wood, acrylic.etc.
1. Cast iron structure very heavy and stable, Net weight 560kgs.
2. Taiwan TBI ballscrew, makes the machine with high working accuracy.
3. Popular DSP 4 axis control system X,Y,Z axis and rotary axis can work at same time,very powerful function. It also has a hand held controller,with USB interface,
doesn’t need connect with computer,easy and convenient for every buyer.
4. Rotary device(4th axis),with rotary device, you can work on cylindrical objects.
Technical Parameters
|
Working area |
900*600*150mm |
|
Table |
Aluminum profile T-slot working table with PVC protection |
|
Spindle power |
1.5kw water cooling spindle,24000rpm |
|
Motor system |
Stepper motor system(option:servo motor) |
|
Control system |
MACH3 control, support USB interface |
|
Transmission |
TBI ballscrew from Taiwan |
|
Linear rail |
Taiwan HIWIN linear guide for XYZ axis |
|
Inverter |
FuLing inverter(option:Delta inverter fromTaiwan) |
|
Driver |
Ledshine driver(top brand in China) |
|
structure |
cast iron bed |
|
Speed |
Max travelling speed:6000mm/min |
|
Max working speed: 5000mm/min |
|
|
Switch |
Japanese OMRON Switch |
|
Cable |
Highly flexible towline;fire-resistant double-sheathed cable |
|
Software |
Type3,Artcam |
|
Package |
Plywood case |
|
Working voltage |
AC220V/1PH/50Hz (option:110V) |
Applications of mini cnc mrouter machine
mini cnc router
1. Mold industry: various large metalloid mould, especially suitable for automotive foam mold,
wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.
2. Instrument industry 3-d surface engraving and shape cutting of large-scale instruments
3. Sign, plastics, wood, molds, etc
4. Furniture, general woodworking manufacturing
FAQ
mini cnc router
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
Guaranty
mini cnc router
1.1.5 years quality guaranty, the machine with main parts (excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk is included.
Details of machine
mini cnc router
Spindle:1.5kw water cooling spindle
Tool sensor:convenience your process working.
on-off and emergency stop
Oil lubrication
Leadshine stepper driver
Blades for advertising work
Samples
CE
Contact information:
Ailsa Wang
E-mail:export 17(at)acctekgroup.com
Skype:acctek17
Whatsapp:+086-18364092217
URL: www.acctekcnc.com
