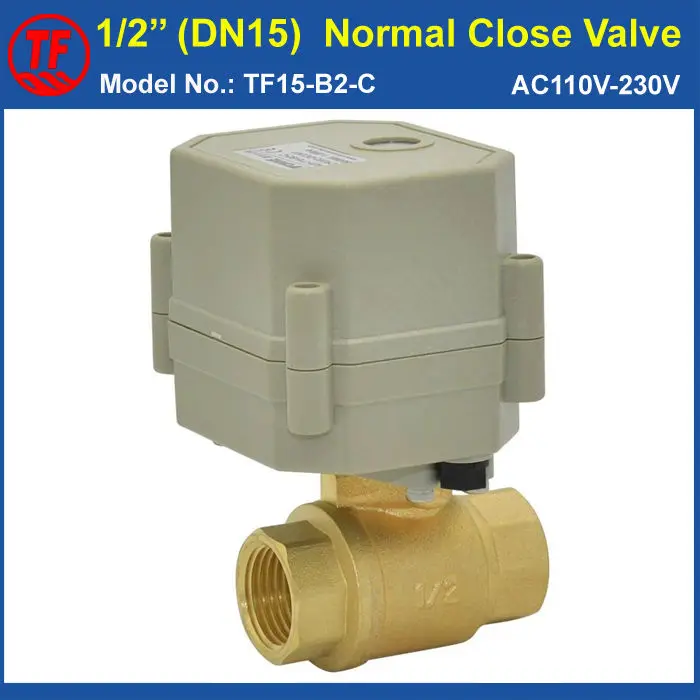

High Quality AC110-230V 2 Wires Normal Closed Valve BSP/NPT 1/2” (DN15) Brass Valve For HVAC Water Application
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |
Welcome to Our Store!
******************************************************************************************
1, Factory directly sales. We need 3-5 days for production.
2, Reply buyer’s questions within 8-24 hours.
3, 100% Chinese brand new and 1 year quality warranty.
Normal Closed Valve:
The valve stay at fully close position normally.
Valve open when you connect it to AC110V-230 power (110V, 220V).
Valve return to close position automatically after power off.
*********************************************************************************** * ******
WIRING DIAGRAMS:
******************************************************************************************
Description: Product size: BSP/NPT 1/2″, DN15 Valve Body Material: Brass Working Voltage: AC110V-230V Open/close Time: 5 Sec Wiring Control Methods: CR2 02 Wiring (Power Off Return) Maximum Working Pressure: 1.0MPa Circulation Medium: Fluid, Air Working Current: 80MA (500 mA shown on the lable means the minimum current of external power) Life time: 100,000 times Actuator Material: Engineering Plastics Sealing Material: EPDM & PTFE Actuator Rotation: 90° Max. Torque Force: 2 N.M Cable Length: 0.5m Environment Temperature: -15°~50° Liquid Temperature: 0°~95° Manual Override:NO Indicator: Yes Protection Class: IP67 *********************************************************************************** * ****** Demention Drawing:
******************************************************************************************
Applications:
HVAC
Fan coil
Central Air conditional System
Water Heter
solor Water heating
Water treatment
water automatic control Equipment
Replacing solenoid valve,particularly when solenoid cannot work reliably
******************************************************************************************
Product Photos:
