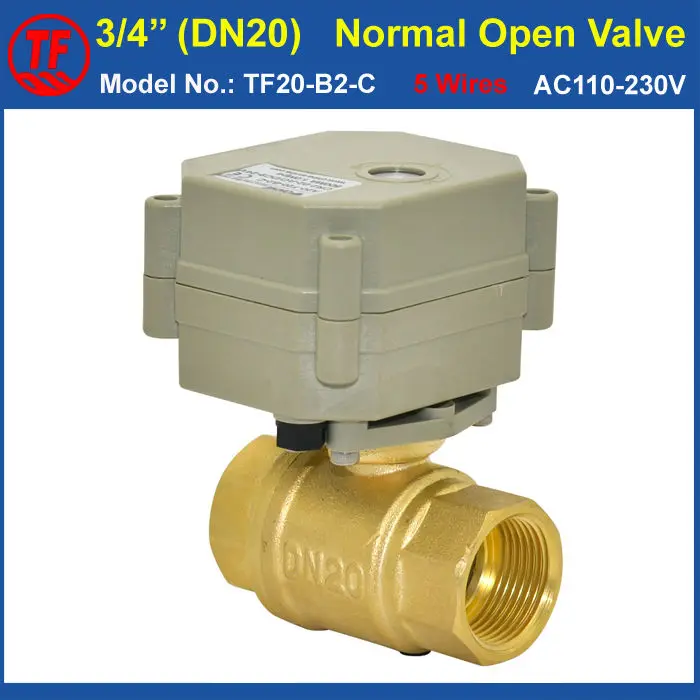

High Quality Metal Gear Normal Open Valve 2 Way Brass 3/4” (DN20) BSP/NPT Femal Thread AC110-230V 5 Wires With Signal Feedback
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Welcome to Our Store!
******************************************************************************************
1, Factory directly sales. We need 3-5 days for production.
2, Reply buyer’s questions within 8-24 hours.
3, 100% Chinese brand new and 1 year quality warranty.
****************************************************************************************
|
Model No.: TF20-B2-C |
Brand: TF |
|
Valve Size: DN20 (3/4”) |
Voltage: AC110V-230V |
|
On/Off Time: 5 Sec |
Pressure: Max 1.0Mpa |
|
Control Wiring: CR502 Wiring (5 Wires Normal Open) |
|
Normal Open Valve:
The valve stay at fully open position normally.
Valve turn to close position when connect it to AC110V-230V power.
Valve return to open position automatically after power off.
**************************************************************************************** Description: Product Model: TF20-B2-C (with position indicator) Key Words: Brass 3/4” Motorized Valve, 2 Way Electric Shut-off Valve
Product size: BSP/NPT 3/4″, DN15 Valve Body Material: Brass Working Voltage: AC110V-230V Open/close Time: 5 Sec Wiring Control Methods: CR5 02 (normal open with signal feedback) Maximum Working Pressure: 1.0MPa Circulation Medium: Fluid, Air Working Current: ≤80MA (500 mA shown on the lable means the minimum current of external power) Life time: 100,000 times Actuator Material: Engineering Plastics Sealing Material: EPDM & PTFE Actuator Rotation: 90° Max. Torque Force: 2 N.M Cable Length: 0.5m Environment Temperature: -15°~50° Liquid Temperature: 0°~95° Manual Override:None Indicator: Yes Protection Class: IP67 **************************************************************************************** WIRING DIAGRAMS:
**************************************************************************************** Demention Drawing:
****************************************************************************************
Applications:
HVAC
Fan coil
Central Air conditional System
Water Heter
solor Water heating
Water treatment
water automatic control Equipment
Replacing solenoid valve,particularly when solenoid cannot work reliably
****************************************************************************************
