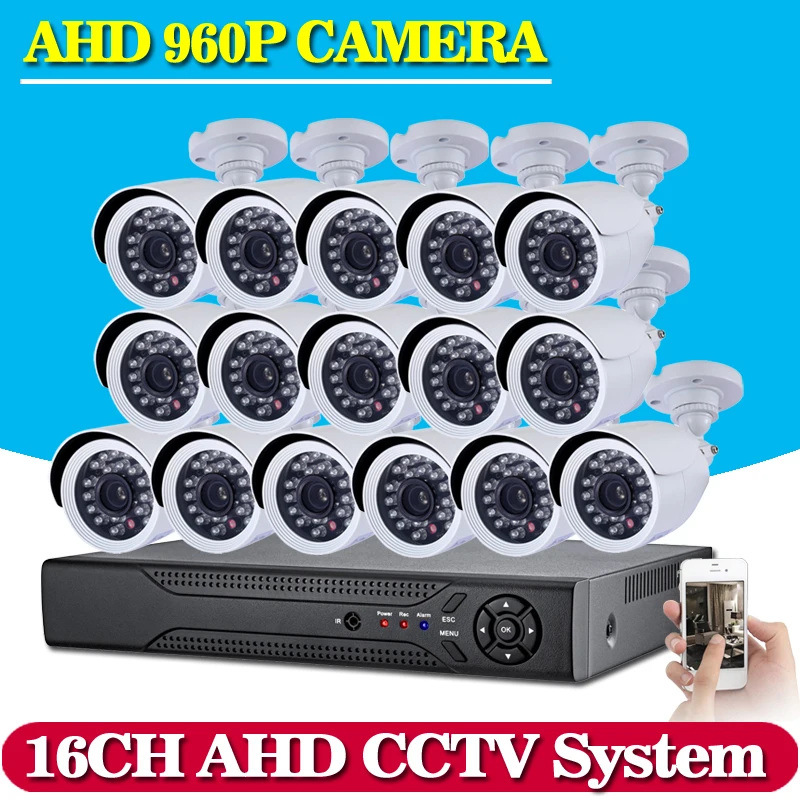

Home 16CH CCTV System 1080N AHD CCTV DVR System HD 16PCS CCTV Cameras 1.3 Megapixels Enhanced IR Security Camera 1TB HDD

Home 16CH CCTV System 1080N AHD CCTV DVR System HD 16PCS CCTV Cameras 1 3 Megapixels
Click to see details
Home 16CH CCTV System 1080N AHD CCTV DVR System HD 16PCS CCTV Cameras 1 3 Megapixels
80 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $599.88 / piece
Sale price:  US $449.91 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

USD 618.98/pieceUSD 539.98/pieceUSD 535.98/pieceUSD 615.98/pieceUSD 536.88/pieceUSD 536.98/pieceUSD 759.88/pieceUSD 679.88/piece

  • 1 X 16CH AHD-NH 1080N DVR NVR HVR 3 IN 1 Network Digital Video Recorder
  • 16 x AHD 960P 1.3MP 1/3″ inch indoor outdoor IR Day Night vision waterproof cameras
  • 16 X 65feet(20m) cctv video cable for camera
  • 4 x 12V/3000mA power adapter for cameras
  • 1 x 12V/2000mA power adapter for DVR
  • 4 X 1 to 4 power splitter Cable
  • 1 X USB Mouse for DVR
  • 1 X Software CD for DVR
  • 1 X remote control for DVR
  • Hard Disk(optional)!!!!!

  • AHD (Analog High Definition) is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).
  • In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.
  • This AHD DVR has 16 channels and is a fully integrated DVR that records in real time. A remote control and mouse are included for easy setup and operation. With features like network access, VGA video output, HDMI 1080p output.and USB2.0 backup, you will find this DVR perfect for your home or small business.
  • These bullet cameras are designed for both outdoor and indoor, and can be easily mounted.
  • Installation is easy and hassle free – just plug and play.
  • Very reliable operation, long operating life, and premium performance at an affordable price.

It is very easy to install, you can do it by yourself.

NOTICE: This camera must work with AHD DVR. thank you .

Best choice for project reconstruction!!You can upgrade an existing analog security system

to 1.0MP/1.3MP/HD camera system without changing cable routes.

1) Applying high performance sensor, the image is clear and delicate

2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion

3) Analog HD 960P @AHD video output

4) Transmission distance up to 500 meters

5) Support ultra low illumination

6) Support automatic electronic shutter function, adapting different monitoring environment

7) IR distance : 35 meters

8) Camera lens choices : 3.6mm/6mm(3.6mm defult)

  • Day & Night Monitoring with Built-in IR-Cut filter

  • Wide View angle

see wider viewing angles

  • IP66 Professional outdoor weatherproof

AHD DVR /NVR /HVR 3 in 1 (support ahd camera or analog camera or ip camera input or Hybrid input) 1080N AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras What is DVR /NVR /HVR 3 in 1? DVR:Digital Video Recorder. NVR:Network Video Recorder. HVR:High Definition / Hybrid Digital Video Recorder. This 3 in 1 DVR has mature technology of DVR as well as the high definition and network advantages of NVR. Save the huge cost when you want to upgrade the dvr system to be NVR!!! 720P or 1080P IP Cameras supported(ONVIF Protocal)to get high definition image

  • AHD-NH / 1080N HD See Bigger Wider and Sharper

AHD offers you a high difinition quality resolution:1080X960,monitoring has never been easier or clearer.
Unlike expensive 1080P NVR or POE system,AHD has lower price but HD quality.You’ll get more than paid for.

P2P Cloud Access via Smart Handsets

1> Connect the Camera to DVR

2> Connect the DVR to Network

3> Scan QR for Mobile APP

4> Scan QR for S/N via APP and Enjoy Live Viewing

Just 4 Steps for Mobile Phone Viewing!!!!!!

Remote viewing Anywhere Anytime

Multiple Viewing Options(HDMI 1080P Output)

Instant Alert

Alert Functions&Intelligent Motion Detection

Support onvif protocol

Supports Multiple Languages

Multi-language menus option up to 28 kinds of Language..

Main chip HI3531
Systems Operating system Embedded LINUX operating system
System resource Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Interface Operation interface 16bit real color GUI interface support mouse operation
Display screen 1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode)
Video Video standard PAL(625 line,50f/s);NTSC(525 line,60 f/s)
Image encode H.264(Main Profile);
Monitor quality Monitor :AHD/960H/D1;VGA:High definition;HDMI:High definition
Playback quality AHD/720P/960H/D1/HD1/CIF/QCIF
Recording 16CH AHD-NH 1080N
Playback 16CH AHD-NH 1080N
Multi-mode video input Analog input:16*AHD 1080N
Hybrid input:8*AHD 1080N+8*960P
Digital input:8*1080P/16*960P
Motion detection Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
Audio Audio compression G711A
Bidirectional talk support
Record and playback Record mode manual>alarm>motion detection>timing
Local playback 1-16ch playback synchronously (take local analog input for example, other is depended on the selected channel mode)
Video search Time, date, event, channel search
Storage and back up Space occupation Video:CIF 4~5G/day*channel, D1 16~20G/day*channel;
Audio:691.2M/day*channel
Video storage Local HDD, Network
Back up mode Network backup, USB portable HDD, USB imprint, SATA imprint
Interface Video input 16ch BNC(1.0Vp-p,75)
Video output 1ch VGA,1ch HDMI 1080P
Loop output optional
Audio input 2ch RCA(200-2800mV,30K)
Audio output 1ch RCA(200-3000mV,5K)
Alarm input N/A
Alarm output N/A
Network port RJ45 10M/100M self-adaptive Ethernet port
PTZ control 1 RS485;support multi kinds of PTZ protocol
USB port 2*USB2.0
HDD port 1*SATA ports(Each support 4,000GB)
Wireless port 3G, WIFI( extension via USB port)
usb mouse yes
remote control yes
Other Power 12V/2A
Consumption <15W(not including HDD)
Operation Environment -30C~+55C/ 10%-90%(H)/ 86kpa-106kpa(A)
Dimension 255*235*45mm
Weight 2KG without hard disk

Video

Image sensor:1/3″inch CCD

Video quality:1.3mp /960/2500TVL

Lens:3.6mm lens/6mm lens(3.6mm defult)

Day/Night Mode:Color During day/switches to B&W at night

General

Indoor / Outdoor:Suitable for Indoor or Outdoor use

Operating Temperature:-25°F~122°F / -32°C ~50°C

Operating Power:DC 12V

Weatherproof:yes

Minimum Illumination: 0.0 Lux

Body Construction:Bullet with Built-in Wall Mount

Night Vision

Distance:Up to 35m

IR Cut Filter:yes

Number of IR Lens:36pcs
