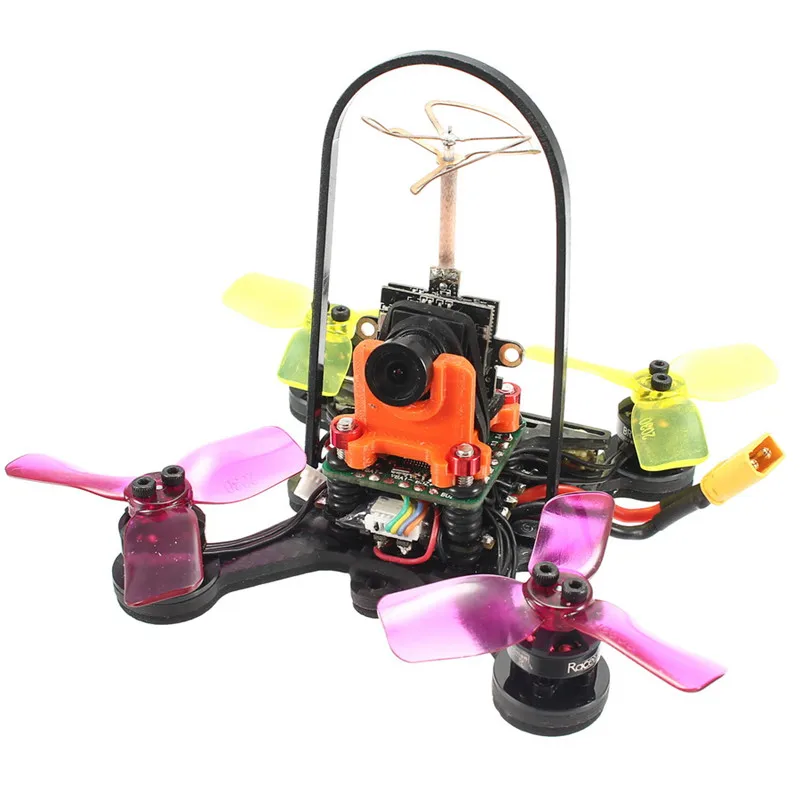

In Stock Eachine Chaser88 F3 FPV Racer ARF with 4 In 1 6A ESC 5.8G 40CH VTX 800TVL 1/3 Cmos Camera 2-3S FPV Multicopter Drone

In Stock Eachine Chaser88 F3 FPV Racer ARF with 4 In 1 6A ESC 5 8G
Click to see details
In Stock Eachine Chaser88 F3 FPV Racer ARF with 4 In 1 6A ESC 5 8G
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $241.98 / piece
Sale price:  US $120.99 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Specification Features
Chaser88Frame Package : 215×110×265mm
Weigh(without battery): 67g
Weight (with battery): 90g
Package Weigh: 215g
Compatible with 2030 inches propeller
Compatible with 1103 motor
Can be used with 2-3S battery
Wheelbase: 88mm
Flight time: 3.5mins
Batterry: 2S 45C 450mah
With direction indicator LED
ESC Model: BLHELI-S 6A
Continuous Current: 6A
Instantaneous Current(10S): 10A
BEC: NO
Li-Po Battery: 1-2S
Programming: Yes
Weight: 5G
Size(PCB): 27 x 27mm
M3 install Pitch: 20 x 20mm
Support DSHOT600
Motor 1103 10000KV
Voltage: 11.1V Power: 64.4W
Prop: 2 inches Efficiency: 1.4 g/w
Load current: 5.8A Lipo cell: 1-3s
Pull: 90g Weight: 3.7 g
Flight
Controller
F3 Mini
Firmware version: bf 1.3.1
800TVL Camera Sensor: 1/3 “CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Resolution: NTSC: 960X480/ PAL:960X480
Power consumption: 380mA 3.7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
FPV Transmitter Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change chs A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Frequency Table
Frequency ch A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency ch B 5733 5752 5771 5790 5809 5828 5847 5866
Frequency ch E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency ch F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency ch R 5658 5695 5732 5769 5806 5843 5880 5917

Package Included:
1 X Frame Kit
4 X 1103 motor
4 X 2030 Propeller
1 X Camera
1 X VTX
1 X Antenna
1 X 4 IN 1 ESC
1 X Flight controller
1 X LED with Buzzer
1 X Black Alumina Camera protection ring
