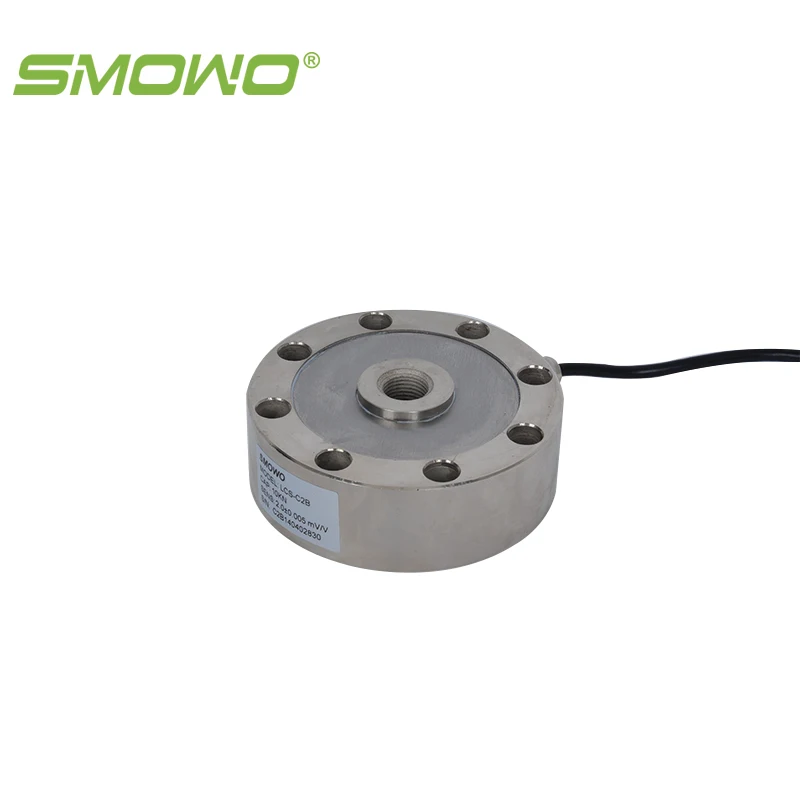

Load cell sensor LCS-C2B (500kg/1t/2/3/5/10/20/25/30/50/60/100t)
Click to see details
80 % of buyers enjoyed this product!
Availability: in stock
Price:
US $115.00
/ piece
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. | |
On-time Delivery Guarantees: On-time Delivery 60 days |
Simple and solid structure
Strong lateral force resistance and offset load
Low center of gravity, easy to install
High accuracy and long-term stability
Optional measurement range: 5-1000kN (approximate 0.5-100t)
Description | ||
Material | Alloy Steel or Stainless Steel | |
Rated Load (kN) | 5/10/20/30/50/70/100/200/300/500/1000 | |
Performance Indicator | ||
Overall Precision | 0.05(linearity+ hysteresis + repeatability) | |
Sensitivity | 2.0 mV/V | |
Excitation Voltage | 5- 12V DC (recommend 5V ) | |
Creep (in 30 min) | ±0.05%F.S/30min | |
Zero balance | ±1%FS | |
Input Resistance | 380±10Ω or 750±15Ω | |
Output Resistance | 350±3Ω or 700±5Ω | |
Insulation Resistance | ≥5000MΩ | |
Working Environment | ||
Safety Overload | 150%F.S | |
Operation Temperature Range | -20 to +65ºC | |
Zero Drift | ±0.05%F.S/10ºC | |
Output Drift | ±0.05%F.S/10ºC | |
Protection Class | IP67 |
Optional Range | USD Price (without freight) |
500kg/1t/2t/3t | 115.00 |
5t | 125.00 |
10t/20t | 131.00 |
25t | 163.00 |
30t | 192.00 |
50t | 288.00 |
60t | 355.00 |
100t | 537.00 |
Please note that price is not same for all the optional range. please leave message for us for different range. Our default price USD 115 is for 500kg/1t/2t/3t |
