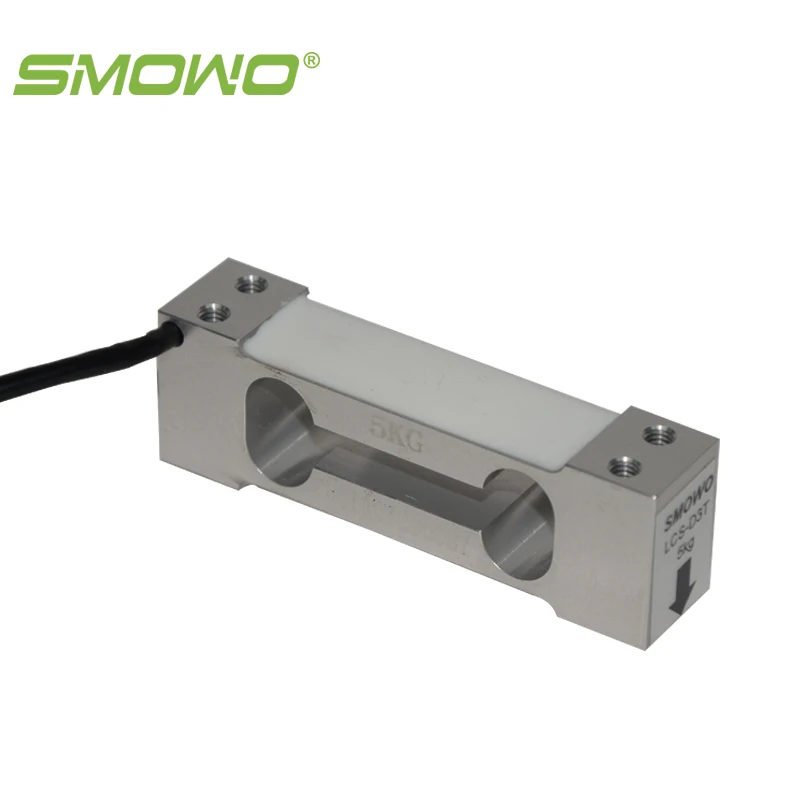

Load cell sensor LCS-D3 (1kg/3kg/5kg/10kg)
Click to see details
100 % of buyers enjoyed this product!
Availability: in stock
Price:
US $39.00
/ piece
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Install easily
Good corrosion resistance and long-term stability
Ultra-small measurement range
Optional measurement range 0.3-10kg
| Description | ||
| Material | Aluminum Alloy | |
| Rated Load (kg) | 0.3/0.5/1/2/3/5/10 | |
| Performance Indicator | ||
| Overall Precision | 0.02(linearity+ hysteresis+ repeatability) | |
| Sensitivity | (1.0)2.0±10%mV/V | |
| Excitation Voltage | 5 -12V DC | |
| Creep (in 30 min) | ±0.03%F.S/30min | |
| Zero Balance | ±2%FS | |
| Input Resistance | 410±15Ω | |
| Output Resistance | 350±3Ω | |
| Insulation Resistance | ≥2000MΩ | |
| Working Environment | ||
| Safety Overload | 150%F.S | |
| Ultimate Overload | 200%F.S | |
| Operation Temperature Range | -20 to +60ºC | |
| Output Drift | ±0.03%F.S/10ºC | |
| Protection Class | IP65 | |
| Platform Size | <200×200mm | |
| Optional Range | USD Price (without freight) |
| 0-1kg/3kg/5kg/10kg | 39 |
| Please give us detailed info for the range you prefer before you order. | |
