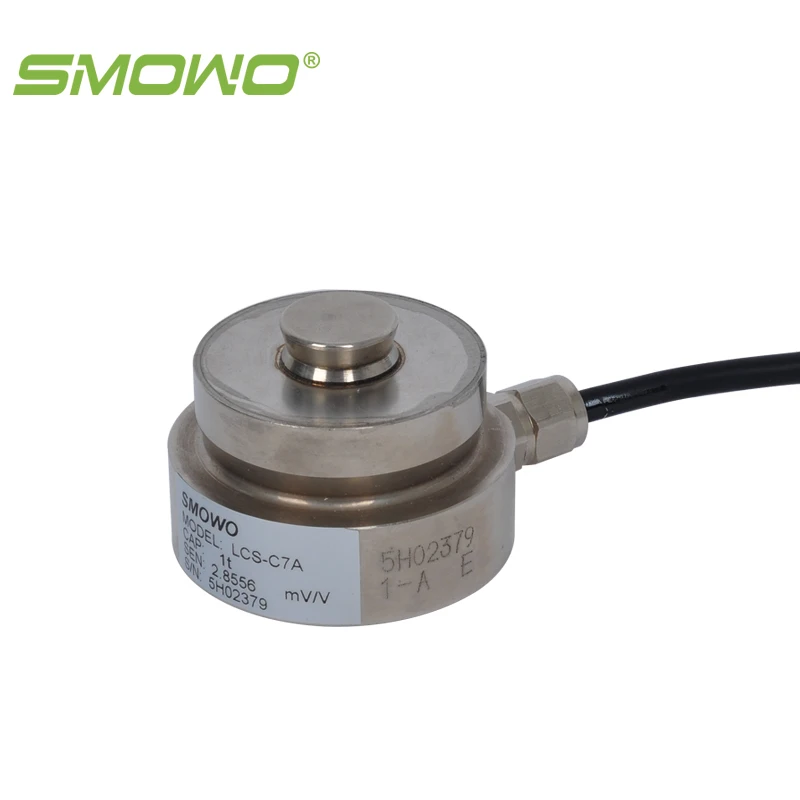

Load cell SMOWO sensor LCS-C7A (1/2.2/3.3/4.7/10/22/33/47/68/100/150t)
Click to see details
60 % of buyers enjoyed this product!
Availability: in stock
Price:
US $173.00
/ piece
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
High protection grade and good sealing against harsh environment
Applied in alex-load scale, hopper scale, warehouse scale, weighing tank, large-size platform scale and so on
Selection for six wires connection
Optional measurement range: 1-150t
| Description | ||
| Material | Alloy Steel or Stainless Steel | |
| Rated Load (kg) | 1/2.2/3.3/4.7/10/15/22/ 33/47/68/100/150 |
|
| Performance Indicator | ||
| Accuracy | 0.03-0.1% F.S | |
| Sensitivity | 2.85mV/V | |
| Excitation Voltage | 5 -12V DC (recommend 5V ) | |
| Creep (in 30 min) | ±0.03%F.S/30min | |
| Zero Balance | ±1%F.S | |
| Input Resistance | 1450±10Ω | |
| Output Resistance | 1402±5Ω | |
| Insulation Resistance | ≥5000MΩ | |
| Working Environment | ||
| Safety Overload | 150%F.S | |
| Operation Temperature Range | -30 to +70ºC | |
| Zero Drift | ±0.03%F.S/10ºC | |
| Output Drift | ±0.03%F.S/10ºC | |
| Protection Class | IP67 | |
| Optional Range | USD Price (without freight) |
| 0-1t/2.2t/3.3t/4.7t | 173.00 |
| 0-10t | 230.00 |
| 0-22t | 307.00 |
| 0-33t | 345.00 |
| 0-47t | 422.00 |
| 0-68t | 780.00 |
| 0-100t | 537.00 |
| 0-150t | 614.00 |
| Please note that price is not same for all the optional range. please leave message for us for different range. Our default price USD 173.00 is for 1t/2.2t/3.3t/4.7t | |
IF need below accessories, please noitice us. We need to provide you Accessories price. Above price is not including accessories fee.
