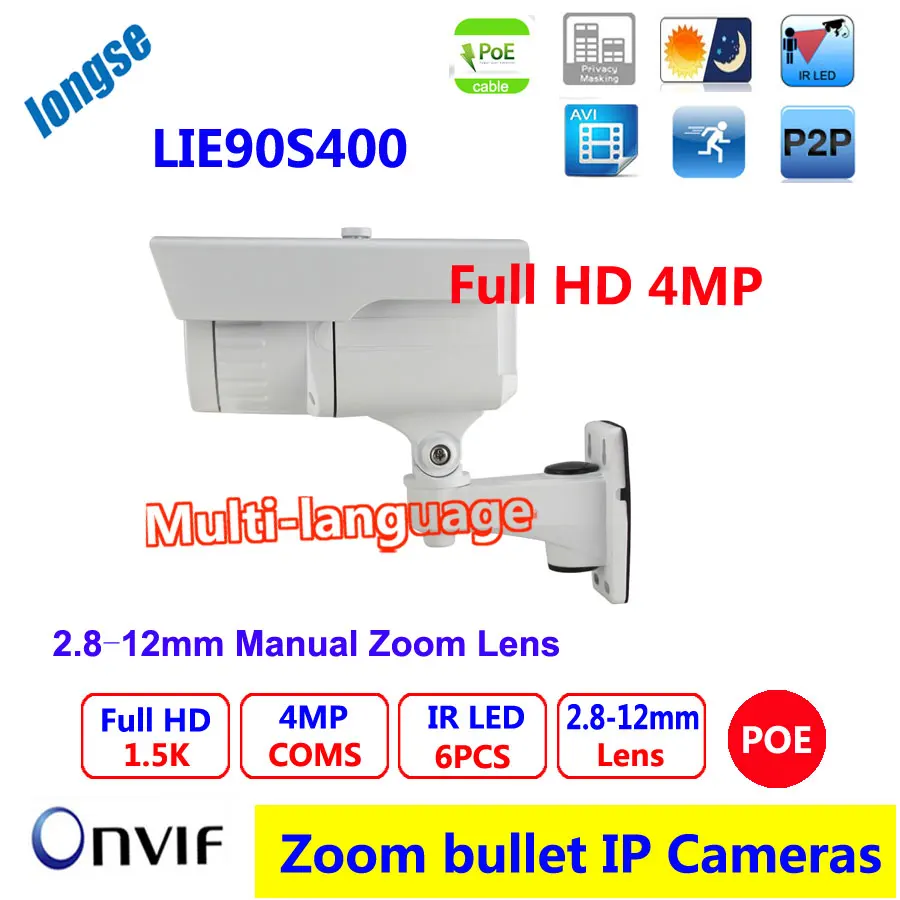

Manual Zoom Lens 2.8mm-12mm H.265 IP Camera HI3516D 1/3” OV4689 4MP IP66 Bullet Camera 90M IR range CCTV Outdoor 12V /PoE power
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
IR LED: 42µ x 6PCS IR range: 90M 2.8-12mm Manual Zoom Lens Water resistance: IP66 Anti-Cut 2-Axis Bracket Size: 220(W) x 200(H) x 107(D)mm Weight: 1.8Kg Voltage: DC12V/POE 1/3″ OV 4MP High-resolution CMOS Sensor Ambarella S2L, Low-stream, WDR; With IR-CUT; Main Stream: 4MP@20fps, 3MP/1080P@30fps; 4MP HD Lens
|
Camera |
|
|
Effective Pixels |
2688(H)*1520(V) |
|
TV System |
PAL/NTSC |
|
Electronic Shutter |
1/25s~1/50,000s , 1/30s~1/60,000s |
|
Sync System |
Internal |
|
Usable Illumination |
0.01Lux |
|
S/N Ratio |
≥50dB |
|
Scanning System |
Progressive |
|
Video Output |
Network |
|
Lens |
|
|
Focus Length |
2.8-12mm Manual Zoom Lens |
|
Focus Control |
Manual |
|
Lens Type |
Manual |
|
Pixels |
4M Pixels |
|
Night Vision |
|
|
Infrared Distance |
90M |
|
IR Status |
Under 10 Lux By CDS |
|
IR Power On |
CDS Auto Control |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS |
|
ONVIF |
Support ONVIF 2.4 |
|
P2P |
YES, Support QR Code |
|
POE |
Optional, Support IEEE 802.3af |
|
WIFI |
N/A |
|
Video Delay |
0.3S (Within the Lan) |
|
Main Stream |
2688*1520@30fps |
|
Sub Stream |
704*576@30fps, 352*288@30fps |
|
IE Brower |
IE6-11, Google Chrome(IE Tab), Firefox(IE Tab) |
|
Smart Phone |
iPhone, iPad, Android, Android Pad |
|
Camera Features |
|
|
Day/Night |
Color/ B&W (IR-CUT ) |
|
Compression |
H.264/JPEG,Support record AVI format. |
|
Image Config |
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(FlickerControl) |
|
Motion Detection |
Support |
|
Privacy Masking |
3 Rectangular Zone |
|
WDR |
YES |
|
Recording Mode |
NVR/NAS/CMS/Web |
|
Language |
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French,Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian |
|
General |
|
|
Housing |
Vandalproof IP66 |
|
Lens Angle Adjustment |
YES, Anti-Cut 3-Axis Bracket |
|
IR Cut Filter |
YES |
|
Operation Temperature |
-10 ~ +50 RH95% Max |
|
Storage Temperature |
-20 ~ +60 RH95% Max |
|
Power Source |
POE DC12V±10%,500mA |
**************************************************************
POE connection
***************************************************************
Multi-language option
**************************************************************
IE longin
***************************************************************
3 kinds of stream
***************************************************************
DHCP IP setting
***************************************************************
Auto IR-cut
***************************************************************
WDR effect
***************************************************************
3D DNR
***************************************************************
Privacy Covered
some area won’t display, you can cover lit, like the follow fugure
Region 1,Region 2,Region 3 bellow be covered.
***************************************************************
Motion detection
***************************************************************
Defog out
***************************************************************
ROI function
***************************************************************
Cell phone/tablet video
***************************************************************
CMS Client software
CMS Client can install any pc, from this Client,you can mange all camra,NVR,and other CCTV funtion,
like live video,capture photo ,playback, PTZ,alarm etc.
***************************************************************
***************************************************************
***************************************
