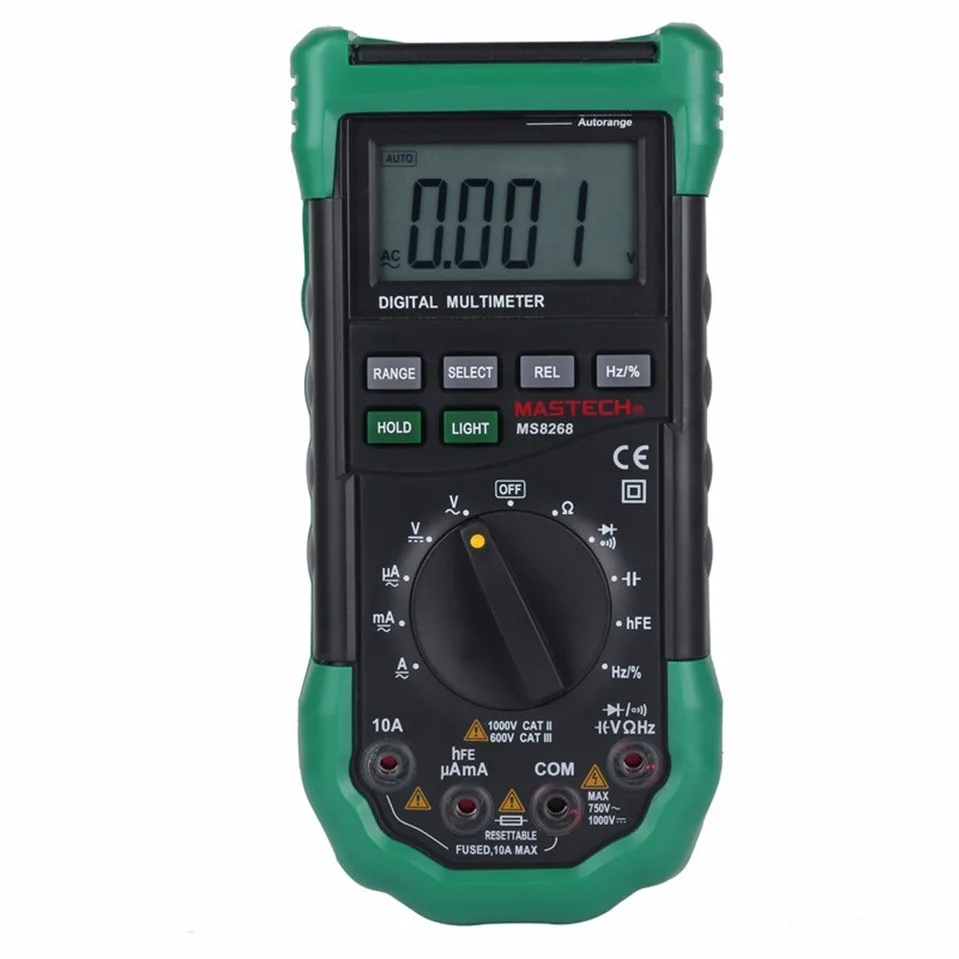

MASTECH MS8268 Digital Multimeter Auto Range protection ac/dc ammeter voltmeter ohm Frequency electrical tester diode detector
Please Note:This product send without battery and retail box.
Features:
Display: 3 3/4 digital large LCD with 4000 counts
Manual & Auto ranges
Data hold
Backlight
Full overload protection
Built-resetable fuse protection
Fuse Protection: mA and mA file: resettable fuse; 10A file: F 10A/250V 6.332mm
Misconnection alarm system
Red lights to show the correct terminals
Audible warning for over-range
“Sleep mode”, auto power off & low battery indication
Unit symbol display
Continuity test
Diode test
Duty Cycle Measurement
Relative value measurement
Specifications:
DC voltage: 400m/4V/40V/400V ± 0.7%, 1000V ± 0.8%
AC voltage: 400mV ± 3.0%, 4V/40V/400V ± 0.8%, 750V ± 1.0%
Resistance: 400/4k/40k/400k/4MΩ ± 1.0%, 40MΩ ± 2.0%
DC current: 400μA/4000μA/40mA/400mA ± 1.5%,10A ± 2.0%
AC current: 400μA/4000μA/40mA/400mA ± 1.5%,10A ± 3.0%
Capacitance: 20n/200n/2μ/20μF ± 4.0%
Frequency: 10/100/1000/10k/200kHz ± 2.0%
Transistor hFE: 1 ~ 1000
Sampling Rate: approx. 3 times / second
Test Leads: 1KV 10A
Safety Standards: IEC1010-1, CAT. III 600V & CAT. II 1000V
Operating Temperature: 0 ~ 40° C (32 ~ 104° F)
Operating Humidity: below 80% RH, <10° C non-condensing
Storage Temperature: -10 ~ 60° C (14~ 140° F)
Storage Humidity: below 80% RH
Power: 3 x 1.5V AAA batteries
Dimensions: 195 mm x 92 mm x 55mm (7.68′ X 3.62′ X 2.17′ inch)
Weight: Approx.380g (13.40oz)
Package Content:
1 * MS8268 Digital multimeter
1 * Test Leads
1 * English Manual
