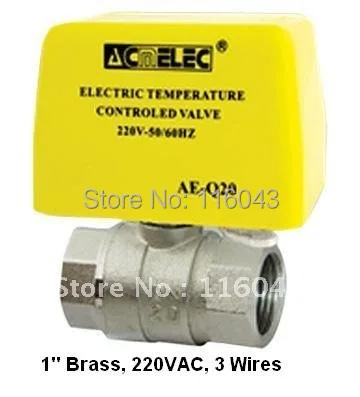

Motorized Ball Valve,Brass 1” 3 wires for chilled water air conditional system hot/cold water AC220V AC24V AC110V available

Motorized Ball Valve,Brass 1” 3 wires for chilled water air conditional system hot/cold water AC220V AC24V AC110V available

Product Name: Motorized Ball Valve

Item No.:TFCM series

Description:

• TFCM series 2-way and 3-way motorised ball valves intended for use in heating and

• cooling systems. Suitable for hot/chilled water,and glycol solution up to 50% concentration.

Features:

1) Smooth flow, no block up

2) High flow capability, 3 times flow rate more than traditional zone valves
3) 220V/240V AC, 24V AC, 110V/120V AC also available
4) Tight close, no leakage
5) Optional manual lever for convenient operation when power is off
6) The power is cut off when the valve reaches the on/off position
7) This ensures long life service for the actuator
8) The actuator cover adopts close structure which is resistive to humidity and ensures reliable operation for motor
9) Suitable for both vertical and horizontal installation

Technical Data

Valve type: 2-way /3-way ball valve

Pressure class: PN16

Supply Voltage: 220VAC?+/- 10% 50/60 Hz

Connection: inner thread

Ambient Temperature :< 65oC

Fluid temperature:0oC~130oC
Relative Humidity:max 95%

Valve body: Bronze

Protection Class:IP55

Notice: Please leave me message with the volt option (24VAC OR 110VAC OR220VAC) after you made the order. Otherwise we will sent you the 220VAC with Flow Drection A type.

Wiring Diagram
