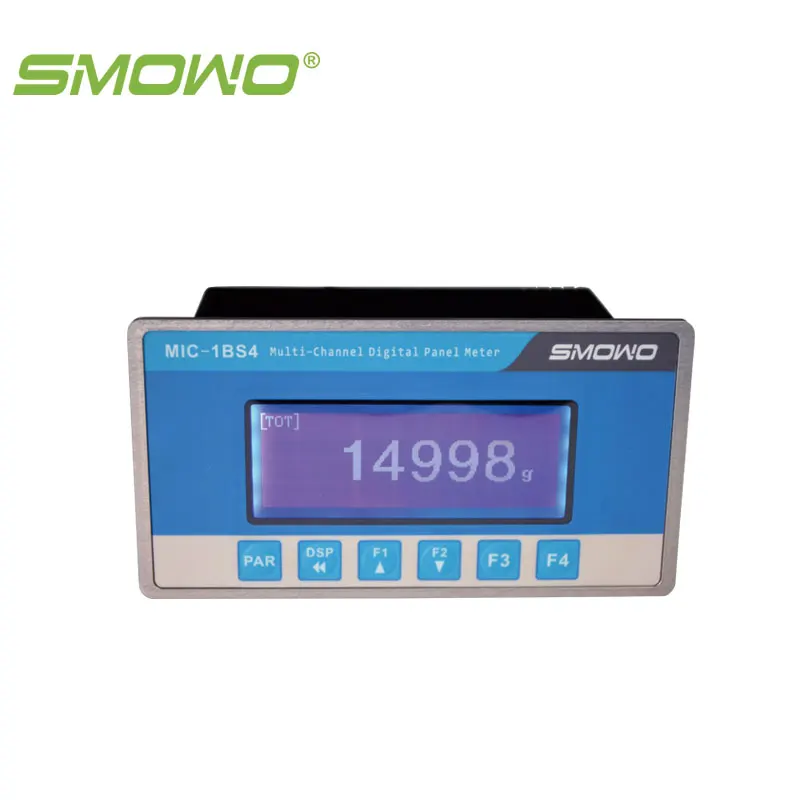

multi road displacement signal digital display indicator MIC-1BS4 (multi road SSI/AB phrase)

4 different channels at most of dimensional signal input at the same time

Optional for each channel: 0-5V/0-10V/4-20mA/0-20mA standard signal, displacement load cell (potentiometer), PT100 thermal resistance, strain bridge signal, incremental encoder and magneto striction load cell ( SSI, quadrature AB phase single-ended/differential) signal

192×64 dot matrix blue wide temperature LCD and sunlight readable

3 users soft key

4 channel programmable control signal input

8 groups of set points (alarm) control output

Alarm value shortcut keys setting

Serial connection communication, conforming to standard MODBUS protocol

Supporting 4 groups of independent isolated-type transmitting output*

Automatic zero tracing and manual tare reducing (zero-setting)

Internal programmable buzzer

Batch accumulation, synchronous display about multichannel and mathematical operation value

Optional for many regular engineering unit and switchable main and auxiliary measuring unit

Multiple peak value capture mode

Data recording function supporting standard U-disk interface*

Backup-battery real time clock and calendar*

Cumulative counting, and connecting to micro-printer for single and accumulative printing*

*” Need to choose corresponding expanded card when achieving related function
