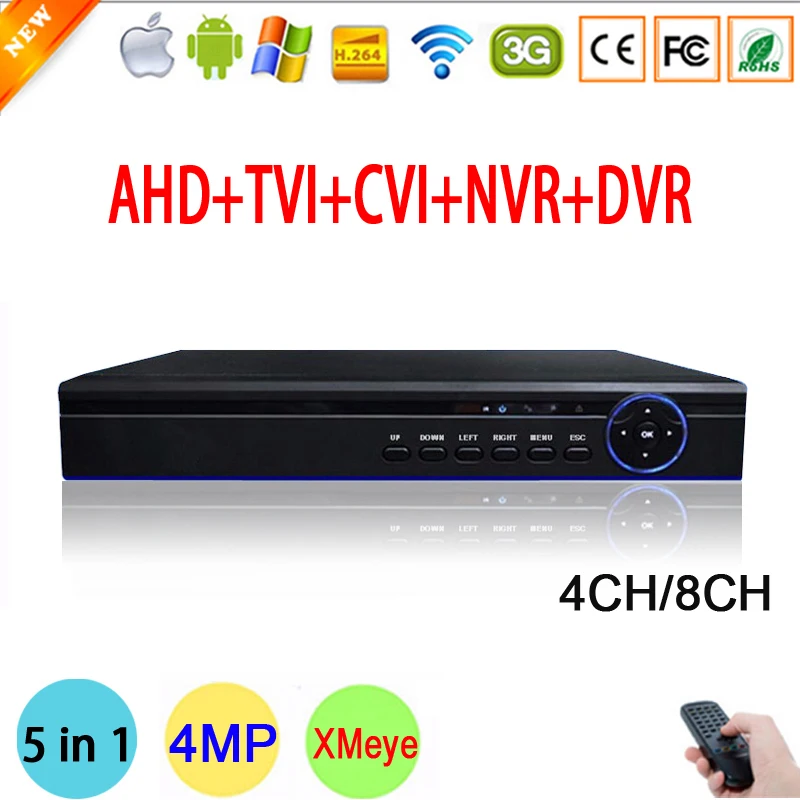

New XMeye Hi3520D Chip 4MP 4CH/8CH Surveillance Video Recorder Hybrid Coaxial 5 in 1 TVI CVI NVR AHD CCTV DVR Free Shipping


![]() |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
---|---|
![]() |
On-time Delivery Guarantees: On-time Delivery 60 days |
4CH:
- analog:4*4M;(AHD Camera+TVI Camera+CVI Camera+960H/D1 at same time)
- hybrid:2*4M(Analog) +2*4M (network); ;(AHD Camera+TVI Camera+CVI Camera+960H/D1+IP Camera at same time)
- Network only:16*1080P;16*960P;4*5M;
8CH:
- analog:8*4M;(AHD Camera+TVI Camera+CVI Camera+960H/D1 at same time)
- hybrid:4*4M(Analog) +4*4M (network); ;(AHD Camera+TVI Camera+CVI Camera+960H/D1+IP Camera at same time)
- Network only:8*1080P+8*960P;4*3M;4*5M;
Q: What is 4MP AHD Hybrid DVR?
A: 4MP HD Coaxial DVR is highest format HD DVR; the quality is best for all HD DVR;it support 4MP,3MP,2MP,1MP HD camera(AHD,TVI,CVI,IP),960H,D1.
Q: What is 5-in-1 function? A: 5-in-1 means that support AHD(AHD Camera),TVI(TVI Camera),CVI(CVI Camera),DVR(analog) and NVR(IP Camera).
8CH:
4CH:
- Support H.264+ encoding, ultra-low bitrates, compatible with H.264 surroundings;
- Support VGA, HDMI full HD output simultaneously;
- Support ONVIF; access third party;
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
- Support web, CMS, center platform management software MYEYE, provide SDK development;
- Support various mobile monitoring (iPhone, Android);
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, control signal& video stream transmit through one single coaxial
- Support AHD/TVI/CVI/CVBS/IP five signals;
4MP 4CH Hybrid DVR Parameters:
Model | TP-044MD | |
System | Main processor | Hi3520D V300 |
Interface | Preview | 1/4 |
Video | Codec | H.264 |
Monitor quality | VGA,HDMI:HD | |
Encode abilit | 8*4M@8fps(AHD)/ 8*3M@10fps(AHD)/8*1080P@15fps(5 in 1)/ 8*720P(5 in 1) | |
Decode ability | 4*4M@8fps(AHD)/ 4*3M@10fps(AHD)/4*1080P@15fps(5 in 1)/ 4*720P(5 in 1) | |
Onvif | support | |
Multi-mode input | analog:4*4M; hybrid:2*4M(analog)+2*4M(network) network:16*1080P;9*1080P;16*960P;4*5M | |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Local Playback | 4ch(local input mode) | |
Search mode | Search by time, calendar, event, channel | |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USBhard disk, USB burner, SATA burner | |
External Interface | Video input | 4ch BNC |
Video output | 1ch VGA, 1ch HDMI | |
Loop Vout | N/A | |
Audio I/O | 4/1 | |
Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
Network interface | RJ45 10M/100M self-adaption | |
PTZ control | 1*RS485, Support kinds of PTZ protocols | |
USB | 2* USB 2.0 ports | |
HDD | 1*SATA ports (Max 8TB/per) | |
Wireless | 3G, WIFI (extend via USB) | |
General | Power supply | 12V/2A |
Power Consumption | <15W (without HDD) | |
Working environment | Temperature:0degree-+55degree,Humidity:10%-90%,Atm:86kpa-106kpa | |
Dimension(motherboard) | 200mm*78mm | |
Weight (motherboard) | 196g |
4MP 8CH Hybrid DVR Parameters:
Model | TP-084MD | |
System | Main processor | Hi3521A |
Interface | Preview | 1/4/8/9 |
Video | Codec | H.264 |
Monitor quality | VGA,HDMI:HD | |
Encode abilit | 8*4M@8fps(AHD)/ 8*3M@10fps(AHD)/8*1080P@15fps(5 in 1)/ 8*720P(5 in 1) | |
Decode ability | 4*4M@8fps(AHD)/ 4*3M@10fps(AHD)/4*1080P@15fps(5 in 1)/ 4*720P(5 in 1) | |
Onvif | support | |
Multi-mode input | analog:8*4M; hybrid:4*4M(analog)+4*4M(network) network:8*1080P+8*960P;4*3M;4*5M | |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Local Playback | 4ch(local input mode) | |
Search mode | Search by time, calendar, event, channel | |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USBhard disk, USB burner, SATA burner | |
External Interface | Video input | 8ch BNC |
Video output | 1ch VGA, 1ch HDMI | |
Loop Vout | N/A | |
Audio I/O | 4(Can be extended to 8ch)/1 | |
Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
Network interface | RJ45 10M/100M self-adaption | |
PTZ control | 1*RS485, Support kinds of PTZ protocols | |
USB | 2* USB 2.0 ports | |
HDD | 1*SATA ports (Max 8TB/per) | |
Wireless | 3G, WIFI (extend via USB) | |
General | Power supply | 12V/2A |
Power Consumption | <15W (without HDD) | |
Working environment | Temperature:0degree-+55degree,Humidity:10%-90%,Atm:86kpa-106kpa | |
Dimension(motherboard) | 200mm*78mm | |
Weight (motherboard) | 196g |
- 1.Russian Federation:7-20 days By SPSR;
- 2.Brazil:20-50 days Special Line_YW;
- 3.Oceania and East Asia, Southeast Asia, South Asia, Central Asia:we will choose China Post(EUB) , Singapore Post or Sounthest ASian green for transport package, the delivery time about 7-30 days;
- 4.North America, West Asia, Europe; we will choose Swiss Post,Swedish post,Netherlands Post or China post (EUB) for transport package, the delivery time about 7-25 days;
- 5.South America: China Post, Swiss Post, the delivery time about 20-50days
Friendly Reminder:
if you want us sent goods quickly that use DHL,UPS,FedEx,ARAMEX and so on.Please connect US by leave me a message in Aliexpress.We will calculate extra shipping Cost for you and adjust price for your order,Thanks!
Notice:
you are come from Russia (please click the following button,Thanks)
GOOD NEWS!!!
Now we will sent a USB LED Light as a free gift for each order about this product,Thanks!(the begin time is 15/9/2016,Thursday)
