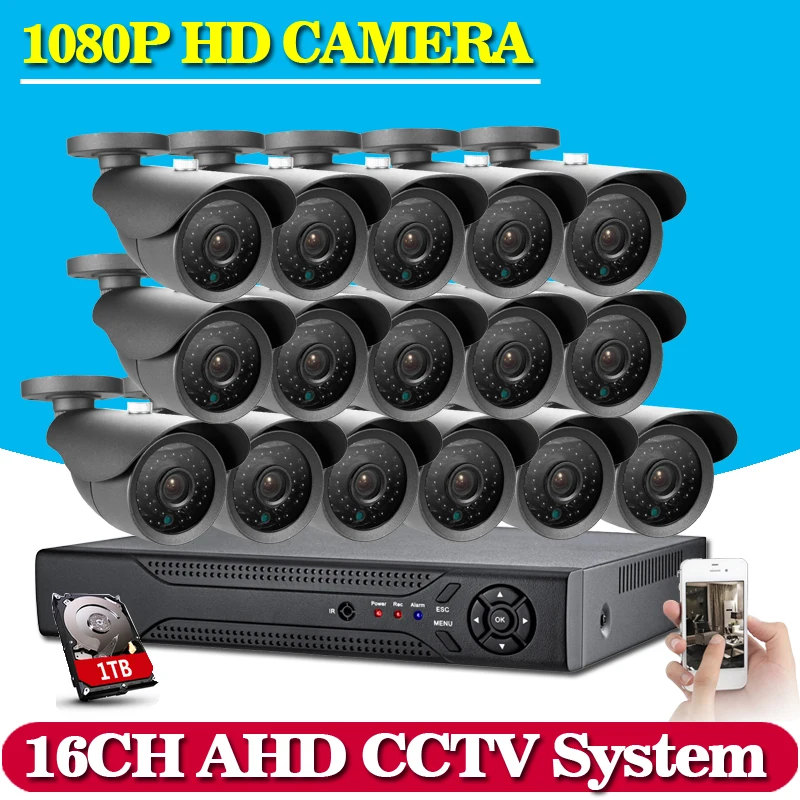

NINIVISION 16CH CCTV System 1080P AHD CCTV DVR System HD 16PCS CCTV Cameras 2.0MP Megapixels Enhanced IR Security Camera 1TB HDD

NINIVISION 16CH CCTV System 1080P AHD CCTV DVR System HD 16PCS CCTV Cameras 2 0MP Megapixels
Click to see details
NINIVISION 16CH CCTV System 1080P AHD CCTV DVR System HD 16PCS CCTV Cameras 2 0MP Megapixels
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $759.88 / piece
Sale price:  US $569.91 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

USD 618.98/pieceUSD 539.98/pieceUSD 535.98/pieceUSD 615.98/pieceUSD 536.88/pieceUSD 536.98/pieceUSD 759.88/pieceUSD 679.88/piece

  • 1 X 16CH AHD-NH 1080N DVR NVR HVR 3 IN 1 Digital Video Recorder
  • 16 x HD AHD 1080P 1/3″ inch Color CCD indoor outdoor IR Day Night vision waterproof cameras
  • 16 X 65feet(20m) cctv video cable for camera
  • 4 x 12V 3A power adapter for cameras
  • 1 x 12V 2A power adapter for DVR
  • 4 X 1 to 4 power splitter Cable
  • 1 X USB Mouse for DVR
  • 1 X Software CD for DVR
  • 1 X Remote Control for DVR
  • 1TB Hard disk included!!!

It is very easy to install, you can do it by yourself.

  • 1080N HD See Bigger Wider and Sharper

AHD offers you a high difinition quality resolution:1080X960,monitoring has never been easier or clearer.
Unlike expensive 720P 1080P NVR or POE system,AHD has lower price but HD quality.You’ll get more than paid for.

  • AHD/DVR /NVR /HVR 3 IN 1(Support ahd camera/analog camera/ip camera).
  • AHD-NH 1080N DVR compatible 720P, 960P,1080P AHD cameras

16CH AHD DVR System Support: AHD/DVR / HVR / NVR 3 IN 1

What is DVR /NVR /HVR 3 in 1? DVR:Digital Video Recorder. NVR:Network Video Recorder. HVR:High Definition / Hybrid Digital Video Recorder. This 3 in 1 DVR has mature technology of DVR as well as the high definition and network advantages of NVR. Save the huge cost when you want to upgrade the dvr system to be NVR!!! 720P or 1080P IP Cameras supported(ONVIF Protocal)to get high definition image

  • P2P Cloud Access via Smart Handsets

JUST TWO STEPS TO FINISH THE SETUP!!
Say Goodbye to DDNS and portforwarding.

1> Connect the Camera to DVR

2> Connect the DVR to Network

3> Scan QR for Mobile APP

4> Scan QR for S/N via APP and Enjoy Live Viewing

  • e-Cloud Access via Smart Handsets

  • Check in from anywhere,anytime

Even when you’re miles away, keep an eye on your home, kids and mischievous pets in True life HD

  • Support HDMI 1080p output

The DVR is configured the VGA and HDMI(1080p) connector.
You can connect diretly to high-definition televisions,computer monitors,it is so easy and Convenient.

  • View from a TV or PC monitor

A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable,This gives you more connection options while viewing activity captured by your cameras.

  • Advanced Motion Detection Recording

The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events.
You can even ensure that false alarms are avoided by setting the motion detection”mask”to block areas with constant movement.

  • Instant Email Alerts

DVR will send you email automatically if there is any motion detected to keep your home safe and soud.

  • HDMI & Easy USB Back Up

A Built-in USB port gives you the option of backing up and transferring your video footage to a USB flash drive or extremal USB hard drive.

  • Support onvif protocol

  • Supports Multiple Languages

Multi-language menus option up to 28 kinds of Language..

  • Phone one key remote operation

VCR playback remote monitoring through mobile terminals such as PC to watch Alarm and remote control and operation accept.

  • Motion Detection Alarm

When the camera to shoot someone stealing your belongings,will send photos via email to your phone,so So you are not at home,peace of mind…

  • H.264 HD Video Compression

Compared with other existing video coding standards,Provide better image quality under the same broadband.

  • Multiple Viewing options

Can support PC and TV monitoring with VGA or BNC cable.
Support VGA Output& HDMI Output.

NOTICE: This camera must be connected via AHD DVR.Thank you .

Best choice for project reconstruction!!You can upgrade an existing analog security system

to 1.0MP/1.3MP/2.0MP HD camera system without changing cable routes.

1) Applying high performance sensor, the image is clear and delicate

2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion

3) Analog HD 1080P @AHD video output

4) Transmission distance up to 500 meters

5) Support ultra low illumination

6) Support automatic electronic shutter function, adapting different monitoring environment

7) IR distance : 40 meters

8) Camera lens choices : 3.6mm

IR Cut Filter Provides accurate color reproduction in all lighting conditions.

See more details with 3.6mm/6mm lens

Day & Night Monitoring with Built-in IR-Cut filter

IP66 Professional outdoor weatherproof

Indoor/Outdoor Applicable(Camera performs both in outdoor and Indoor applications).

16CH AHD 1080N DVR Specifications

Main chip HI3531
Systems Operating system Embedded LINUX operating system
System resource Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Interface Operation interface 16bit real color GUI interface support mouse operation
Display screen 1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode)
Video Video standard PAL(625 line,50f/s);NTSC(525 line,60 f/s)
Image encode H.264(Main Profile);
Monitor quality Monitor :AHD/960H/D1;VGA:High definition;HDMI:High definition
Playback quality AHD/720P/960H/D1/HD1/CIF/QCIF
Recording 16CH AHD-NH 1080N
Playback 16CH AHD-NH 1080N
Multi-mode video input Analog input:16*AHD 1080N
Hybrid input:8*AHD 1080N+8*960P
Digital input:8*1080P/16*960P
Motion detection Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
Audio Audio compression G711A
Bidirectional talk support
Record and playback Record mode manual>alarm>motion detection>timing
Local playback 1-16ch playback synchronously (take local analog input for example, other is depended on the selected channel mode)
Video search Time, date, event, channel search
Storage and back up Space occupation Video:CIF 4~5G/day*channel, D1 16~20G/day*channel;
Audio:691.2M/day*channel
Video storage Local HDD, Network
Back up mode Network backup, USB portable HDD, USB imprint, SATA imprint
Interface Video input 16ch BNC(1.0Vp-p,75)
Video output 1ch VGA,1ch HDMI 1080P
Loop output optional
Audio input 2ch RCA(200-2800mV,30K)
Audio output 1ch RCA(200-3000mV,5K)
Alarm input N/A
Alarm output N/A
Network port RJ45 10M/100M self-adaptive Ethernet port
PTZ control 1 RS485;support multi kinds of PTZ protocol
USB port 2*USB2.0
HDD port 1*SATA ports(Each support 4,000GB)
Wireless port 3G, WIFI( extension via USB port)
usb mouse yes
remote control yes
Other Power 12V/2A
Consumption <15W(not including HDD)
Operation Environment -30C~+55C/ 10%-90%(H)/ 86kpa-106kpa(A)
Dimension 255*235*45mm
Weight 2KG without hard disk

HD AHD 1080P Camera Specifications

Sensor 1/3″inch IMX322
Signal System PAL/NTSC
Video Standard AHD
DSP NVP2431H
Camera type High performance AHD Camera
Effective Pixel PAL : 1920*1080@25fps NTSC : 1920*1080@30fps
Active Pixel 1920*1080
Resolution 2.0 Mega Pixel 1080P
Video output AHD/CVBS||PAL/NTSC
Minimum Illumination 0.01Lux(F1.2)
Gama adjust 0.45
Lens 3.6mm
IR LEDs Amount 36pcs infrared LEDs
IR-CUT Auto switch
IR Distance 40M
Electric Shutter 1/53~1/100000s
S/N Ratio 50dB(min)(AGC closed)
3D-NR OFF/LOW/MID/HIGH
2D-NR OFF/LOW/MID/HIGH
HLC Support
WHITE Balance ATW/AWC-SET/Indoor/Outdoor/MANUAL
AGC Level 0-15
D-WDR Auto
IP66 YES
Day/Night Auto,Color,B/W,Ext
Power Supply DC 12V
Power Dissipation 300mA
Operation Temperature Temperature -25°F~122°F / -32°C ~60°C,Humidity less than 85%RH
Dimension 18.4(L)*6.5(H)CM

Note: If need us declare a low value of invoice for customs duty, pls leave us a message and tell us how much it’s better for your order, thanks for your cooperation.

We will send the goods out within 3 working days after your payment is verify by Aliexpress.

Currently, almost all products in our store are free shipping. Single camera via China post air mail as default. For DVR and security system, we support different logistics way to different countries. Please check the details on product description page.

Tracking No. will be provided within 2 business days after the shipment.

Buyers are responsible for additional COD charges, VAT, Brokerage Fees, Duty, or Customs Fees and Taxes.

If the products are detained by customs after the shipment has been left the seller’s country, the buyer is resonsible for clearance of the items.

We strive our best to provide you the most reliable, affordable way of shipping service. But sometimes it is highly depended on the shipping courier and local customs. If you do not receive your item on time, please contact us immediately for further assistance.

Warranty:

All merchandise we sell are in good quality and under strict examination before they are shipped out. We will try our best to avoid any quality problem.

We warrants this product against defects in workmanship and material for a period of 3 years from it’s original purchase date.

Any unit which proves defective during the warranty validation period will be repaired without charge for parts or replaced. The end user is responsible for all freight charges incurred to send the products to our repair center. The warranty does not cover any incidental, accidental or consequential damages arising from the use of. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party.

Return:

Item could be returned for refund or replacement within 30 days from the date you receive it. Returned merchandise must be unused, in original packaging and include all accessories. Original shipping costs are not refundable.

Before sending back any return items, please contact with us for a a Return Merchandise Authorization (RMA). Any products returned to seller without an RMA will be void, and we will be sent back to the buyer at his/her expense. Customer should be responsible for all charges of returning and reshipping.

Return tracking number will be helpful to this process.

Our tech support will deal with the repaired products upon receipt of your return parcel. Please feel free to contact us for any product or service issues

We appreciate your business greatly. If you are satisfiated with our products and service, please leave us a Positive feedback and 5 Stars rating. Your recognition will make us more confident to develop our business and serve you better.

If you are not satisfied by any reason, please feel free to contact us through AliExpress message center before leaving negative feedback. Our customer service and tech support will do our best to offer you a proper solution.
