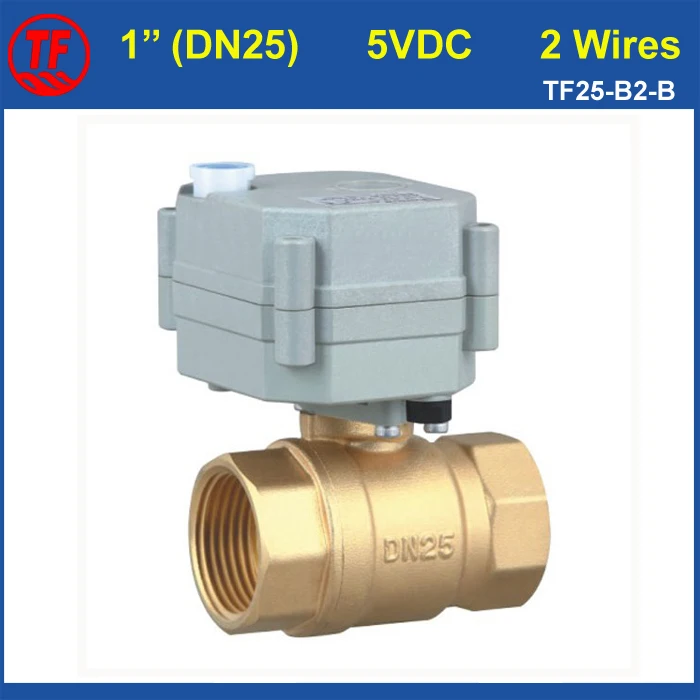

NPT/BSP Brass Valve 1” (DN25) DC5V 2 Wires Motorized Ball Valve With Manual Override For HVAC Water Application
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Welcome to Our Store!
******************************************************************************************
1, Factory directly sales. We need 3-5 days for production.
2, Reply buyer’s questions within 8-24 hours.
3, 100% Chinese brand new and 1 year quality warranty.
****************************************************************************************
|
Model No.: TF25-B2-C |
Brand: TF |
|
Valve Size: DN25 (1”) |
Voltage: DC5V |
|
On/Off Time: 5 Sec |
Pressure: Max 1.0Mpa |
|
Control Wiring: CR201 Wiring |
|
**************************************************************************************** WIRING DIAGRAMS:
**************************************************************************************** Description: Product size: BSP/NPT 1″, DN25 Valve Body Material: Brass Working Voltage: DC5V Open/close Time: 5Sec Wiring Control Methods: CR2 01 Wiring (2 Wires) Maximum Working Pressure: 1.0MPa Circulation Medium: Fluid, Air Working Current: ≤80MA (500 mA shown on the lable means the minimum current of external power) Life time: 100,000 times Actuator Material: Engineering Plastics Sealing Material: EPDM & PTFE Actuator Rotation: 90° Max. Torque Force: 2 N.M Cable Length: 0.5m Environment Temperature: -15°~50° Liquid Temperature: 0°~95° Manual Override:Yes Indicator: Yes Protection Class: IP67 **************************************************************************************** Demention Drawing:
****************************************************************************************
Applications:
HVAC
Fan coil
Central Air conditional System
Water Heter
solor Water heating
Water treatment
water automatic control Equipment
Replacing solenoid valve,particularly when solenoid cannot work reliably
****************************************************************************************
