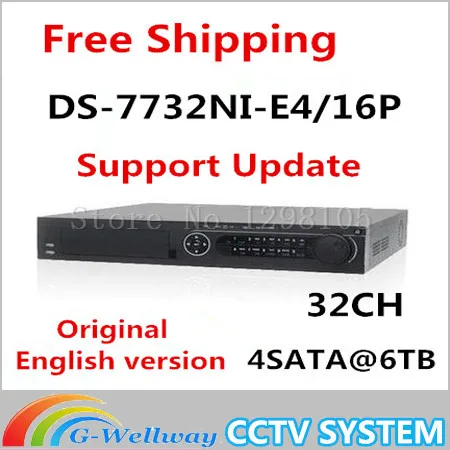

Original English Version DS-7732NI-E4/16P 32CH 16 POE NVR IP Camera Network Video Recorder Support Frmware Upgrade

Original English Version DS 7732NI E4 16P 32CH 16 POE NVR IP Camera Network Video Recorder
Click to see details
Original English Version DS 7732NI E4 16P 32CH 16 POE NVR IP Camera Network Video Recorder
60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $645.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

USD 115.00/pieceUSD 144.00/pieceUSD 159.99/pieceUSD 276.00/pieceUSD 138.00/pieceUSD 276.00/pieceUSD 153.00/pieceUSD 279.00/piece

In stock DS-7732NI-E4/16P 32ch NVR for IP CCTV camera with 4SATA interfaces POE NVR

Remote view via: PC, Mac, iPhone, Android

445 × 390 ×70 mm (W x D x H)

HDMI and VGA output at up to 1920×1080P resolution

Alarm I/O

2 × USB 2.0 + 1 × USB 3.0

Audio Out16 X PoE Ports

Max 200Mbps

Max 16TB (32TB without DVR-RW)

32CH IP video input Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO. l Up to 32 network cameras can be connected. l Support live view, storage, and playback of the connected camera at up to 5 megapixels resolution. l Simultaneous HDMI and VGA at 1920 × 1080 resolution. l New GUI and support starting record with one key. l Redundant recording, holiday recording and capture schedule configuration. l Realize instant playback for assigned channel during multi-channel display mode. l Up to 16-ch synchronous playback at 4CIF resolution. l Smart search for the selected area in the video. l Customization of tags, searching, and playing back by tags. l Locking and unlocking record files. l Support HDD quota and group modes; different capacity can be assigned to different channel. l Up to 4 SATA hard disks and 1 eSATA disk (optional) can be connected, for both recording and backup. l 2 self-adaptive 10M/100M/1000M network interfaces, with working modes configurable: multi-address, load balance, network fault tolerance, etc. l Support Hikvision DDNS (Dynamic Domain Name System); Support network detection, including network delay, packet loss, etc.

IP video input: | 32-ch
Two-way audio input: | 1-ch, BNC(2.0 Vp-p, 1k)
Incoming bandwidth: | 200Mbps
Outgoing bandwidth: | 160Mbps
Remote connection: | 128
CVBS Output: | 1-ch, BNC(1.0Vp-p, 75)
Resolution: 704×576(PAL); 704×480(NTSC)
HDMI Output: | 1-ch, resolution: 1920*1080P/60Hz, 1920*1080P/50Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: | 5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: | 2-ch, BNC(Linear Electrical Level, 600)
Synchronous Playback: | 16-ch
Live view / Playback: | 5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Capability: | 16-ch720P, 8-ch1080P
SATA: | 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
Interface Type: | 1 eSATA interface
Capacity: | Up to 4TB capacity for each HDD
Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface: | RS-232, 1 RS-485, Keyboard
USB Interface: | 3, USB2.0
Alarm In: | 16-ch
Alarm Out: | 4-ch
Interface: | 16 independent 100 Mbps PoE network interfaces
Max. Power: | 200W
Supported Standard: | AF and AT
Power Supply: | 100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz
Consumption(without hard disk and POE): | 45W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 19-inch rack-mounted 1.5U chassis
Dimensions: | 445 × 390 ×70 mm ( 17.5″ × 15.3″ × 2.8″)
Weight(without HDD): | 4 Kg (8.8 lb)
