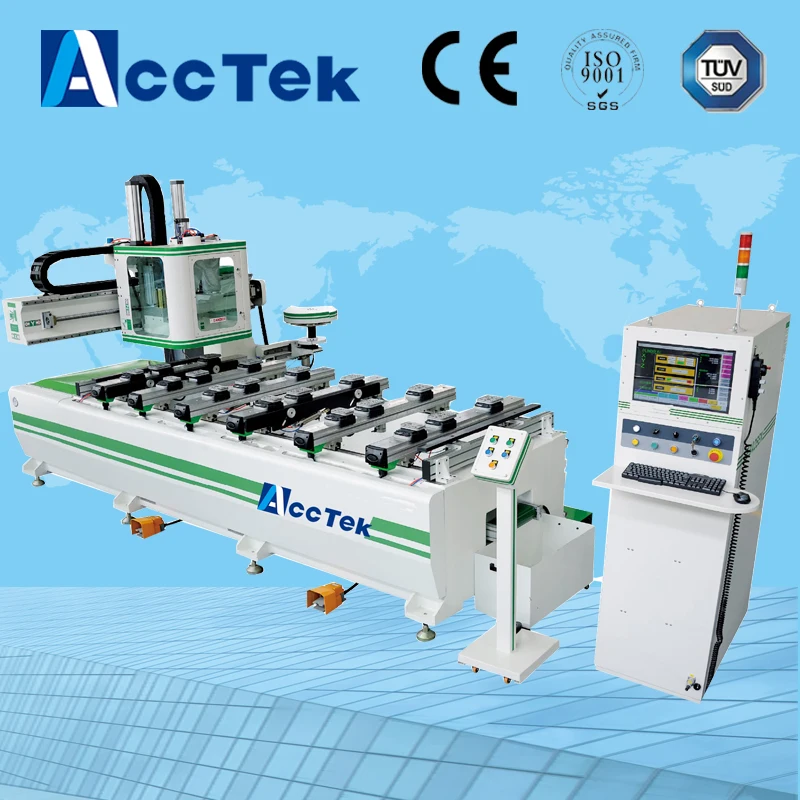

PTP Working center multifunctional CNC milling machines for wood

Construction: Whole machine table adopts high strength thick steel pipe welded. Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.

Spare parts: Features world top class mechanical and electronic components, e.g. German rack and pinion, Taiwan rail and ball screw, Taiwan reducer, French Schneider electrical components, which guarantee stable performance and high quality.

Precision: Excellent spare parts, accurate precision detection instrument, which make sure the machine with perfect location and working precision.

High-speed: Adopt reducer direct design, high torque, high energy, X axis dual motor drive, runs smoothly with high efficiency.

Table: Vacuum workable fitted with aluminum alloy bars and suction cups can be set flexibly according to the size of wokpiece, and convenient to unload workpiece.

Tool magazine: With an 8-slots Carousel tool changer, tool changes to be performed quickly.

CNC Router Applications:

Woodworking Industry: Ideally suitable for panel furniture,furniture decoration, musical instruments, wooden crafts, solid wood furniture,MDF paint-free door, wood composite door,

cabinet, kitchen doors, windows, night table, etc.

CNC Router Main technical parameters:

AK-1330D

Table area

1300*3000mm

Working area

1300*3100*300(mm)

Travelling speed

70 m/min

Cutting speed

20 m/min(MAX)

Spindle parameters

HSD air cooling 9.0KW 24000rpm,Automatic tool change

Controller OS

SYNTEC

Driving system

YASKWA

Working voltage

AC380V/3PH/50HZ

Electrical accessories

Taiwan Delta VFD/French Schneider Low voltage electrical components/high quality cable

Driving system

German HERION pinion/Taiwan PMI rail/Taiwan PMI ball screw

Table structure

Germany Schmalz Adsorption+suction cup

Blanking transfer

Belt drive

Driling units

9 Vertical,6 Horizontal,and 1 Saw,Italy imports

Weight

4.2T

Accessories

1

5.5KW vacuum pump

1 set

2

Tool box(including tools<

Detail and samples cnc milling machine for wood

FAQ

If you want to make sure whether this cnc machine for your material, please tell me:

1.What materials do you want to engrave?

Different types cnc machine apply to different material.
2.What’s the max size of your material?(Length *width* thickness)
Once you tell me this information of your material, then I’ll recommend you the most suitable machine and the best price for you. And we can also customize one for you or send you a solution.

This is the first time I use this kind of cnc machine. Is it easy to operate?

Yeah. Don’t worry about this.

1. English guide video and instruction book are sent to you free together with the cnc rotary table.
2. Free training course in our factory. Engineers are also available to serve overseas if necessary.
3. 24 hours technical support by calling, video and email.

How long is the delivery time?
For standard machines, it would be 7-10 days; For non standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

About payment:
We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.

By the way, we can’t make deal on AliExpress, because according to the regulations of AliExpress, the machines only can be sent to buyers by air, and the volume must be very small, the package of our machine is too big. We can make deal by T/T or through alibaba .

After sale service:
1. 1.5 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.

Our company

Jinan AccTek Machinery Co., Ltd was located in high technology industry zone of Jinan,which specializes in manufacturing CNC and laser machines since 2005.

Our produces are wildely sold in many European and American countries. These products are very popular in these markets and have established a leading position in the carving machine field.

After several years of rapid development, our routers have already covered advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts fields. Our routers fproducts well meet the demands of customers in different countries.
