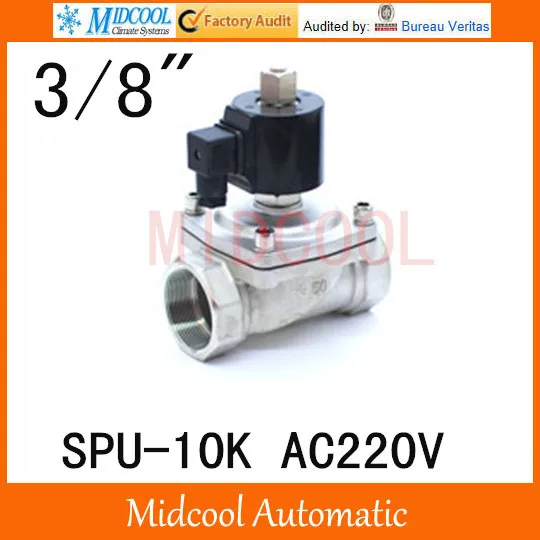

SPU-10K popular type solenoid vale normally open type AC220V 2way 2position port 3/8″
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Free shipping popular type solenoid vale SPU-10K normally open type AC220V 2way 2position
Item specifics
is_customized:Yes
Model:SPU-10K-AC220V
Material:
Pressure: Medium Pressure
Temperature of Media: Medium Temperature
Power: Solenoid
Standard or Nonstandard; Strandard
Structure: Control
Power:11W
Weight:0.7kg
plunger tube:stainless steel 304
shading coil:red copper
Product description
Working Medium: Air,Water,Oil,Gas
Motion Pattern: Direct Drive Type
Type: Normal Open Type
Aperture of Flow Rate: 15mm
CV4.6
Port Size: 3/8″
Operation Fluid Viscosity<20CST
Working Pressure: Air:0-7bar/Water:0-7bar/Oil:0-5Bar
Max. Pressure Resistance: 0-5bar
Voltage Range ±10%
Material Of Body: 2W:stainless steel
Material of Oil Seal: NBR
Temperature grade:H
The coil type:D16011
- characteristic
- Zero pressure start, without the minimum pressure requirements, wide application.The standard plastic sealed waterproof coil.Latest design appearance, compact structure, reliable and durable.A variety of seals are optional.
Voltage:DC12V,DC24V,AC110V,AC220V,you can choose one and message notes.
