TCP/IP two door +powercase access controller kit. include two access Door controller, Finger reader,finger scanner etc.

Fingerprint access control system introduction

• Wiegand Compnay Fingerprint access control system is a high-end networking access control systems,
• Different from fingerprinting machine, it consists a fingerprint reader, fingerprint scanner (OPtional ) , access controller and the software.
• Fingerprint reader instead of the card readers installed at the door, after users scan the fingerprint, door access controller release and door open
• Fingerprint scanner is placed on managers ‘ desktops, it regist the user’s fingerprints. If company have many workers, it’s better use fingerprint scanner,because it’s very quickly and conveniently to regist the fingerprint.
• Compared to a conventional fingerprint + access control, you need to install two software ,All these device user one software,so it’s very easy to

manage these device.

Two door fingerprint access control have 4 sets of different kit :

set 1:

1pcs two door TCP access controller + powercase (default is 220V,if need 110V,pls leave measage)

2pcs finger reader

2pcs button

1pcs software

don’t include switch, like fellow photo.

set 2:

1pcs two door TCP access controller + powercase (default is 220V,if need 110V,pls leave measage)

4pcs finger reader

1pcs software

don’t include switch. like fellow photo.

set 3:

1pcs two door TCP access controller + powercase (default is 220V,if need 110V,pls leave measage)

1pcs finger scanner

2pcs finger reader

2pcs button

1pcs software

don’t include switch. like fellow photo.

set 4:

1pcs two door TCP access controller + powercase (default is 220V,if need 110V,pls leave measage)

1pcs finger scanner

4pcs finger reader

1pcs software

don’t include switch. like fellow photo.

********************************************************************************************************

Tcp IP two door controller parameters:

• Name: two door two-way TCP/IP network access controller
• Model: T02
• Management doors: 2
• Reader number: 4
• Store registration card: 20,000
• Number of records that can be stored: 100,000
• Communications: TCP/IP
• Software: Chinese Simplified English issue
• Software supports database: Access and SQL

********************************************************************************************************

powercase parameters:

• Size: 273mm * 228mm * 65mm
• Power: 30-60W
• Chassis color: black
• Power supply Board color: black
• Output voltage: 12VDC (11-14V can be adjusted)
• Rated current: 3A
• External battery specifications: 7AH 12VDC
• Battery drain protection voltage: 9V

default is 220V,if need 110V,pls leave measage ,the price is same.

********************************************************************************************************

Fingerprint parameters:

• Size: 120mm*72mm*20mm
• Fingerprint capacity: 1000
• Color: Silver
• Operating voltage: DC12V
• Working current: 300mA
• Fingerprint capture resolution: 450DPI
• Fingerprint search time: < 1 seconds
• Fingerprint recognition rate: < 0.001%
• Fingerprints rejected straightforward: < 1%
• Working environment: proposal-20-50 degrees Celsius range,
• used in outdoor sunlight is not recommended environment
• Instructions: light
• Output format (must be connected with 8000 access controller,
• Fingerprint reader to check the door): international standard Wiegand 26bit/34bit
• Communication mode (must be connected to the computer, fingerprint
• communite: TCP/IP

********************************************************************************************************

Fingerprint scanner parameters: (option)

• Size: 120mm*72mm*20mm
• Color: Silver
• Working voltage: DC5V (USB powered)
• Working current: 100mA
• Fingerprint capture resolution: 450DPI
• Working environment: proposal-20-50 degrees Celsius range
• Instructions: light
• Communication mode (placed on the computer desktop, fingerprint): USB

********************************************************************************************************

Exit button parameters: (option)

• Silver aluminum alloy shell, safe and durable.
• Current: 3A, 36V DC
• Contact output: NC\COM
• Applied temperature: -10~+55 Degree14-131F)
• Applied humidity: 0~95% (relative humidity)
• Material: Aluminium alloy Item size: 86 * 50*20cm (L*D* H)
• Item weight: 62g
• Package size: 9 * 5 * 2cm
• Package weight: 65g

********************************************************************************************************

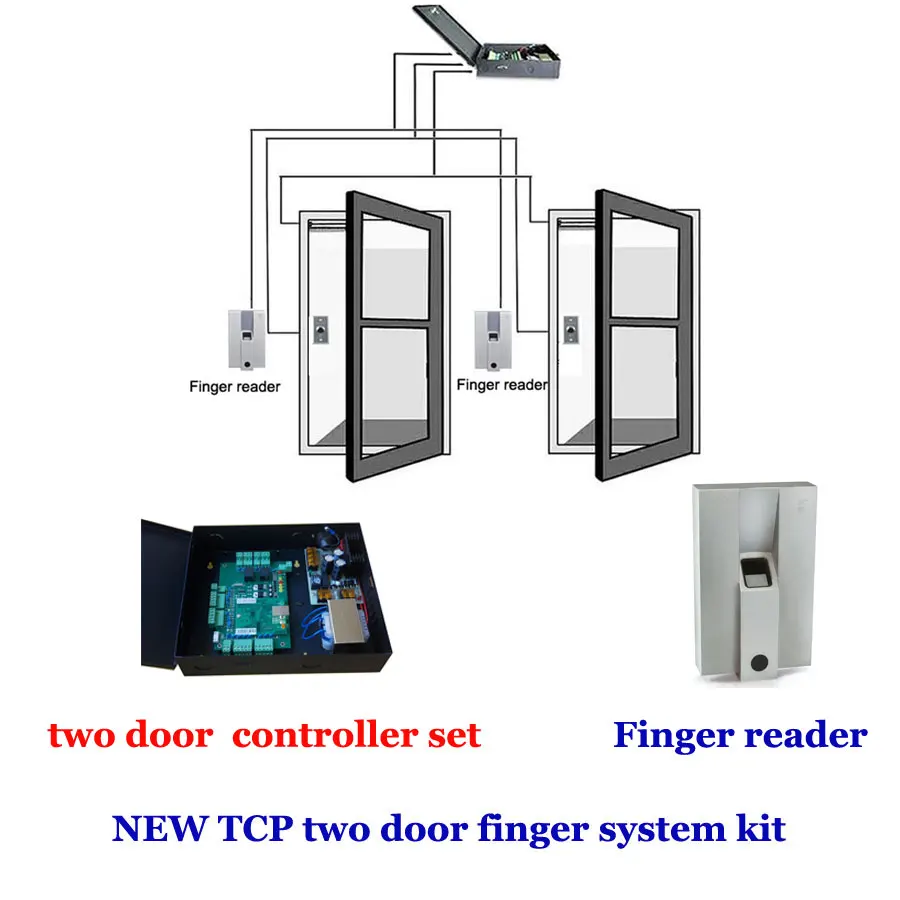

Finger reader connect to Access controller diagram:

********************************************************************************************************

Access controller software screenshot:

********************************************************************************************************

product photos:
